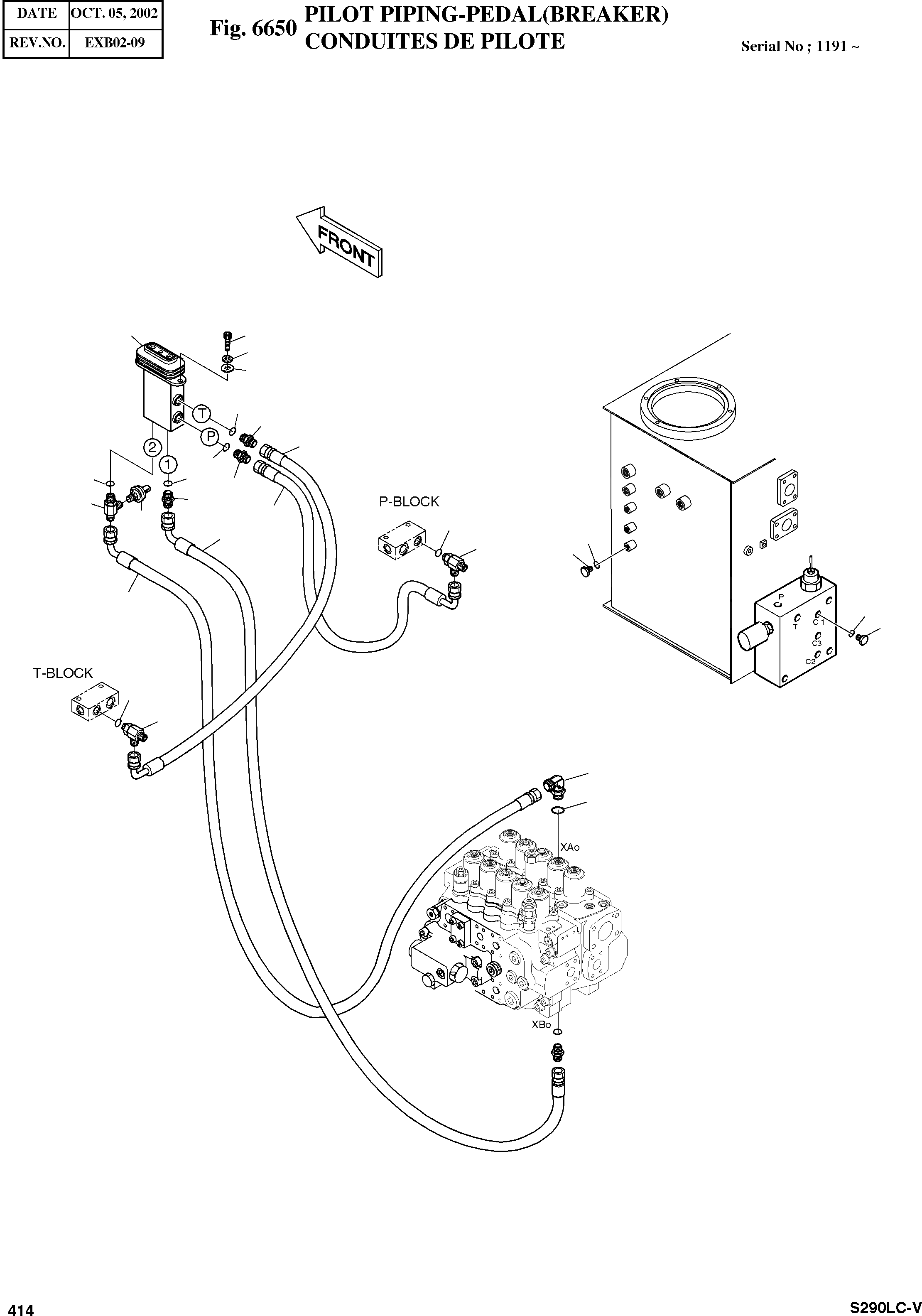

Запчасти Doosan Daewoo PILOT PIPING-PEDAL(BREAKER) OPTION PARTS

-

400-00430

PILOT PIPING-PEDAL(BREAKER)

SERIAL: 1191

-2шт.

1

420-00160

VALVE;PEDAL

SERIAL: 1191-1914

1шт.

1

420-00347

VALVE;PEDAL

SERIAL: 1915

1шт.

2

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1191-1531

2шт.

2

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1532

2шт.

3

S5110601

WASHER;SPRING

SERIAL: 1191-1531

2шт.

3

S5110603

WASHER;SPRING

SERIAL: 1532

2шт.

4

S5010613

WASHER;PLAIN

desc: RONDELLE ELASTIQUE

2шт.

5

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

7

2181-1951D6

TEE PFO3/8-PF3/8-PF1/4

desc: TE

2шт.

8

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

9

2184-1046D69

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1046D166

HOSE PF1/4-370L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D194

HOSE PF1/4-2800L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

13

2181-1702D58

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

14

2181-1950D1

PLUG

desc: BOUCHON

2шт.

15

181-00507

TEE

desc: TE

1шт.

16

549-00010

SWITCH;PRESSURE

desc: INTERRUPTEUR

1шт.
