Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION PARTS

-

2400-2128

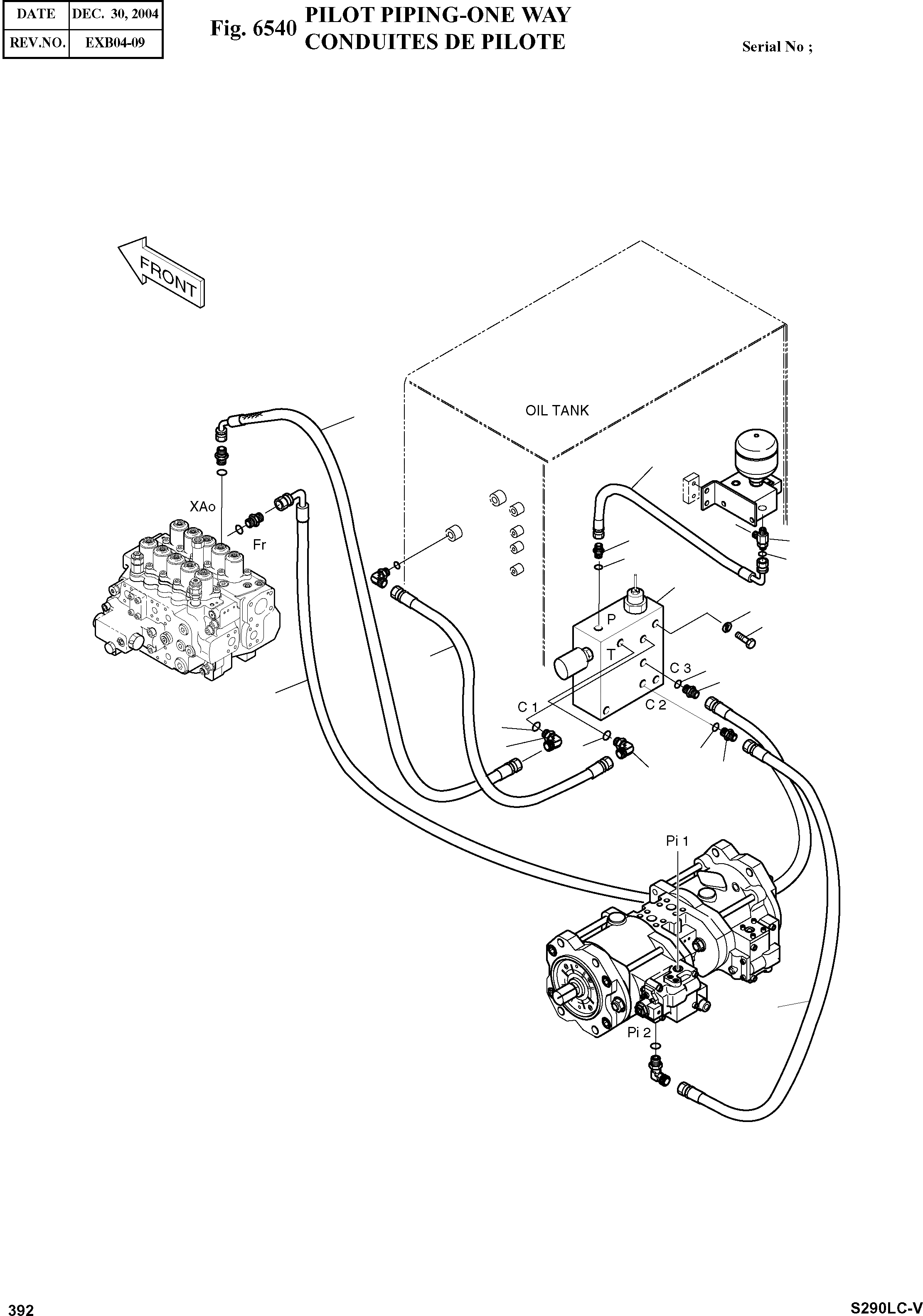

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

SERIAL: 1-2210

1шт.

1

2420-9227C

VALVE;BREAKER

SERIAL: 2211

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

3шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

6

2181-1702D4

ELBOW

desc: COUDE

2шт.

7

2181-2375D5

TEE

desc: TE

1шт.

8

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

9

2184-1045D210

HOSE PF1/4-1040L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1046D188

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D195

HOSE PF1/4-510L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.
