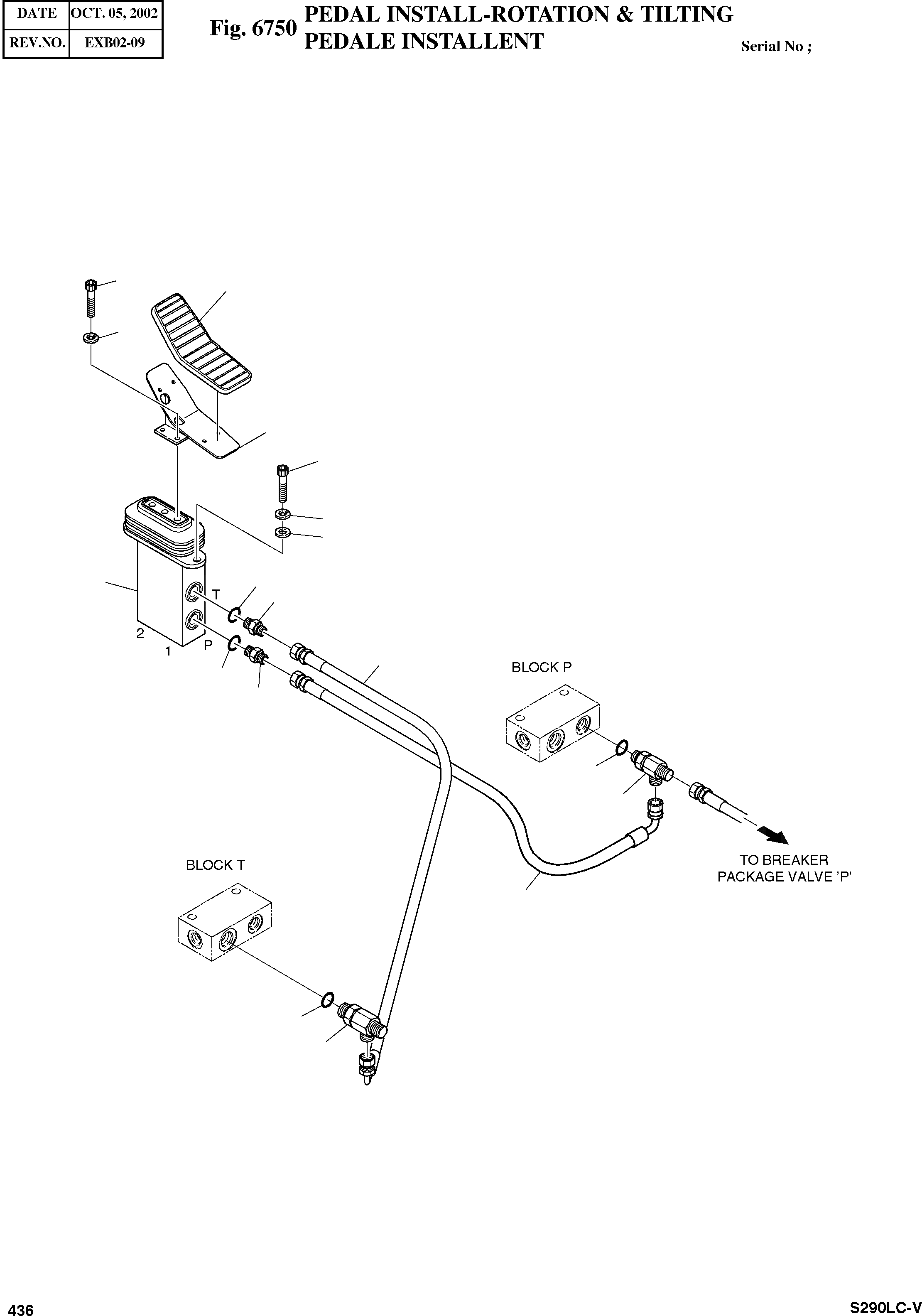

Запчасти Doosan Daewoo PEDAL INSTALL-ROTATION & TILTING OPTION PARTS

-

400-00761

PEDAL INSTALL-ROTATION & TILTING

SC: D

-2шт.

1

420-00160

VALVE;PEDAL

SERIAL: 1001-1914

1шт.

1

420-00347

VALVE;PEDAL

SERIAL: 1915

1шт.

2

2184-1046D69

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1046D166

HOSE PF1/4-370L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1951D6

TEE PFO3/8-PF1/4-PF3/8

desc: TE

2шт.

5

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

2шт.

6

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

7

S5010613

WASHER;PLAIN M10

desc: RONDELLE

2шт.

8

S2211866

BOLT;SOCKET M10X1.5X20

desc: BOULON A 6 PANS CREUX

2шт.

9

2197-1817

BRACKET;PEDAL(R.H)

desc: SUPPORT

1шт.

10

2161-2257

RUBBER;PEDAL

desc: CAOUTCHOUC

1шт.

11

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

13

S8000141

O-RING

desc: JOINT TORIQUE

2шт.
