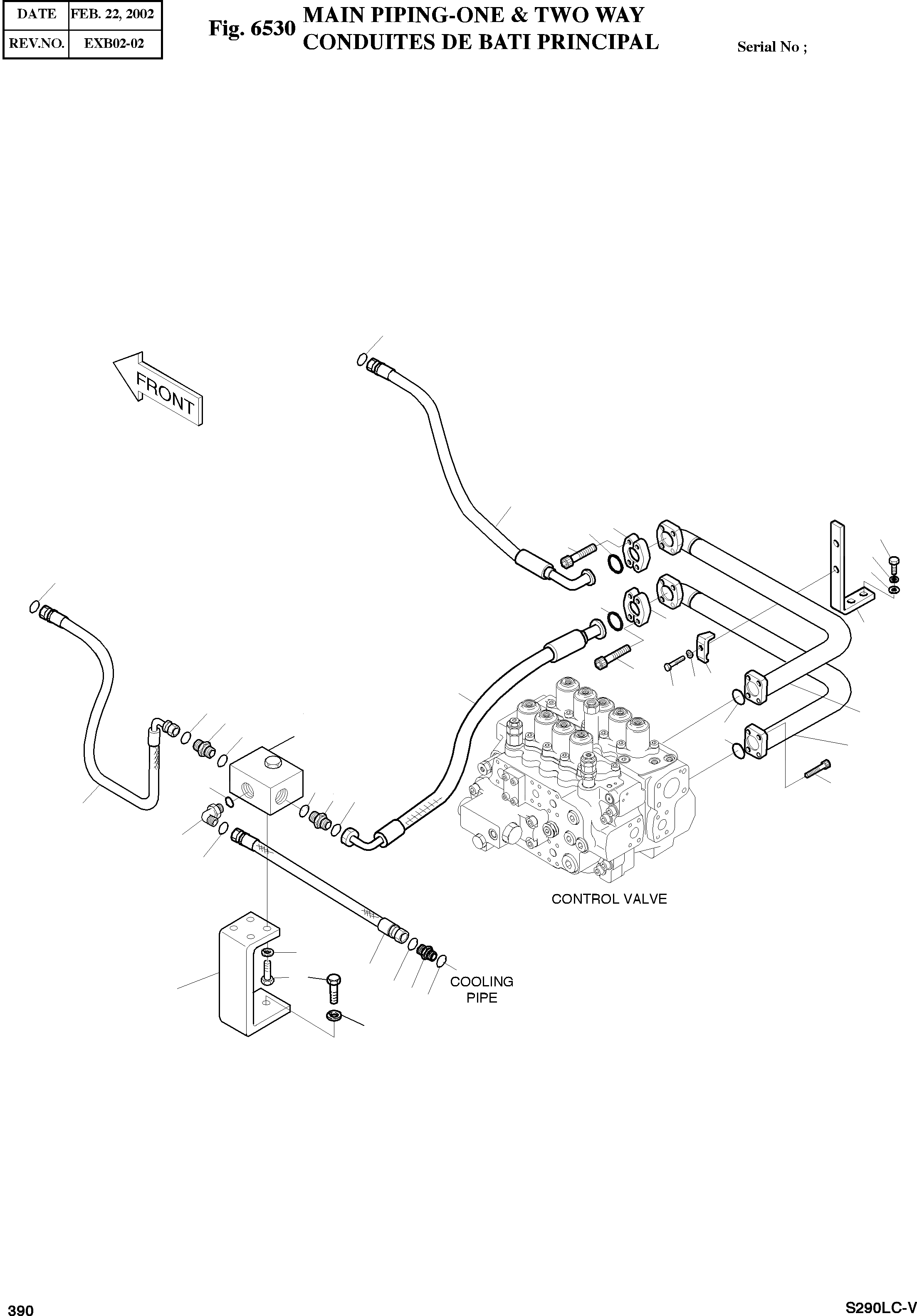

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY OPTION PARTS

-

2400-2129

MAIN PIPING;ONE & TWO WAY

SC: D

-2шт.

1

2197-2673

BRACKET

desc: SUPPORT

1шт.

2

2420-9633

VALVE;SWITCH

SERIAL: 1-1485

1шт.

2

2420-9633A

VALVE;SWITCH

SERIAL: 1486

1шт.

3

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

5

2140-1620A

PIPE

desc: TUYAU

1шт.

6

2140-1667

PIPE

desc: TUYAU

1шт.

7

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

3шт.

8

S8030161

O-RING

desc: JOINT TORIQUE

6шт.

9

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

10

2181-2815D1

ELBOW

desc: COUDE

1шт.

11

2184-1200D52

HOSE PF1-1450L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1212D25

HOSE PF1-1500L

SERIAL: 1-1250

1шт.

12

2184-1212D65

HOSE PF1-1450L

SERIAL: 1251

1шт.

13

2184-1196D75

HOSE PF1-700L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1201D25

HOSE PF1-820L

desc: TUYAU FLEXIBLE

1шт.

15

2197-2545A

BRACKET

desc: SUPPORT

1шт.

16

2124-1026D3

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

17

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

2шт.

18

S0560453

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

19

2114-1058D30

WASHER;PLAIN

desc: RONDELLE

2шт.

20

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1-1531

16шт.

20

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1532

16шт.

21

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

22

2181-9083

FLANGE;SPLIT

desc: FLASQUE

4шт.
