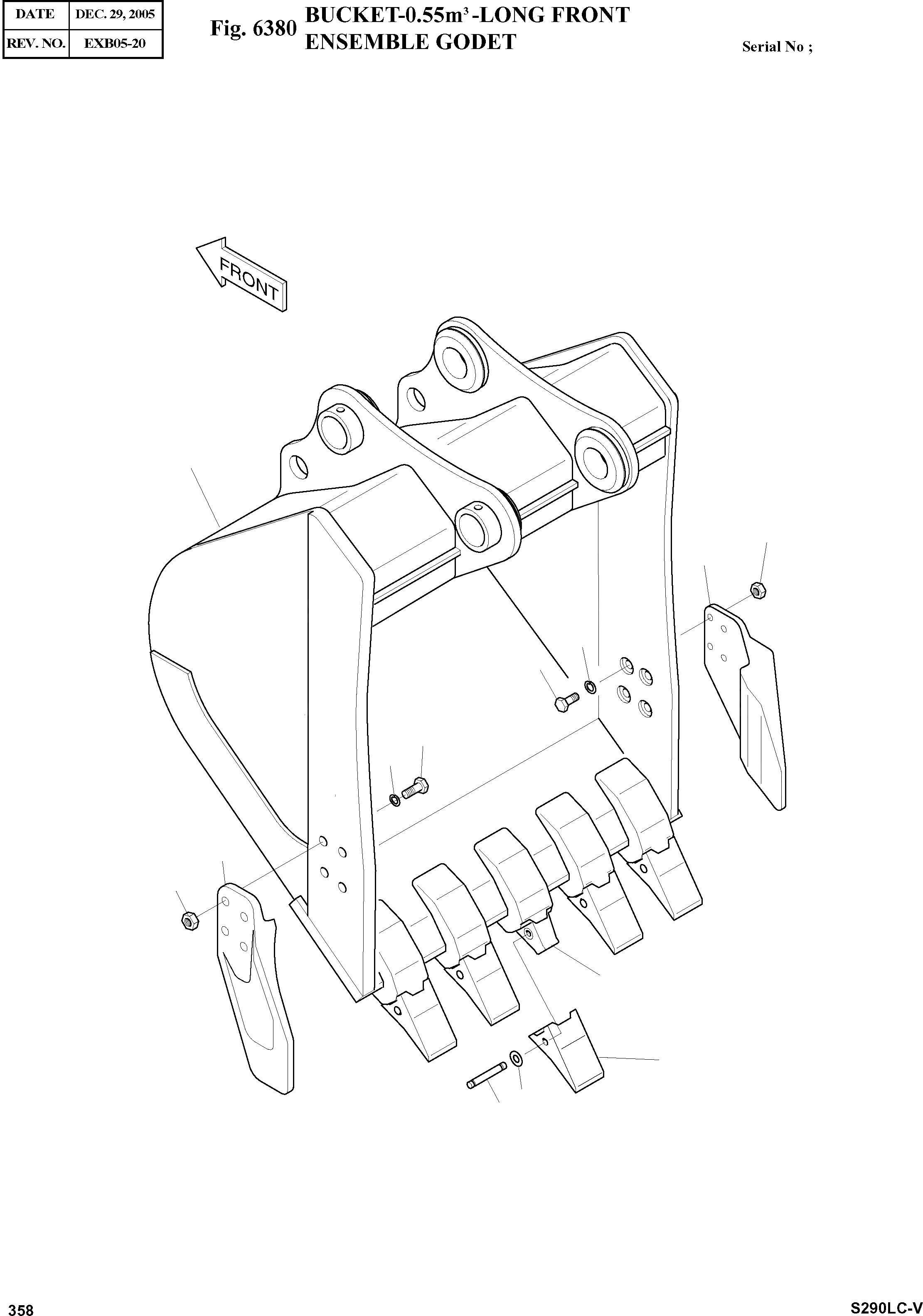

Запчасти Doosan Daewoo BUCKET-0.55§©-LONG FRONT OPTION PARTS

-

2704-1382G

BUCKET SUB ASS'Y-0.55§©

SERIAL: 1-1215

1шт.

-

2704-1382H

BUCKET SUB ASS'Y-0.55§©

SERIAL: 1216

1шт.

1

-

BUCKET;WELD-0.55§©

SERIAL: 1-1215

1шт.

1-1

2713-1222A

ADAPTER;TOOTH

desc: . RACCORD

5шт.

2

2713-1221A

POINT;TOOTH

desc: DENT

5шт.

3

2705-1022

PIN;TOOTH

desc: BROCHE DE BLOCAGE

5шт.

4

2114-1859

WASHER;LOCK

desc: RONDELLE

5шт.

5

2713-1228

CUTTER;SIDE(R)

SERIAL: 1-1215

1шт.

5

2713-1228A

CUTTER;SIDE(R)

SERIAL: 1216

1шт.

6

2713-1229

CUTTER;SIDE(L)

SERIAL: 1-1215

1шт.

6

2713-1229A

CUTTER;SIDE(L)

SERIAL: 1216

1шт.

7

S0570061

BOLT M20X2.5X60

SERIAL: 1-1215

8шт.

7

S0574561

BOLT M24X3.0X60

SERIAL: 1216

8шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-1215

8шт.

8

S4013333

NUT M24X3.0

SERIAL: 1216

8шт.

9

2114-9012

WASHER;HARDEN

SERIAL: 1-1215

8шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 1216

8шт.
