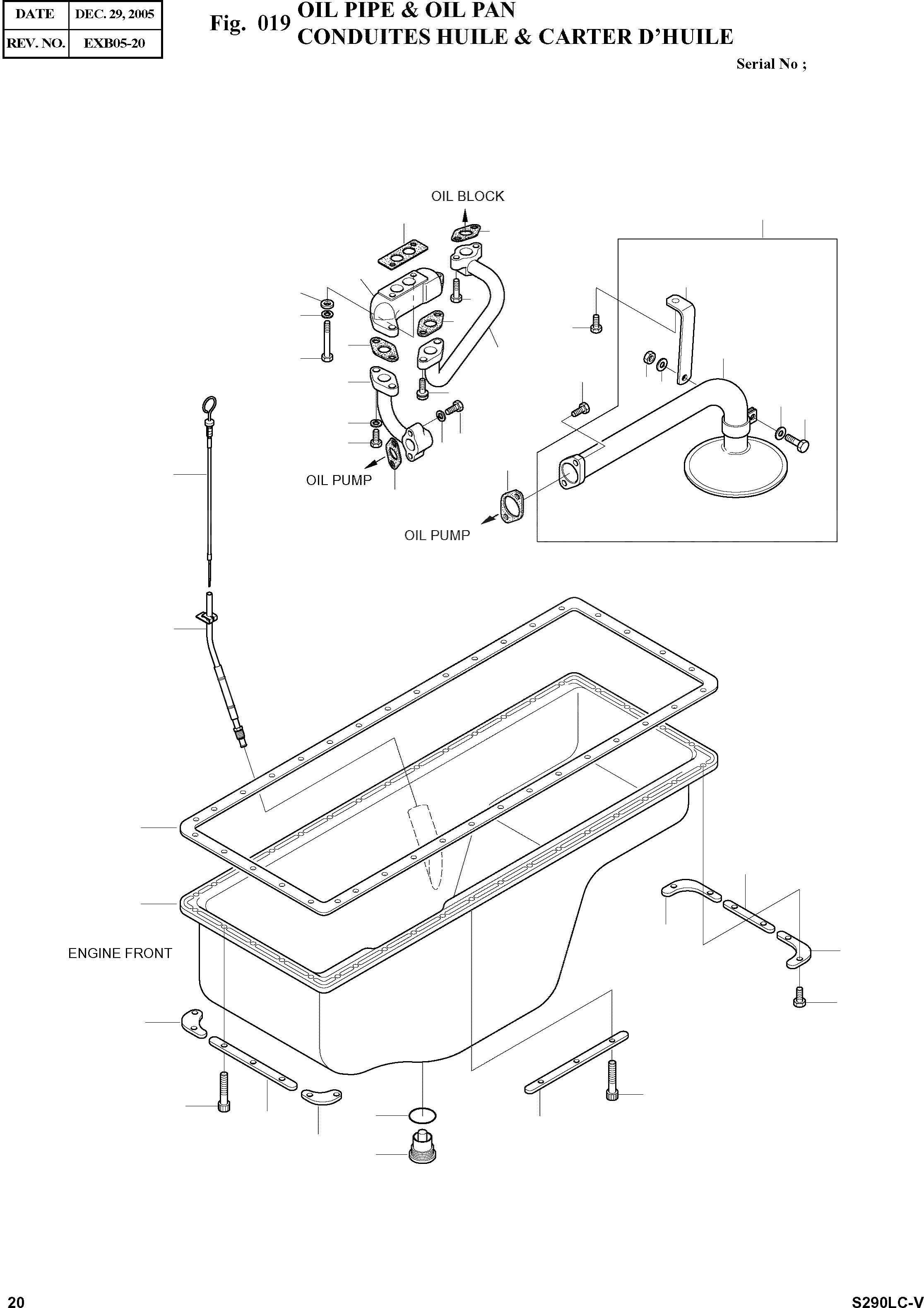

Запчасти Doosan Daewoo OIL PIPE & OIL PAN ENGINE PARTS

23
23A
20
1-1
27
1
15
12
16
2
17
18
12
3
12
19
9
11
7
5
5
6
13
14
14
13
10
36
12
41
25
29
24
28
28
33
26
32
31
34
27
26
35

Артикул

Название

Примечание

Количество

1

65.05701-6039B

OIL SUCTION PIPE ASS'Y

desc: ENSEMBLE CONDUITE ASPIRATION D'HUILE

1шт.

1-1

65.05701-5203B

OIL SUCTION PIPE ASS'Y

desc: . ENSEMBLE TUBE D'ASPIRATION D'HUILE C

1шт.

2

65.05740-0015

HOLDER;OIL SUCTION PIPE

desc: . SUPPORT DE TUBE D'ASPIRATION D'HUILE

1шт.

3

06.01923-3111

BOLT;HEX. M8X16

desc: BOULON A 6 PANS

1шт.

5

06.15010-2311

WASHER

desc: . RONDELLE

2шт.

6

06.01283-7114

BOLT;HEX. M18X1.25X22

desc: . BOULON A 6 PANS

1шт.

7

65.90510-0012

NUT;CLEVER M8

desc: . ECROU DE BLOCAGE

1шт.

9

06.01923-3113

BOLT;HEX. M8X1.25X20

desc: BOULON A 6 PANS

2шт.

10

65.96601B0019

GASKET;OIL SUCTION PIPE

desc: JOINT(TUBE D'ASPIRATION D'HUILE)

1шт.

11

65.05701-5153

OIL PIPE ASS'Y

desc: ENSEMBLE CONDUITES D'HUILE

1шт.

12

65.96601-0050

GASKET OIL PUMP FLANGE

desc: JOINT(BRIDE CONDUITE D'HUILE)

4шт.

13

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

14

06.01283-7113

BOLT;HEX. M8X1.25X20

desc: BOULON A 6 PANS

4шт.

15

65.05903B0003

GASKET;FLANGE

desc: JOINT(BRIDE DE RACCORDEMENT)

1шт.

16

65.05715-5001

CONNECTING FLANGE ASS'Y

desc: ENSEMBLE BRIDE DE RACCORDEMENT

1шт.

17

06.15010-2311

WASHER

desc: RONDELLE

2шт.

18

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

19

06.02090-0422

BOLT;SOCKET HEAD

desc: BOULON A 6 PANS CREUX

2шт.

20

65.05701-5230

OIL PIPE ASS'Y

desc: ENSEMBLE CONDUITE D'HUILE

1шт.

23

65.90001-6006

BOLT;SOCKET HEAD M8X25

desc: BOULON A 6 PANS CREUX

2шт.

23A

06.01923-3113

BOLT A'SSY M8X20

desc: BOULON A 6 PANS

2шт.

24

65.05801-5194

OIL PAN ASS'Y

SERIAL: 010202

1шт.

24

65.05801-5194A

OIL PAN ASS'Y

SERIAL: 010203

1шт.

25

65.05904A0016

GASKET;OIL PAN

desc: JOINT DE CARTER D'HUILE

1шт.

26

65.05809-0014

WASHER OIL PAN(FRONT)

desc: RONDELLE

2шт.

27

65.05809-0012

WASHER;OIL PAN(SIDE)

desc: RONDELLE

9шт.

28

65.05809-0013

WASHER;OIL PAN(REAR)

desc: RONDELLE

2шт.

29

65.05809-0037

WASHER;OIL PAN(REAR)

desc: RONDELLE

1шт.

31

65.90001-6006

BOLT;SOCKET HEAD M8X20

desc: BOULON A 6 PANS CREUX

10шт.

32

65.90001-6005

BOLT;SOCKET HEAD M8X25

desc: BOULON A 6 PANS CREUX

2шт.

33

06.01913-3115

BOLT;HEX. M8X1.25X25

desc: BOULON A 6 PANS

25шт.

34

06.56190-0732

RING;SEAL

desc: CONTACT DE NIVEAU D'HUILE

1шт.

35

65.90310-5004A

DRAIN PLUG

ICA: Y

1шт.

35

65.90310-0144

DRAIN PLUG M30X1.5

desc: ENSEMBLE BOUCHON DE VINDANGE

1шт.

36

65.05805-5186

GAUGE;OIL LEVEL

SERIAL: 990601

1шт.

36

65.05805-5186A

GAUGE;OIL LEVEL

SERIAL: 030829

1шт.

36

65.05805-5211

GAUGE;OIL LEVEL

SERIAL: 050630

1шт.

36

65.05805-5211A

GAUGE;OIL LEVEL

SERIAL: 050631

1шт.

41

65.05806-5096

TUBE;GUIDE

SERIAL: 000620

1шт.

41

65.05806-5096A

TUBE;GUIDE

SERIAL: 000621

1шт.

Выбрано товаров: 40
