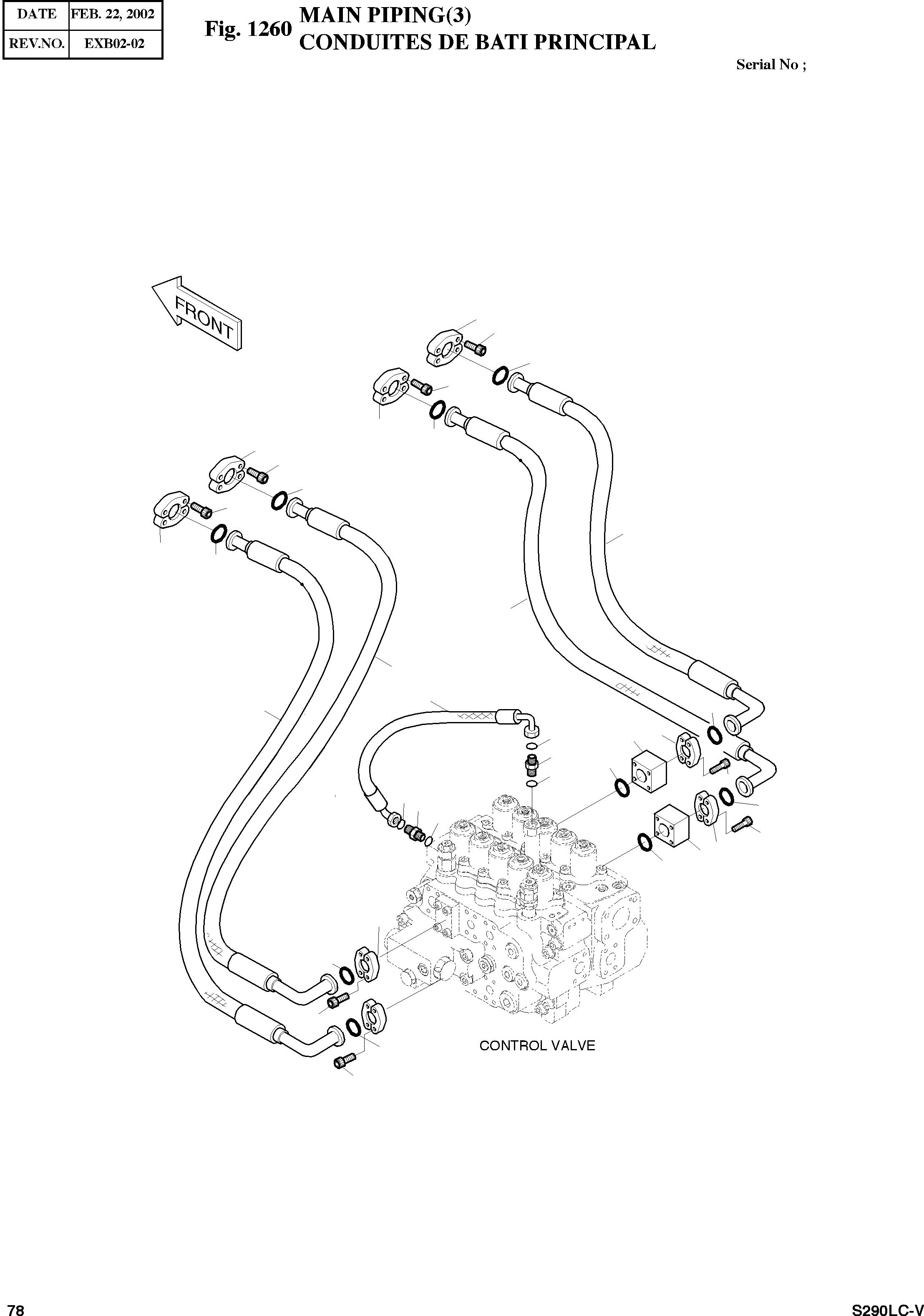

Запчасти Doosan Daewoo MAIN PIPING(3) BODY PARTS

-

2400-1774A

MAIN PIPING

SC: D

-2шт.

6

2180-1026D19

O-RING

desc: JOINT TORIQUE

10шт.

8

2181-2614

BLOCK;SPACER

desc: BLOC

2шт.

13

2184-1250D37

HOSE PF1-1950L

SERIAL: 1-320

1шт.

13

2184-1100D131

HOSE PF1-1950L

SERIAL: 321-1250

1шт.

13

2184-1100D37

HOSE PF1-1900L

SERIAL: 1251

1шт.

14

2184-1198D30

HOSE UNF13-16-520L

SERIAL: 1-249

1шт.

14

2184-1198D45

HOSE PF1-940L

SERIAL: 250

1шт.

16

2184-1250D31

HOSE PF1-1850L

SERIAL: 1-320

1шт.

16

2184-1100D41

HOSE PF1-1850L

SERIAL: 321-1250

1шт.

16

2184-1100D248

HOSE PF1-1800L

SERIAL: 1251

1шт.

19

2184-1250D31

HOSE PF1-1850L

SERIAL: 1-320

1шт.

19

2184-1100D41

HOSE PF1-1850L

SERIAL: 321-1250

1шт.

19

2184-1100D248

HOSE PF1-1800L

SERIAL: 1251

1шт.

20

2184-1250D32

HOSE PF1-1750L

SERIAL: 1-320

1шт.

20

2184-1100D16

HOSE PF1-1750L

SERIAL: 321-1250

1шт.

20

2184-1100D89

HOSE PF1-1700L

SERIAL: 1251

1шт.

25

2181-9083

FLANGE;SPLIT

desc: FLASQUE

8шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1-1531

24шт.

26

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1532

24шт.

32

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

33

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

37

2181-4133D3

ADAPTER PF1/2-UNF13/16-16

desc: RACCORD

1шт.

39

S2213061

BOLT;SOCKET M10X1.5X70

SERIAL: 1-1531

8шт.

39

S2213066

BOLT;SOCKET M10X1.5X70

SERIAL: 1532

8шт.

40

S8000181

O-RING

REP_PNO: 8202-014

2шт.

43

2181-4133D3

ADAPTER PF1/2-UNF13/16-16

desc: RACCORD

1шт.
