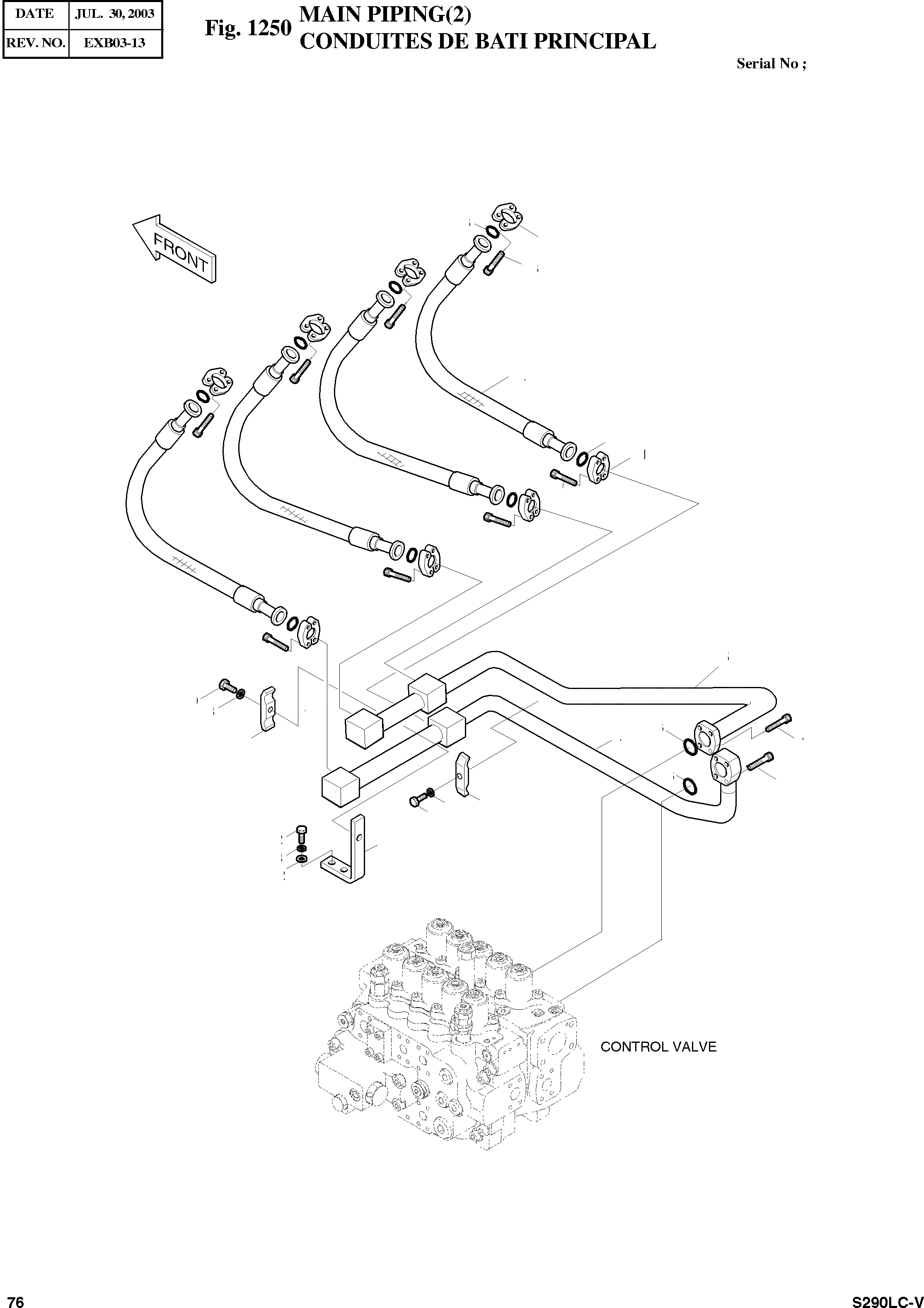

Запчасти Doosan Daewoo MAIN PIPING(2) BODY PARTS

-

2400-1774A

MAIN PIPING

SC: D

-2шт.

2

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.

3

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

4

2140-1369

PIPE

desc: TUYAU

1шт.

5

2140-1370

PIPE

SERIAL: 1-940

1шт.

5

2140-1370A

PIPE

SERIAL: 941

1шт.

6

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

7

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1-1531

4шт.

7

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1532

4шт.

9

2124-1025D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

10

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

2шт.

11

2891-1385

PLATE

SERIAL: 1-249

1шт.

11

2891-1385A

PLATE

SERIAL: 250

1шт.

12

2114-1058D30

WASHER

desc: RONDELLE

2шт.

15

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1-1531

16шт.

15

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 1532

16шт.

24

2184-1081D115

HOSE PF1-PF3/4-985L

desc: TUYAU FLEXIBLE

4шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1-1531

16шт.

26

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1532

16шт.

30

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

31

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

33

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

45

S2212761

BOLT;SOCKET M10X1.5X55

SERIAL: 1-1531

4шт.

45

S2212766

BOLT;SOCKET M10X1.5X55

SERIAL: 1532

4шт.
