Запчасти Doosan Daewoo LUBRICATION PIPING FRONT PARTS

-

2400-1824A

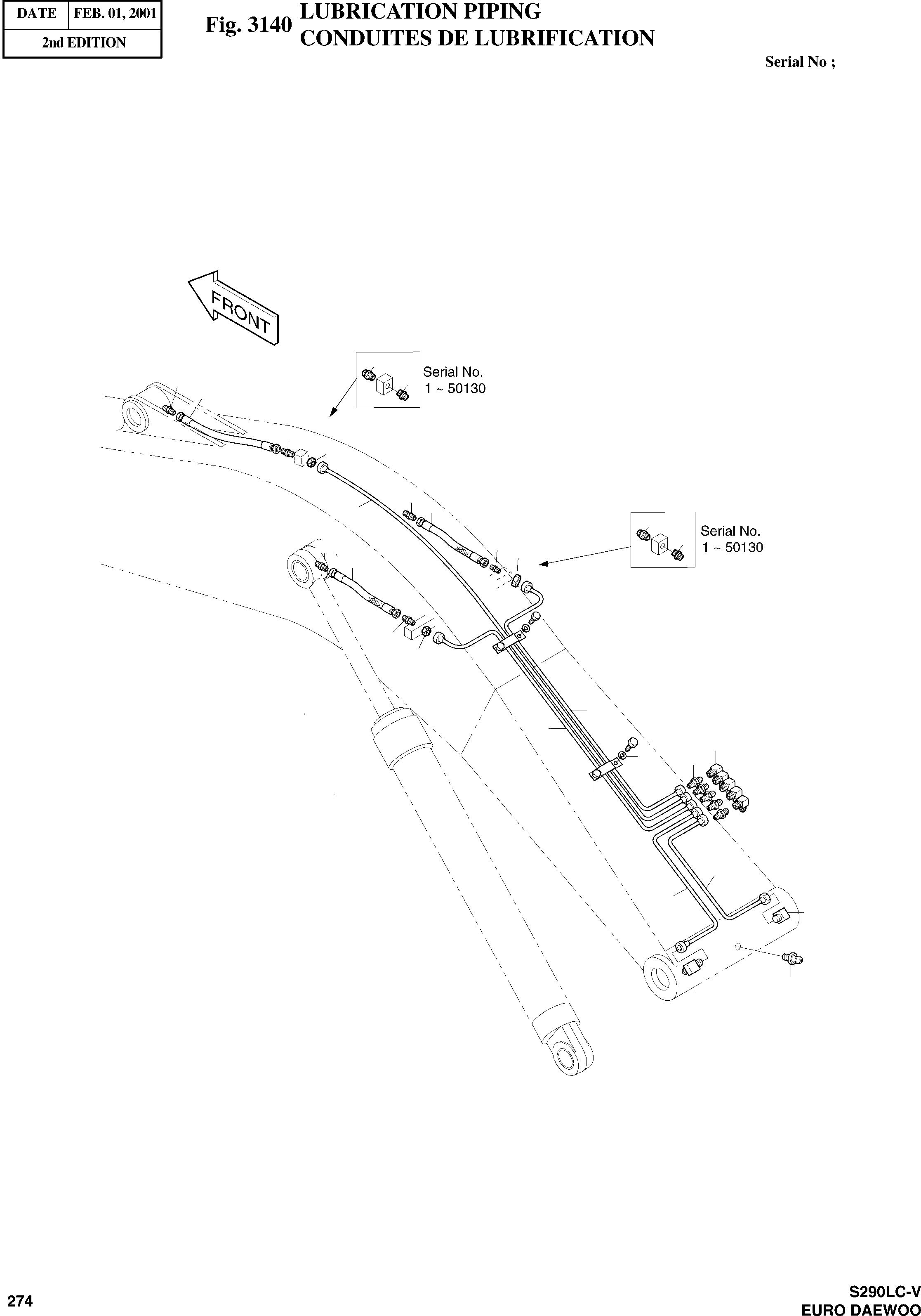

LUBRICATION PIPING

SC: D

-2шт.

1

2124-1625

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

2

2140-1308A

PIPE

desc: TUYAU

1шт.

3

2140-1309A

PIPE

desc: TUYAU

1шт.

4

2140-1310A

PIPE

desc: TUYAU

1шт.

5

2181-1184

ADAPTER M14X1.5-PT1/4

SERIAL: 00001-50130

8шт.

5

2181-1184

ADAPTER M14X1.5-PT1/5

SERIAL: 50131

5шт.

6

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

4шт.

7

2181-1110D1

ADAPTER PT1/4-PF1/4

SERIAL: 00001-50130

3шт.

8

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

2шт.

9

S5102603

WASHER;SPRING

desc: RONDELLE GROWERM10

4шт.

10

2181-1110D30

ADAPTER PF1/4-PT1/8

desc: RACCORD

3шт.

11

S6710052

NIPPLE;GREASE PT1/4

desc: GRAISSEUR

5шт.

12

S6710042

NIPPLE;GREASE PT1/8

desc: GRAISSEUR

1шт.

12

S3524403

SCREW;SET

desc: VIS

1шт.

13

2140-1311

PIPE

desc: TUYAU

1шт.

14

2140-1312

PIPE

desc: TUYAU

1шт.

15

2181-1925

ELBOW M14X1.5-PT1/8

desc: COUDE

2шт.

16

2184-1045D71

HOSE PF1/4-860L

desc: TUYAU FLEXIBLE

1шт.

17

2181-1923D12

ADAPTER

SERIAL: 50131

3шт.

18

S4032833

NUT

SERIAL: 50131

3шт.
