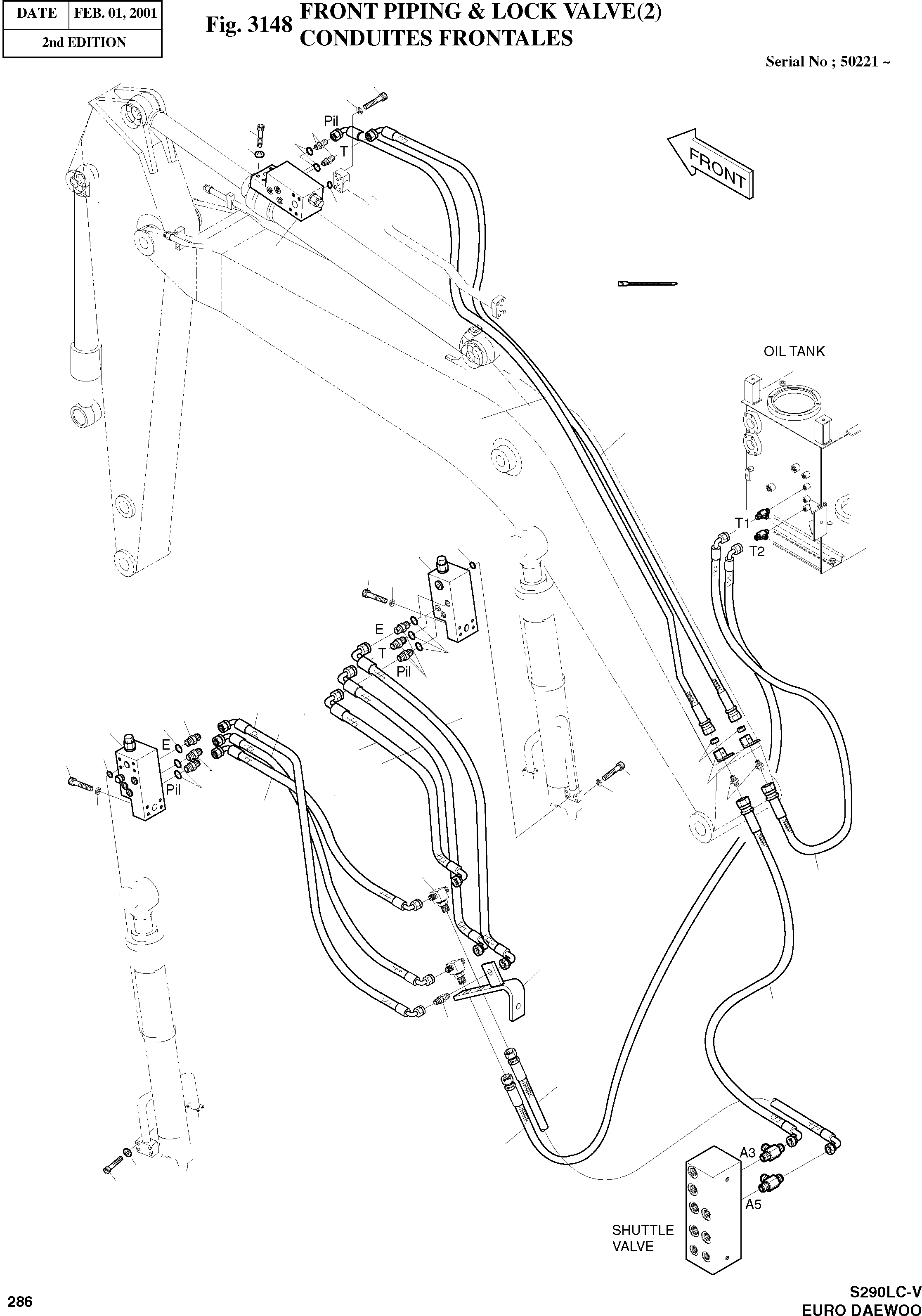

Запчасти Doosan Daewoo FRONT PIPING & LOCK VALVE(2) FRONT PARTS

-

9400-1088

FRONT PIPING ASSY & LOCK VALVE(2)

SERIAL: 1-50220

-2шт.

-

9400-1088A

FRONT PIPING ASSY & LOCK VALVE(2)

SERIAL: 50221

-2шт.

8

9420-6019A

VALVE;LOCK 1-6000PSI

desc: CLAPET DE SECURITE

1шт.

9

9420-6023

VALVE;LOCK 1-6000PSI

desc: CLAPET DE SECURITE

2шт.

17

S2215761

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6 PANS CREUX

12шт.

24

S5110701

WASHER;SPRING M12

desc: RONDELLE GROWER

24шт.

25

2124-1084D2

CLIP;BAND

desc: ATTACHE

30шт.

26

S8000341

O-RING

desc: JOINT TORIQUE

3шт.

27

2181-1126D14

ADAPTER;S PF1/4-PF1/4

desc: RACCORD

2шт.

28

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

29

2184-1046D252

HOSE PF1/4-5630L

desc: TUYAU FLEXIBLE

1шт.

30

181-00078D5

ADAPTER PF1/4-PF3/8

desc: RACCORD

2шт.

31

197-00021

BRACKET

desc: SUPPORT

2шт.

32

2184-1046D243

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1046D222

HOSE PF3/8-3000L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D238

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1026D319

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

38

197-00023A

SUPPORT

desc: SUPPORT

1шт.

39

2184-1076D129

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1076D127

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

2шт.

41

2184-1076D128

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1076D123

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1076D124

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

44

181-00008

TEE 2PF1/4-PF3/8

desc: TE

2шт.

45

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD

1шт.

46

S2215861

BOLT;SOCKET M12X1.75X60

desc: BOULON A 6 PANS CREUX

12шт.

47

2181-1126D75

ADAPTER;S PF(0)1/4-PF1/4

desc: RACCORD

6шт.

48

121-00010D1

NUT PF3/8

desc: ECROU

2шт.

49

2184-1046D301

HOSE PF1/4-5770L

desc: FLEXIBLE

1шт.
