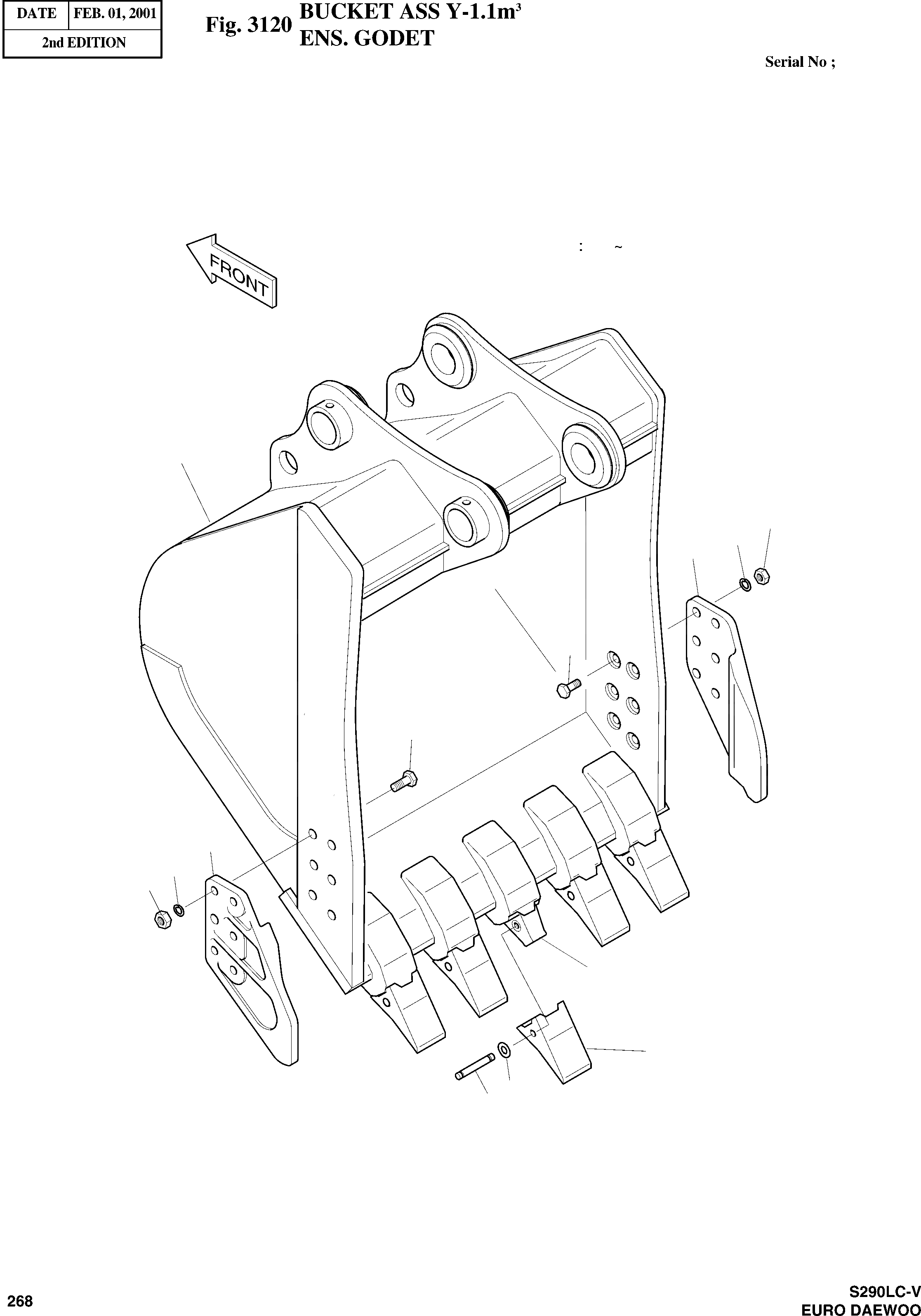

Запчасти Doosan Daewoo BUCKET ASSY-1.1§© FRONT PARTS

5

2704-1371C

BUCKET ASS'Y-1.1§©

SERIAL: 00001-50120

1шт.

5

2704-1371H

BUCKET ASS'Y-1.1§©

SERIAL: 50121

1шт.

5

2704-1371I

BUCKET ASS'Y-1.1§©

SERIAL: 50211

1шт.

5-1

2704-1372A

BUCKET ASS'Y-1.1§©

ICA: I

1шт.

5-1

2704-1372B

BUCKET ASS'Y-1.1§©

desc: . ENSEMBLE GODET

1шт.

5-1

2704-1372G

BUCKET ASS'Y-1.1§©

desc: . ENSEMBLE GODET

1шт.

5-1

2704-1372H

BUCKET ASS'Y-1.1§©

SERIAL: 50211

1шт.

5-1A

2713-1220

ADAPTER;TOOTH

desc: .. RACCORD

5шт.

5-2

2713-1219

POINT;TOOTH

desc: . DENT

5шт.

5-3

2705-1021

PIN;LOCKING

desc: . BROCHE DE BLOCAGE

5шт.

5-4

2114-1849A

WASHER;LOCKING

desc: . RONDELLE

5шт.

5-5

2713-6034

CUTTER;SIDE(R)

SERIAL: 1-50210

1шт.

5-5

2713-6034A

CUTTER;SIDE(R)

SERIAL: 50211

1шт.

5-6

2713-6035

CUTTER;SIDE(L)

SERIAL: 1-50210

1шт.

5-6

2713-6035A

CUTTER;SIDE(L)

SERIAL: 50211

1шт.

5-7

S0570261

BOLT M20X2.5X65

SERIAL: 1-50210

12шт.

5-7

S0574761

BOLT M20X2.5X70

SERIAL: 50211

12шт.

5-8

S4013133

BOLT M24X3.0X70

SERIAL: 1-50210

12шт.

5-8

S4013333

NUT M20X2.5

SERIAL: 50211

12шт.

5-9

S5103101

NUT M24X3.0

SERIAL: 00001-50120

12шт.

5-9

2114-9012

WASHER;HARDEN

SERIAL: 50121

12шт.

5-9

2114-1831

WASHER;HARDEN

SERIAL: 50211

12шт.
