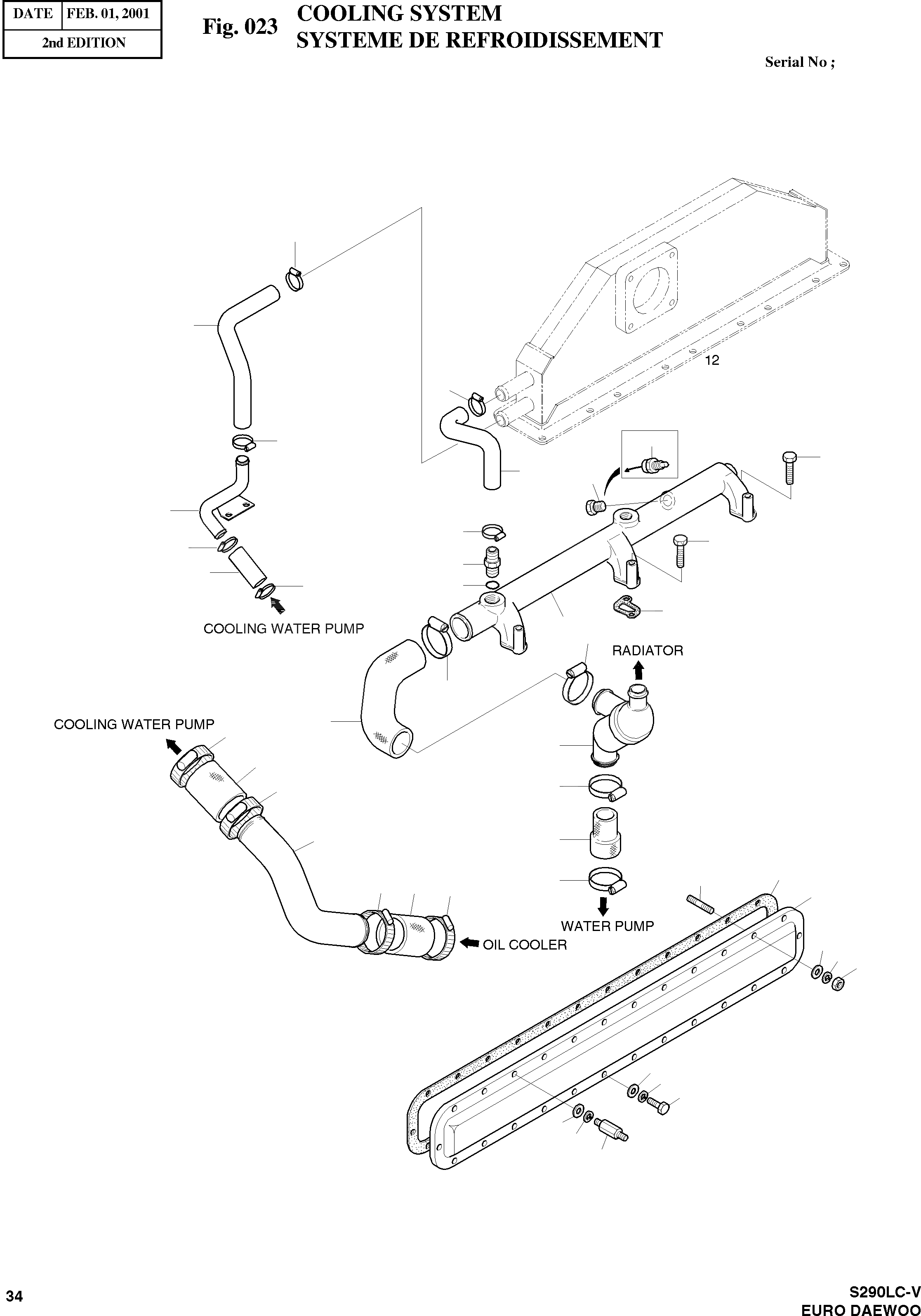

Запчасти Doosan Daewoo COOLING SYSTEM ENGINE PARTS

1

65.01705-0002

COVER;WATER CHAMBER

desc: COUVERCLE DE CHAMBRE D'EAU

1шт.

2

65.01907A0002

GASKET;WATER CHAMBER COVER

desc: JOINT(COUVERCLE DE CHAMBRE D'EAU)

1шт.

3

06.15010-2311

WASHER

desc: RONDELLE

12шт.

4

06.16731-2107

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

5

06.01923-3115

BOLT;HEX. M8X25

desc: BOULON A 6 PANS

14шт.

7

65.90201-0149

BOLT;STUD M8X25

desc: GOUJON

11шт.

8

06.11063-8214

NUT;HEX

desc: ECROU 6 PANS M8

11шт.

9

65.06301-0134B

PIPE;COOLING WATER

desc: TUYAU D'EAU DE REFROIDISSEMENT

1шт.

10

65.06903A0011

GASKET;COOLING WATER PIPE

desc: JOINT(CONDUITE D'EAU)

3шт.

12

06.01923-3122

BOLT;HEX. M8X56

desc: BOULON A 6 PANS

3шт.

13

06.01923-3124

BOLT;HEX. M8X65

desc: BOULON A 6 PANS

3шт.

16

66.27435-6007

SWITCH;THERMO 10ЎЙ

SERIAL: 990506

1шт.

16

65.90320-0019

PLUG SCREW PT3/8

SERIAL: 990506

1шт.

17

06.67020-0110

CLAMP;HOSE

desc: COLLIER

2шт.

18

65.96301-0257

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

19

65.06401-6044

THERMOSTAT

desc: THERMOSTAT

1шт.

21

06.67020-0106

CLAMP;HOSE

desc: COLLIER

2шт.

26

04.27405-1910

HOSE;RUBBER

desc: TUYAU FLEXIBLE

2шт.

27

06.67020-0110

CLAMP;HOSE

desc: COLLIER

4шт.

28

65.06301-0083

PIPE;OIL COLLER

desc: CONDUITE(RAD. EAU VERS REFR. HUILE)

1шт.

29

65.96301-0258

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

30

65.90201-0037

BOLT;SPACER

desc: BOURON A 6 PANS

1шт.

31

04.27405-0904

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

1шт.

32

65.06301-5155

PIPE;COOLING WATER

SERIAL: 970602

1шт.

32

65.06301-5155A

PIPE;COOLING WATER

SERIAL: 970603

1шт.

33

65.96301-0259

HOSE;RUBBER

SERIAL: 970602

1шт.

33

65.96301-0259A

HOSE;RUBBER

SERIAL: 970603

1шт.

34

65.96301-0260

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

35

65.98131-0071

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

36

06.56190-0728

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.

37

06.67020-0106

CLAMP;HOSE

desc: COLLIER

6шт.
