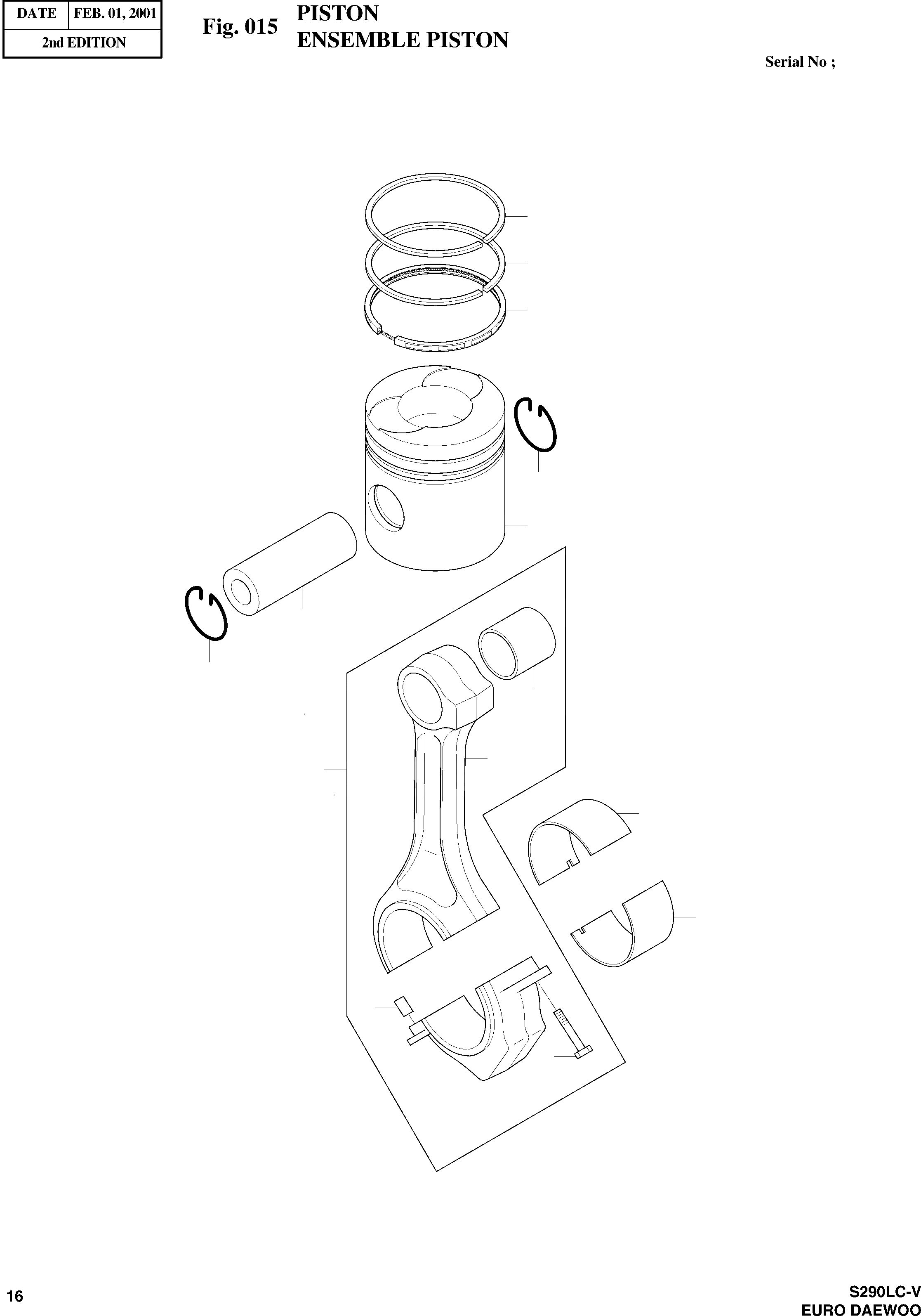

Запчасти Doosan Daewoo PISTON ENGINE PARTS

1

65.02501-0203

PISTON

SERIAL: 970012

6шт.

1

65.02501-0203A

PISTON

SERIAL: 970013

6шт.

1

65.02501-0785

PISTON

SERIAL: 981208

6шт.

2

65.02503-0054

RING;TOP 111X3.5

desc: SEGMENT SUPERIEUR 111x3.5

6шт.

3

65.02503-0091

RING;SECOND 111X3.5

desc: SEGMENT INFERIEUR 111x3.5

6шт.

3

65.02503-0120

RING;SECOND 111X3.5

SERIAL: 970013

6шт.

4

65.02503-0115

RING;OIL 111X4

desc: SEGMENT RACLEUR

6шт.

5

65.02502-0010

PIN;PISTON 42X2.X95

desc: AXE DE PISTON 42x20x95

6шт.

6

06.29020-0126

RING;SNAP 42X1.75

desc: CIRCLIP

12шт.

7

65.02401-6101D

CONNECTING ROD ASS'Y

SERIAL: 000901

6шт.

7

65.02401-6101E

CONNECTING ROD ASS'Y

SERIAL: 000902

6шт.

8

65.02401-0030

ROD;CONNECTING

SC: D

6шт.

9

65.90020-0009C

BOLT;CONNECTING ROD

SERIAL: 000901

2шт.

9

65.90020-0009D

BOLT;CONNECTING ROD

SERIAL: 000902

2шт.

10

65.91301-0010

PIN;DOWEL

SC: D

2шт.

11

65.02405-0015C

BUSH;SMALL END

SC: D

1шт.

12

65.02410-0010

METAL;CONN ROD STD

desc: COUSSINET TETE DE BIELLE STD

6шт.

12

65.02410-0011

METAL;CONN ROD 0.25mm

SC: US

6шт.

12

65.02410-0012

METAL;CONN ROD 0.50mm

SC: US

6шт.

12

65.02410-0013

METAL;CONN ROD 0.75mm

SC: US

6шт.
