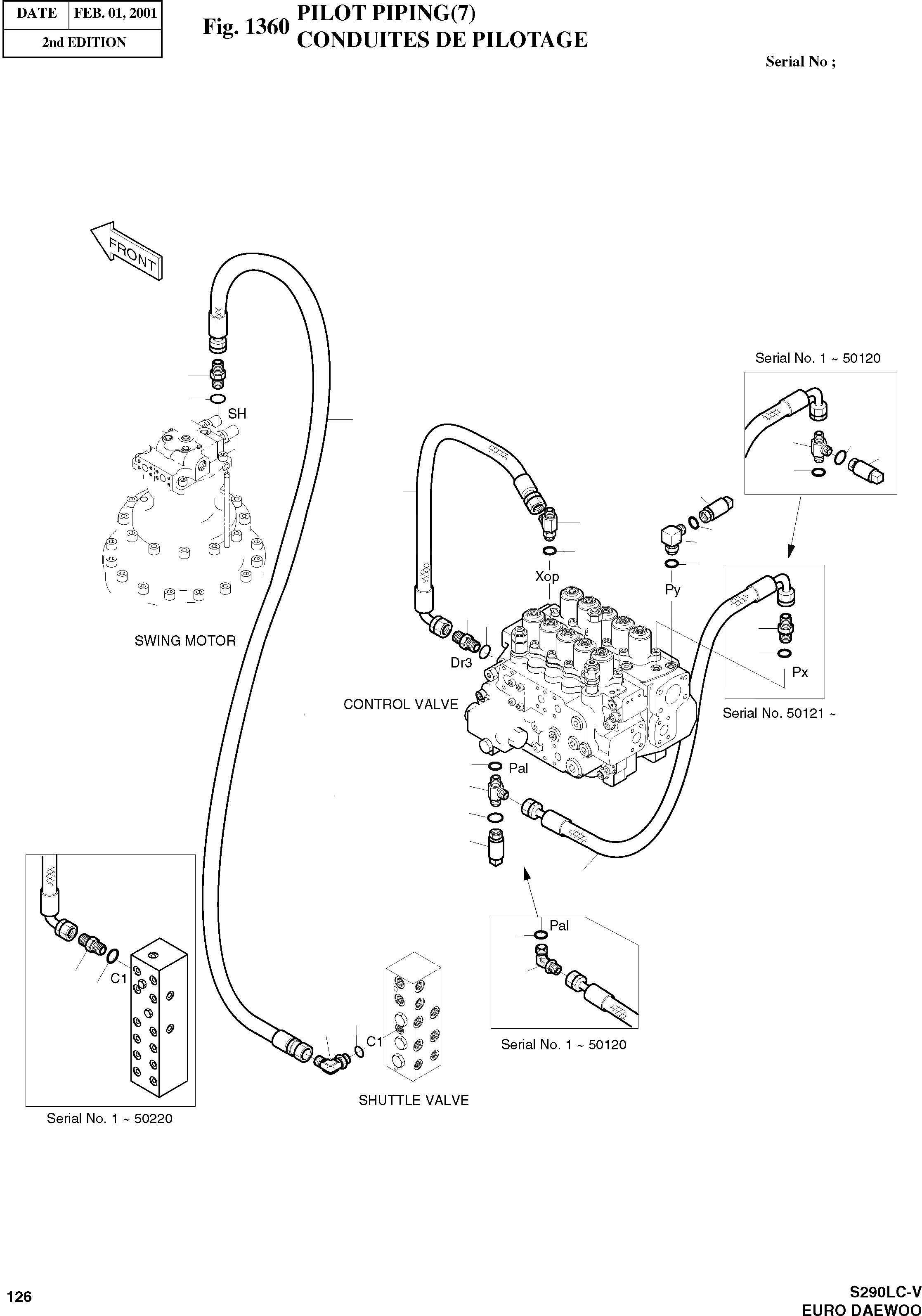

Запчасти Doosan Daewoo PILOT PIPING(7) BODY PARTS

-

2400-1826A

PILOT PIPING

SERIAL: 1-50220

-2шт.

-

9400-1090

PILOT PIPING

SERIAL: 50221

-2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

1шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

8шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1-50220

2шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 50221

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 1-50120

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 50121

1шт.

37

2181-2295D4

ELBOW 2-PFO1/4

desc: COUDE

1шт.

40

2181-1951D7

TEE PFO3/8-PF1/4X2

desc: TE

1шт.

41

2181-2635

TEE 2-PFO1/4-PF1/4

SERIAL: 00001-50120

1шт.

41

2181-2760

TEE

SERIAL: 50121

1шт.

48

2549-9112

SWITCH;PRESSURE

desc: INTERRUPTEUR

2шт.

50

2181-1126D75

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

96

2184-1046D68

HOSE(90ЎЖ-ST);PF1/4-600L

SERIAL: 1-50220

1шт.

96

2184-1046D81

HOSE(90ЎЖ-ST);PF1/4-650L

SERIAL: 50221

1шт.

99

2184-1046D147

HOSE(90ЎЖ-ST);PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

100

2184-1046D76

HOSE(90ЎЖ-ST);PF1/4-1200L

SERIAL: 1-50220

1шт.

100

2184-1045D127

HOSE(ST-ST);PF1/4-2600L

SERIAL: 50221

1шт.

130

2181-1126D34

ADAPTER PFO1/4-PF1/4

SERIAL: 50121

1шт.
