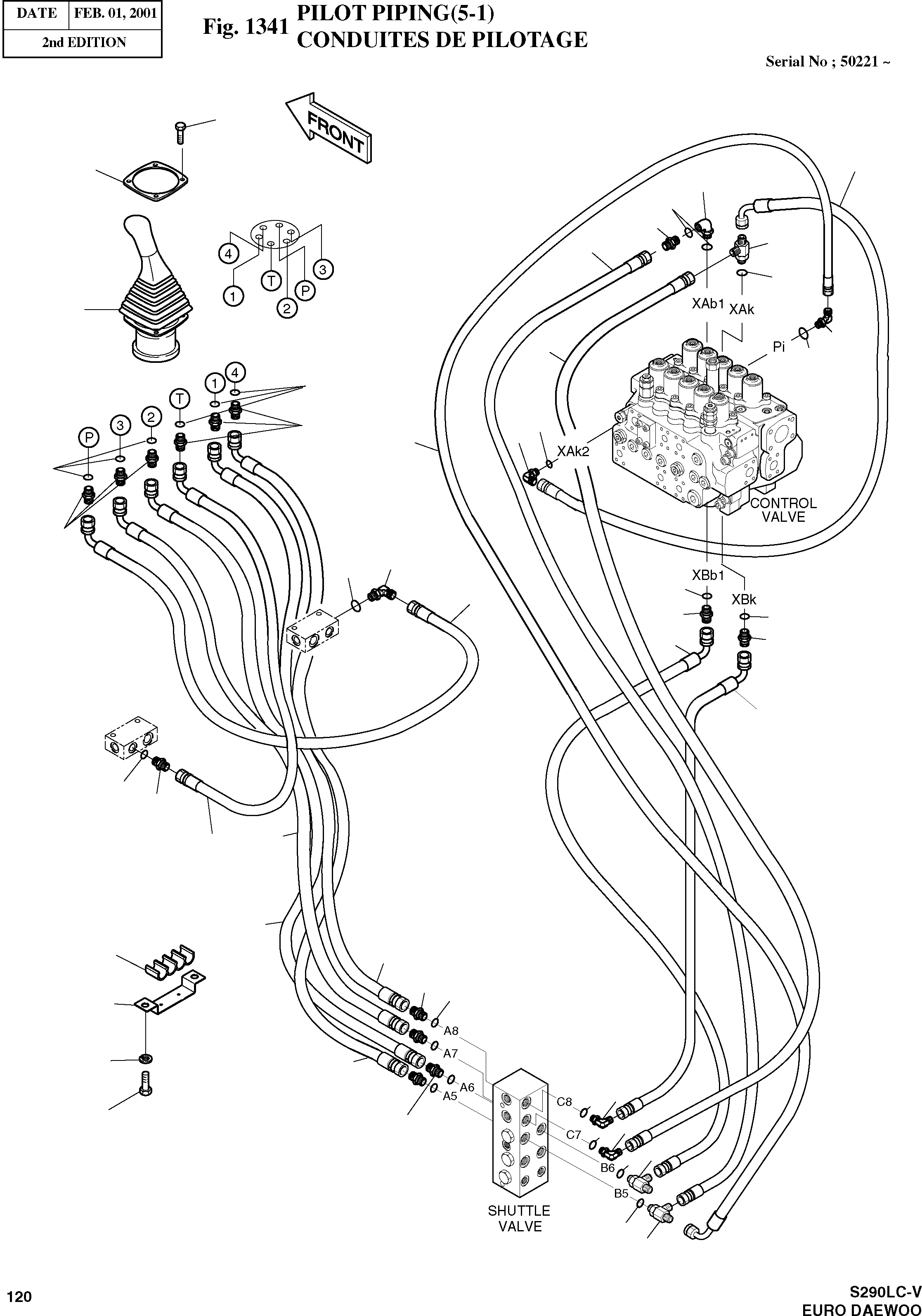

Запчасти Doosan Daewoo PILOT PIPING(5-1) BODY PARTS

-

9400-1090

PILOT PIPING

SERIAL: 50221

-2шт.

2

2420-9517

VALVE;REMOCON(RH)

desc: VANNE

1шт.

3

S2205061

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

14шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

8шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

32

2181-1702D4

ELBOW 2-PFO1/4

desc: COUDE

2шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

3шт.

42

181-00144D4

ADAPTER;ORIFICE

desc: RACCORD

1шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWERM8

2шт.

47

2181-2295D16

ELBOW 2-PFO3/8

desc: COUDE

1шт.

57

2184-1060D151

HOSE(135ЎЖ-ST);PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1060D151

HOSE(135ЎЖ-ST);PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1060D222

HOSE(135ЎЖ-ST);PF3/8-2400L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1060D222

HOSE(135ЎЖ-ST);PF3/8-2400L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1060D222

HOSE(135ЎЖ-ST);PF3/8-2400L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1060D222

HOSE(135ЎЖ-ST);PF3/8-2400L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D237

HOSE(90ЎЖ-ST);PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1046D237

HOSE(90ЎЖ-ST);PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1045D213

HOSE(90ЎЖ-ST);PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1045D213

HOSE(90ЎЖ-ST);PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1046D68

HOSE(90ЎЖ-ST);PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1046D79

HOSE(90ЎЖ-ST);PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

133

2181-2375D11

TEE

desc: TE

2шт.

140

181-00144D8

ADAPTER;ORIFICE

desc: ORIFICE

1шт.

151

2181-1951D16

TEE PFO3/8

desc: TE

1шт.
