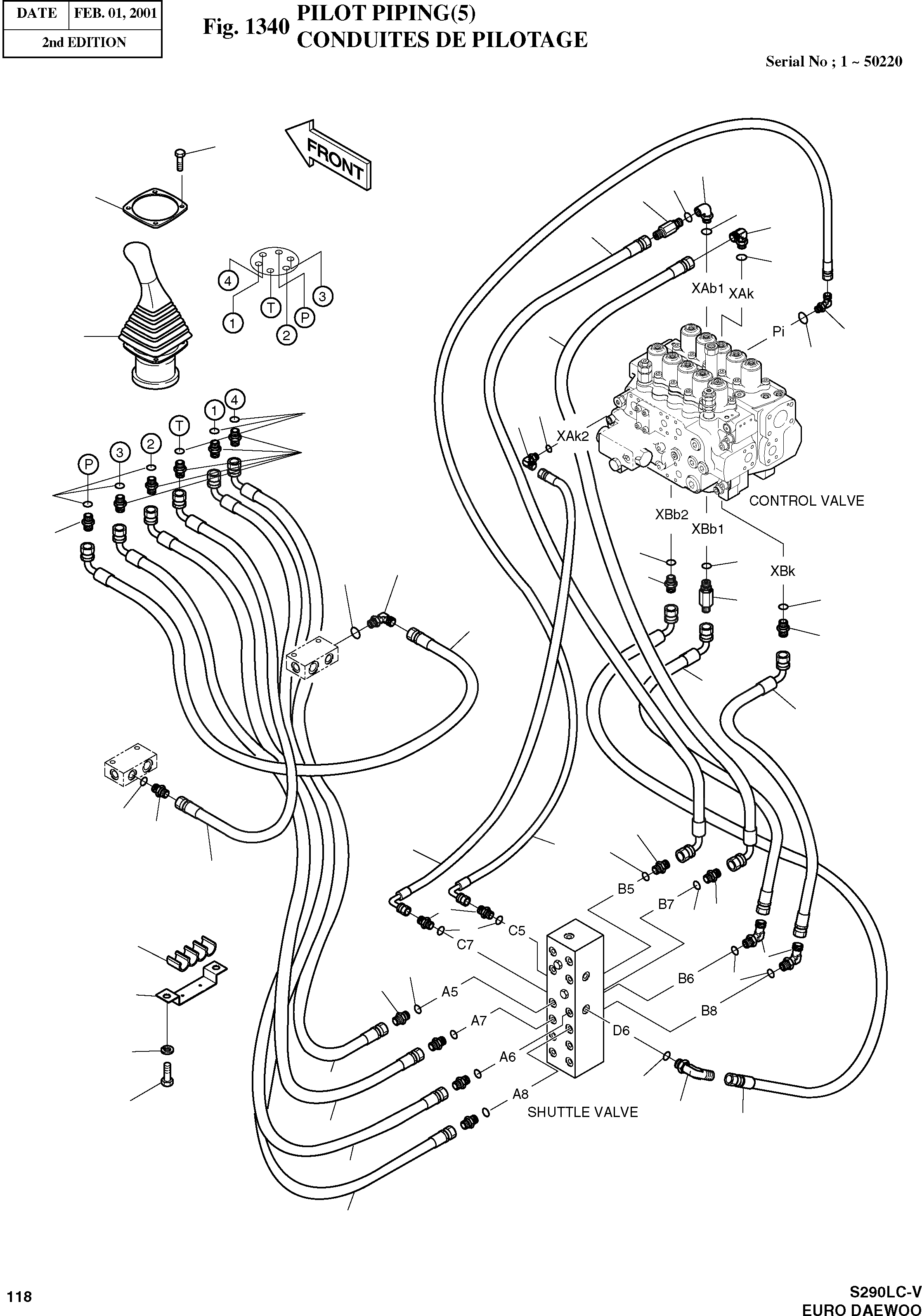

Запчасти Doosan Daewoo PILOT PIPING(5) BODY PARTS

-

2400-1826A

PILOT PIPING

SERIAL: 1-50220

-2шт.

2

2420-9517

VALVE;REMOCON(RH)

desc: VANNE

1шт.

3

S2205061

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

17шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

10шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

9шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

5шт.

32

2181-1702D4

ELBOW 2-PFO1/4

desc: COUDE

1шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

42

2426-9034

VALVE;SHOCKLESS ЎНO1.4

desc: VANNE

2шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWERM8

4шт.

47

2181-2295D16

ELBOW 2-PFO3/8

desc: COUDE

1шт.

57

2184-1060D151

HOSE(135ЎЖ-ST);PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1060D151

HOSE(135ЎЖ-ST);PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1060D152

HOSE(135ЎЖ-ST);PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1060D152

HOSE(135ЎЖ-ST);PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1060D152

HOSE(135ЎЖ-ST);PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1060D152

HOSE(135ЎЖ-ST);PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D234

HOSE(90ЎЖ-ST);PF3/8-780L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1046D233

HOSE(90ЎЖ-ST);PF3/8-730L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1046D183

HOSE(90ЎЖ-ST);PF3/8-830L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1046D125

HOSE(90ЎЖ-ST);PF3/8-750L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1046D99

HOSE(90ЎЖ-ST);PF3/8-700L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1046D115

HOSE(135ЎЖ-ST);PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1046D107

HOSE(135ЎЖ-ST);PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

118

2471-1147

ADAPTER;FILTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

120

2181-2419D2

ELBOW PFO3/8-PF3/8

desc: COUDE

3шт.

132

2181-1702D57

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.
