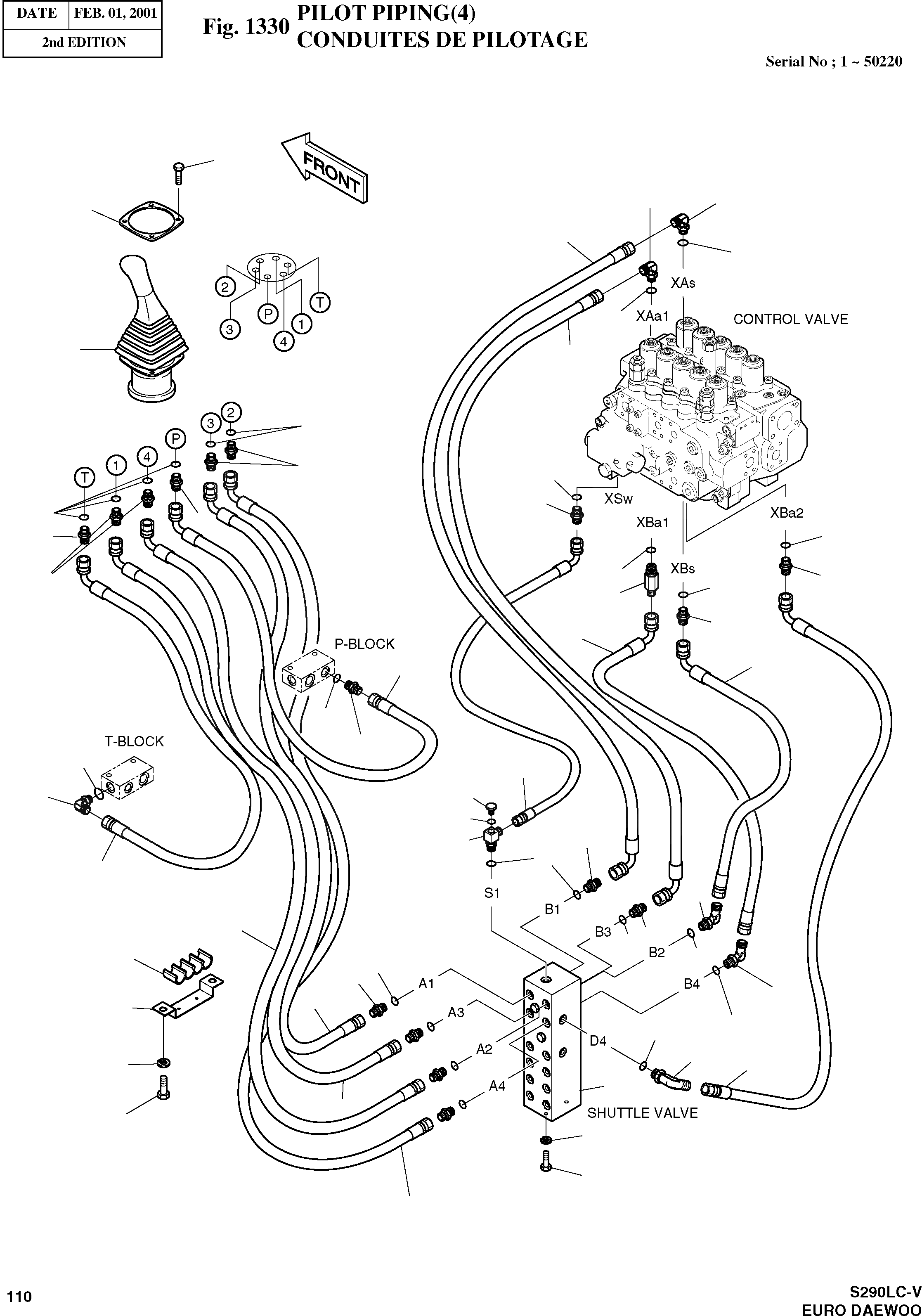

Запчасти Doosan Daewoo PILOT PIPING(4) BODY PARTS

-

2400-1826A

PILOT PIPING

SERIAL: 1-50220

-2шт.

1

2420-9516

VALVE;REMOCON(LH)

desc: VANNE

1шт.

3

S2205061

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

3шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE GROWERM10

3шт.

13

2420-9529

BLOCK;SHUTTLE

desc: BLOC

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

12шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

12шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

6шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

2шт.

32

2181-1702D4

ELBOW PFO1/4

desc: COUDE

1шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

36

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

42

2426-9034

VALVE;SHOCKLESS ЎНO1.4

desc: VANNE

1шт.

43

2181-1126D120

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE GROWERM8

4шт.

51

2184-1267D9

HOSE(105ЎЖ-ST);PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1267D10

HOSE'105ЎЖ-ST);PF3/8-2050L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1267D11

HOSE(105ЎЖ-ST);PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1267D11

HOSE(105ЎЖ-ST);PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1267D11

HOSE(105ЎЖ-ST);PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1267D11

HOSE(105ЎЖ-ST);PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

77

2184-1046D183

HOSE(90ЎЖ-ST);PF3/8-830L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D211

HOSE(90ЎЖ-ST);PF3/8-660L

desc: TUYAU FLEXIBLE

1шт.

87

2184-1046D240

HOSE(90ЎЖ-ST);PF3/8-950L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1046D94

HOSE(90ЎЖ-ST);PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1046D81

HOSE(90ЎЖ-ST);PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D35

HOSE(90ЎЖ-ST);PF1/4-680L

desc: TUYAU FLEXIBLE

1шт.

117

S8180221

WASHER;COPPER

desc: RONDELLE D'ETANCHEITE

1шт.

118

2471-1147

ADAPTER;FILTER PFO1/4-PF3/8

desc: ADAPTATEUR

1шт.

120

2181-2419D2

ELBOW(135ЎЖ);PFO3/8-PF3/8

desc: COUDE

2шт.

122

2181-2419D1

ELBOW(135ЎЖ);PFO1/4-PF1/4

desc: COUDE

2шт.

123

2181-2666

TEE PFO1/4-PF1/4-PFW1/4

desc: TE

1шт.

127

2181-2667

PLUG PF1/4

desc: BOUCHON

1шт.
