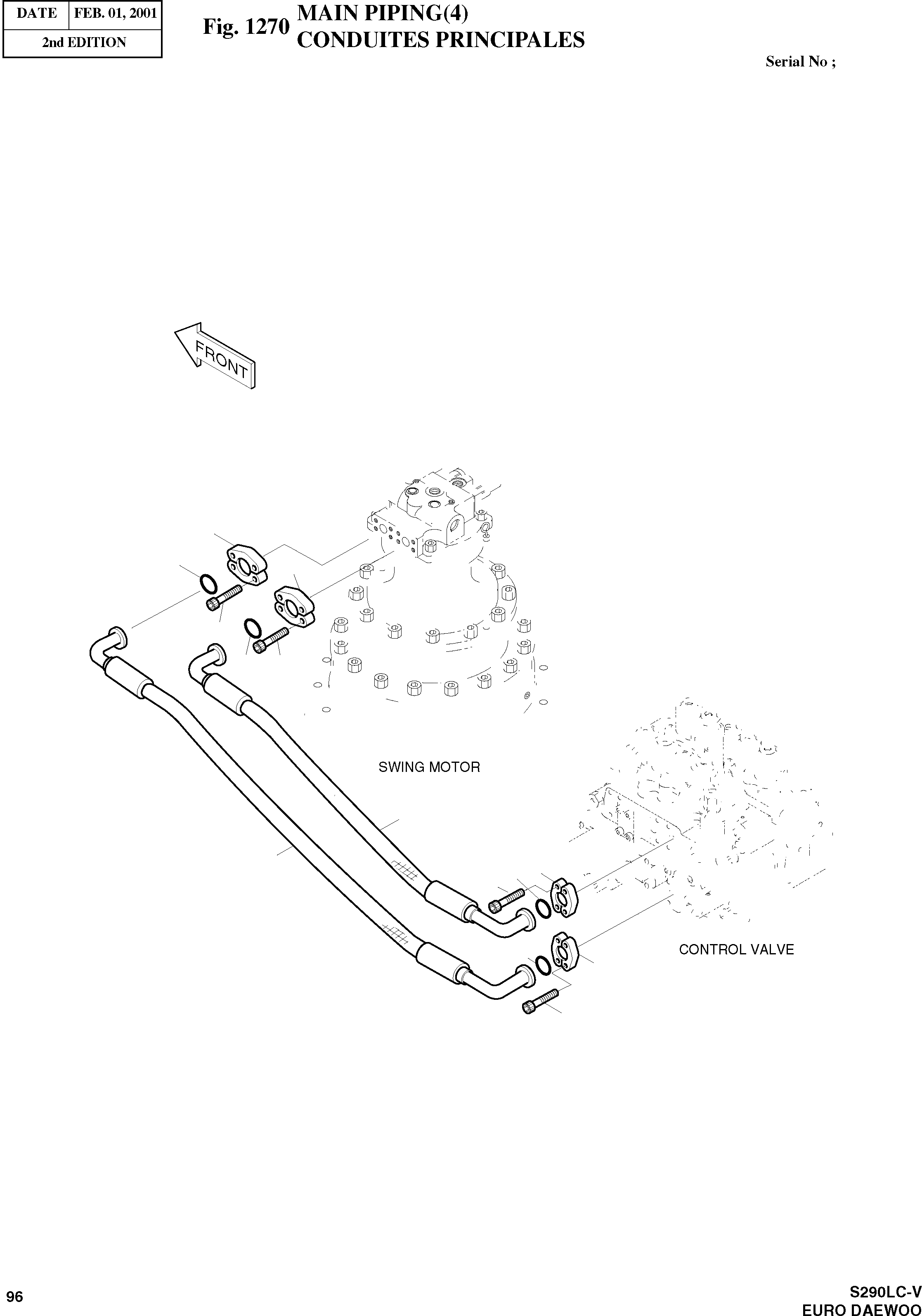

Запчасти Doosan Daewoo MAIN PIPING(4) BODY PARTS

-

2400-1774A

MAIN PIPING

SERIAL: 1-50220

-2шт.

-

9400-1089

MAIN PIPING

SERIAL: 50221

-2шт.

21

2184-1100D114

HOSE PF3/4-590L

SERIAL: 1-50220

1шт.

21

2184-1100D250

HOSE PF3/4-600L

SERIAL: 50221

1шт.

22

2184-1100D115

HOSE PF3/4-630L

desc: TUYAU FLEXIBLE

1шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

30

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

31

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.
