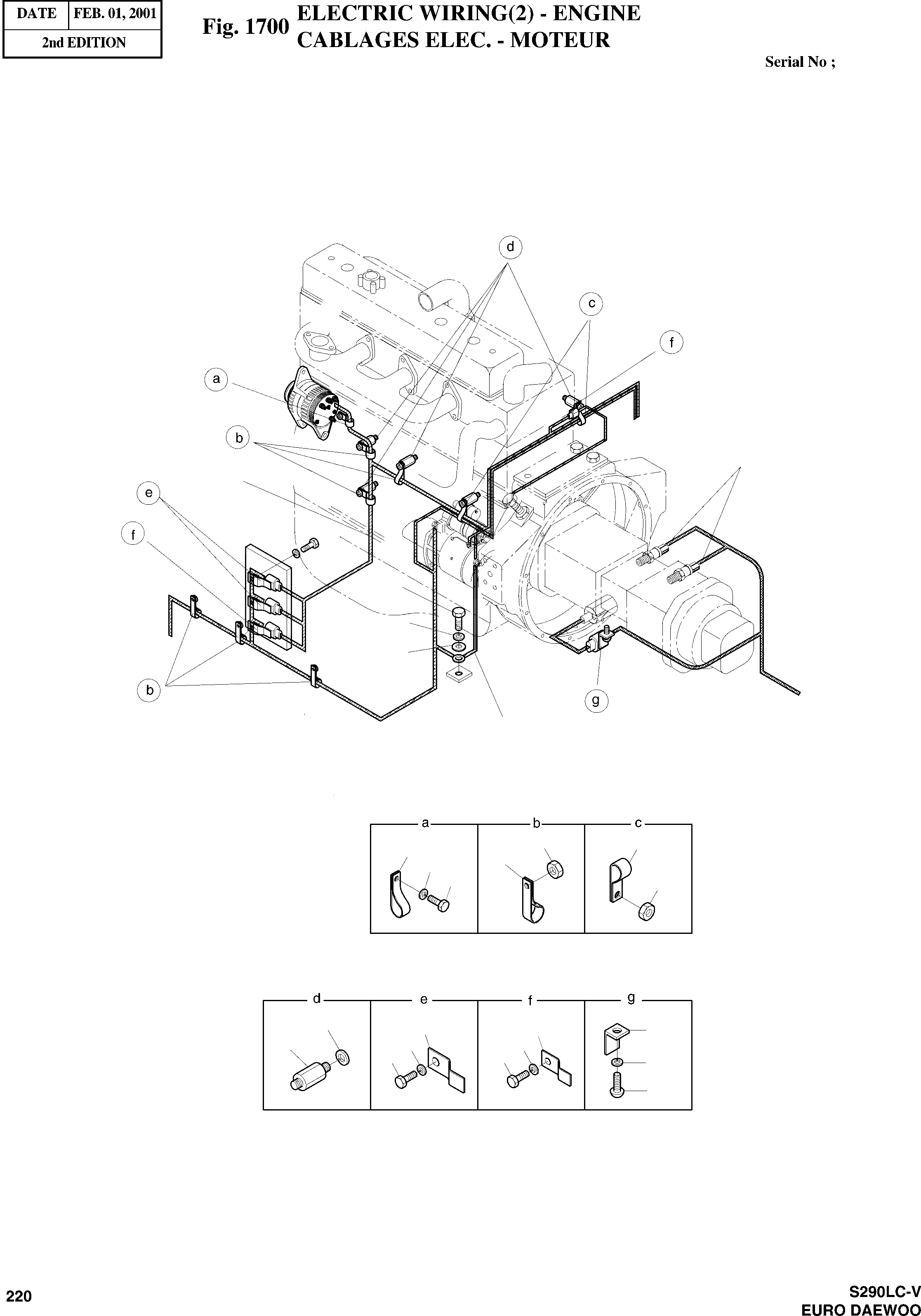

Запчасти Doosan Daewoo ELECTRIC WIRING(2) - ENGINE BODY PARTS

-

2500-1168

ELECTRIC PARTS

SC: D

-2шт.

3

2530-1631A

HARNESS;ENGINE

SERIAL: 1-50130

1шт.

3

2530-1631B

HARNESS;ENGINE

SERIAL: 50131

1шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

1шт.

16

S5102603

WASHER;SPRING

desc: RONDELLE GROWERM10

2шт.

17

S5010613

WASHER;PLAIN

desc: RONDELLE

1шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

1шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

1шт.

20

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

1шт.

21

2197-1660

BRACKET;HOUSING

desc: SUPPORT

2шт.

22

2197-1661

BRACKET;HOUSING

desc: SUPPORT

1шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

3шт.

24

S5102503

WASHER;SPRING

desc: RONDELLE GROWERM8

3шт.

25

2120-2159

BOLT;STUD

desc: BOULON A 6 PANS

3шт.

26

S5102603

WASHER;SPRING

desc: RONDELLE GROWERM10

3шт.

32

2121-1305

NUT M8X1.25

desc: ECROU

8шт.

33

2124-1622D1

CLIP D24/M8

desc: ATTACHE

6шт.

34

2124-1622D2

CLIP D30/M8

desc: ATTACHE

2шт.

36

2553-1275D5

CABLE;ENGINE EARTH 60B-300L

desc: CABLE

1шт.

37

2124-1353D13

CLIP D25/M10

desc: ATTACHE

1шт.

38

2530-1679

HARNESS;PRESSURE SENSOR

desc: FAISCEAU

2шт.

39

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

1шт.
