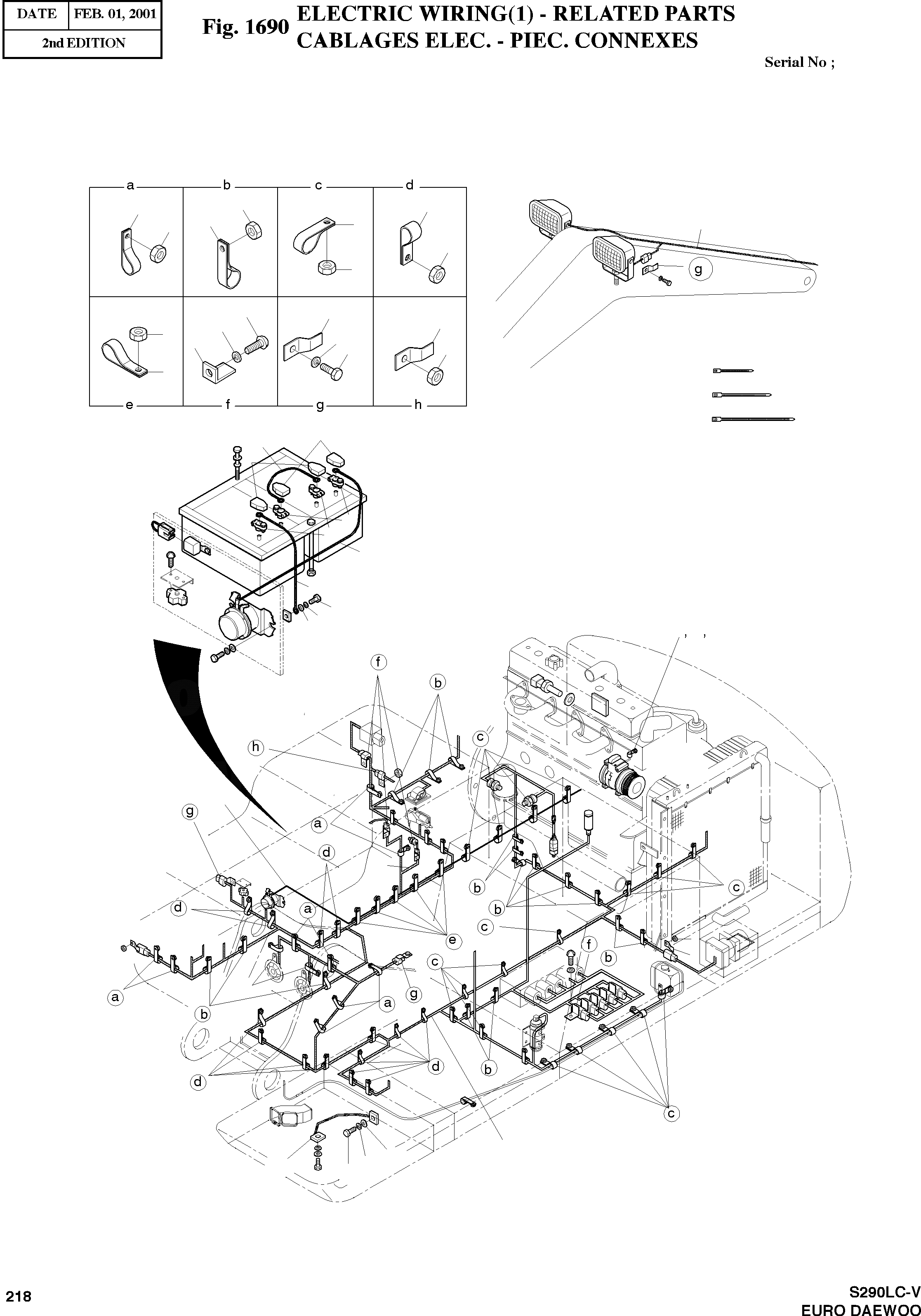

Запчасти Doosan Daewoo ELECTRIC WIRING(1) - RELATED PARTS BODY PARTS

-

2500-1168

ELECTRIC PARTS

SC: D

-2шт.

2

2530-1630B

HARNESS;MAIN

SERIAL: 00001-50120

1шт.

2

2530-1630E

HARNESS;MAIN

SERIAL: 50121-50130

1шт.

2

2530-1630G

HARNESS;MAIN

SERIAL: 50131

1шт.

4

2530-1609D4

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

5

2530-1400

HARNESS;PRESS.SWITCH

desc: FAISCEAU

1шт.

6

1550-1004

TERMINAL;BATTERY(+)

SERIAL: 00001-50120

2шт.

6

2550-1014D1

TERMINAL;BATTERY(+)

SERIAL: 50121

2шт.

7

1550-1003

TERMINAL;BATTERY(-)

SERIAL: 00001-50120

2шт.

7

2550-1014D2

TERMINAL;BATTERY(-)

SERIAL: 50121

2шт.

8

2160-1212

CAP;BATT.TERMINAL RED

desc: CHAPEAU DE CAOUTCHOUC

2шт.

9

2160-1213

CAP;BATT.TERMINAL BLACK

desc: BOUCHON

2шт.

10

2553-1275D5

CABLE;BATT-EARTH 60B-300L

desc: CABLE

1шт.

11

2553-1275D6

CABLE;BATT-BATT 60R-250L

desc: CABLE BATTERIE A BATTERIE

1шт.

12

2553-1275D31

CABLE;BATT-BATT RELAY

desc: CABLE BATTERIE A BATTERIE

1шт.

13

2553-1275D25

CABLE;RY-EARTH 60R-3700L

desc: CABLE

1шт.

14

2553-1275D5

CABLE;FL-EARTH 60B-300L

desc: CABLE

1шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS M10X1.5X16

5шт.

16

S5102603

WASHER;SPRING

desc: RONDELLE GROWERM10

4шт.

17

S5010613

WASHER;PLAIN

desc: RONDELLE

5шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

8шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

7шт.

20

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

7шт.

21

2197-1660

BRACKET;HOUSING

desc: SUPPORT

5шт.

22

2197-1661

BRACKET;HOUSING

desc: SUPPORT

1шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

3шт.

24

S5102503

WASHER;SPRING

desc: RONDELLE GROWERM8

4шт.

27

2124-1509D1

CLIP D12/M8

desc: ATTACHE

13шт.

28

2124-1509D2

CLIP D18/M8

desc: ATTACHE

15шт.

29

2124-1509D3

CLIP D24/M8

desc: ATTACHE

28шт.

30

2124-1509D4

CLIP D30/M8

desc: ATTACHE

17шт.

31

2124-1509D5

CLIP D36/M8

desc: ATTACHE DE TUYAU

5шт.

32

2121-1305

NUT M8X1.25

desc: ECROU

72шт.

33

2124-1622D1

CLIP;BAND 150L

desc: ATTACHE

4шт.

34

2124-1622D2

CLIP;BAND 200L

desc: ATTACHE

28шт.

35

2124-1622D3

CLIP;BAND 280L

desc: ATTACHE

2шт.
