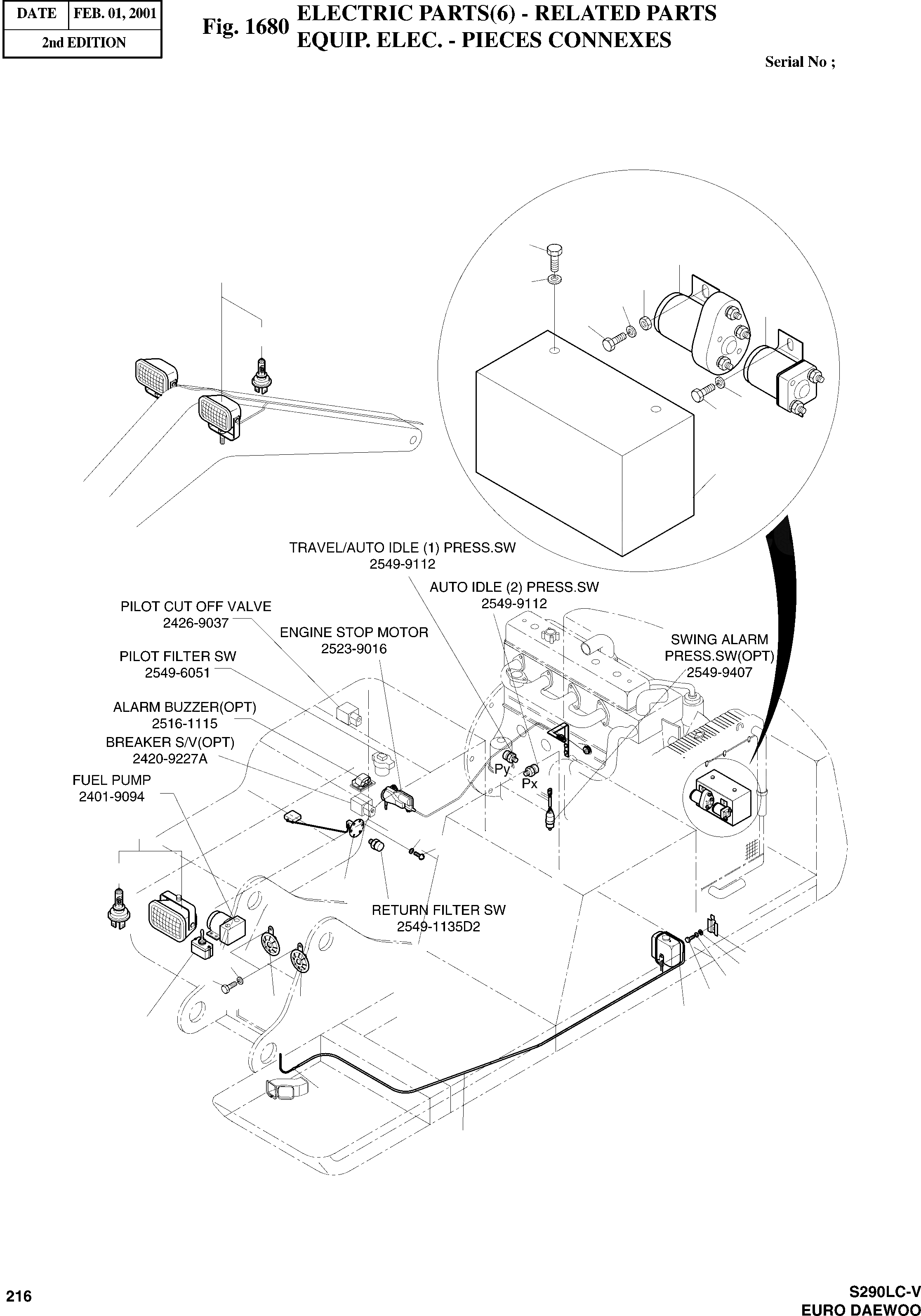

Запчасти Doosan Daewoo ELECTRIC PARTS(6) - RELATED PARTS BODY PARTS

-

2500-1167

ELECTRIC PARTS

SC: D

-2шт.

13

2544-9015

RELAY;PREHEAT

ICA: Y

1шт.

13

2544-6020

RELAY;PREHEAT

desc: RELAIS DE PRECHAUFFAGE

1шт.

14

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

15

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

4шт.

16

S4012333

NUT M6X1.0

desc: ECROU M6X1.0

2шт.

17

2544-1022

RELAY;STARTER

desc: RELAIS DEMARREUR

1шт.

18

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

19

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

2шт.

20

2403-1060

COVER;RELAY

desc: COUVERCLE

1шт.

21

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

4шт.

22

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

4шт.

23

2554-9005A

WINDOW-WASHER

desc: RONDELLE

1шт.

24

2195-1534

BRACKET

desc: SUPPORT

1шт.

25

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

26

S5102303

WASHER;SPRING

desc: RONDELLE GROWERM6

2шт.

27

S5010313

WASHER;PLAIN

desc: RONDELLE

2шт.

28

2415-1018

ADAPTER;HOSE

desc: RACCORD ADAPTEUR

1шт.

29

2185-1681D4

TUBE;CORRUGATE

desc: TUYAU FLEXIBLE

1шт.

30

2534-1160

LAMP;HEAD

desc: PROJECTEUR DE FLENCHE

1шт.

30A

2515-1022D1

BULB;HALOGEN 24V/70W

desc: . AMPOULE

1шт.

31

2534-1160

LAMP;WORKING

desc: PROJECTEUR DE FLENCHE

2шт.

31A

2515-1022D1

BULB;HALOGEN 24V/70W

desc: . AMPOULE

1шт.

32

2516-9015

HORN(HF)

SERIAL: 1-50160

1шт.

32

2516-9018

HORN(HF)

SERIAL: 50161

1шт.

33

2516-9016

HORN(LF)

SERIAL: 1-50160

1шт.

33

2516-9019

HORN(LF)

SERIAL: 50161

1шт.

34

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

35

S5102503

WASHER;SPRING

desc: RONDELLE GROWERM8

2шт.

38

2547-9035

SENSOR;FUEL

desc: CAPTEUR

1шт.

39

S3450833

SCREW M5X0.8X12

desc: VIS

6шт.

40

S5100203

WASHER;SPRING

desc: RONDELLE GROWERM5

6шт.
