Запчасти Doosan Daewoo FRONT PIPING FOR BREAKER OPTION PARTS

-

2400-7096

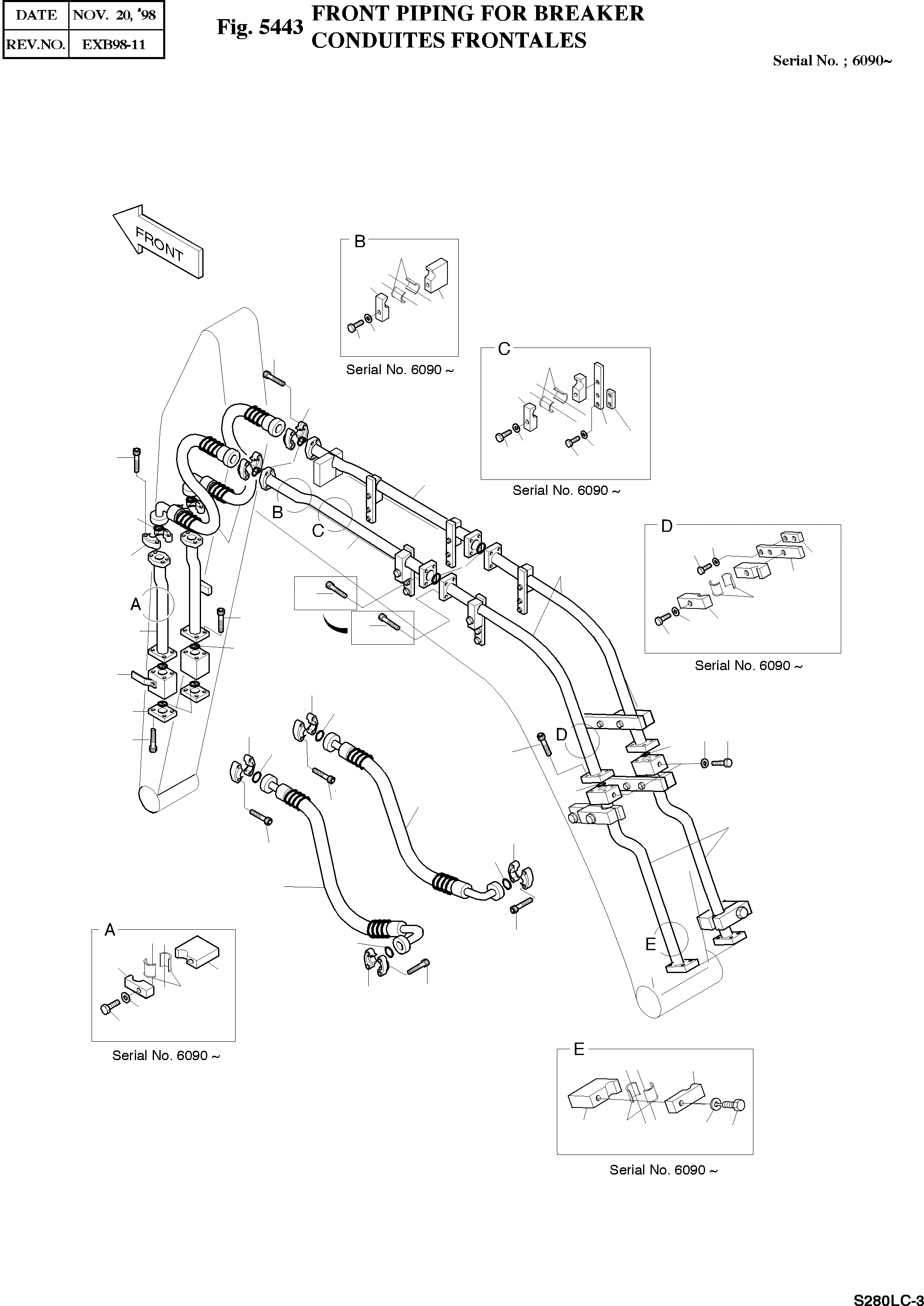

FRONT PIPING FOR BREAKER

SERIAL: 6090

-2шт.

1

2183-3812

PIPE

desc: TUYAU

2шт.

2

2183-3533C

PIPE

desc: TUYAU

2шт.

3

2183-3601B

PIPE

desc: TUYAU

1шт.

4

2183-3600B

PIPE

desc: TUYAU

1шт.

5

2183-3644

PIPE

desc: TUYAU

2шт.

6

2184-1094D50

HOSE 2-1"-5000PSI-2050L

desc: TUYAU FLEXIBLE

2шт.

7

2426-9011A

VALVE;STOP

desc: CLAPET DE ARRET

2шт.

8

2181-2078

FLANGE

desc: BRIDE

2шт.

9

2181-1950D5

PLUG PF3/4

desc: BOUCHON

2шт.

10

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.

11

2180-1026D19

O-RING

desc: JOINT TORIQUE

16шт.

12

S2215361

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

16шт.

13

2181-9078

FLANGE

desc: COLLIER A BRIDE(1")

16шт.

14

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

8шт.

15

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

36шт.

16

2124-1586A

CLAMP;PIPE

desc: ATTACHE DE TUYAU

28шт.

17

S0565661

BOLT M16X2.0X70

desc: BOULON A 6 PANS

28шт.

18

S5102901

WASHER;SPRING

desc: RONDELLE ELASTIQUE

38шт.

20

2191-1219D96

SEAT;SCREW

desc: VIS PLAQUE

4шт.

31

2184-1100D21

HOSE 2-1"-5000PSI-1550L

desc: TUYAU FLEXIBLE

2шт.

49

S2212461

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6 PANS CREUX

8шт.

50

2891-1040

SEAT;SCREW

desc: PLAQUE A VIS

10шт.

51

S0565161

BOLT M16X1.5X60

desc: BOULON A 6 PANS

20шт.

52

S0565961

BOLT M16X2.0X85

desc: BOULON A 6 PANS

10шт.

53

2161-2131

RUBBER

desc: CAOUTCHOUC

36шт.

54

2891-1396

SEAT;SCREW

desc: PLAQUE A VIS

2шт.

55

2891-1031

SEAT;SCREW

desc: PLAQUE A VIS

6шт.

56

2891-1032

SEAT;SCREW

desc: PLAQUE A VIS

4шт.

57

2891-1360

SEAT;SCREW

desc: PLAQUE A VIS

2шт.

58

2891-1018

SEAT;SCREW

desc: PLAQUE A VIS

4шт.

59

2891-1397

SEAT;SCREW

desc: PLAQUE A VIS

10шт.
