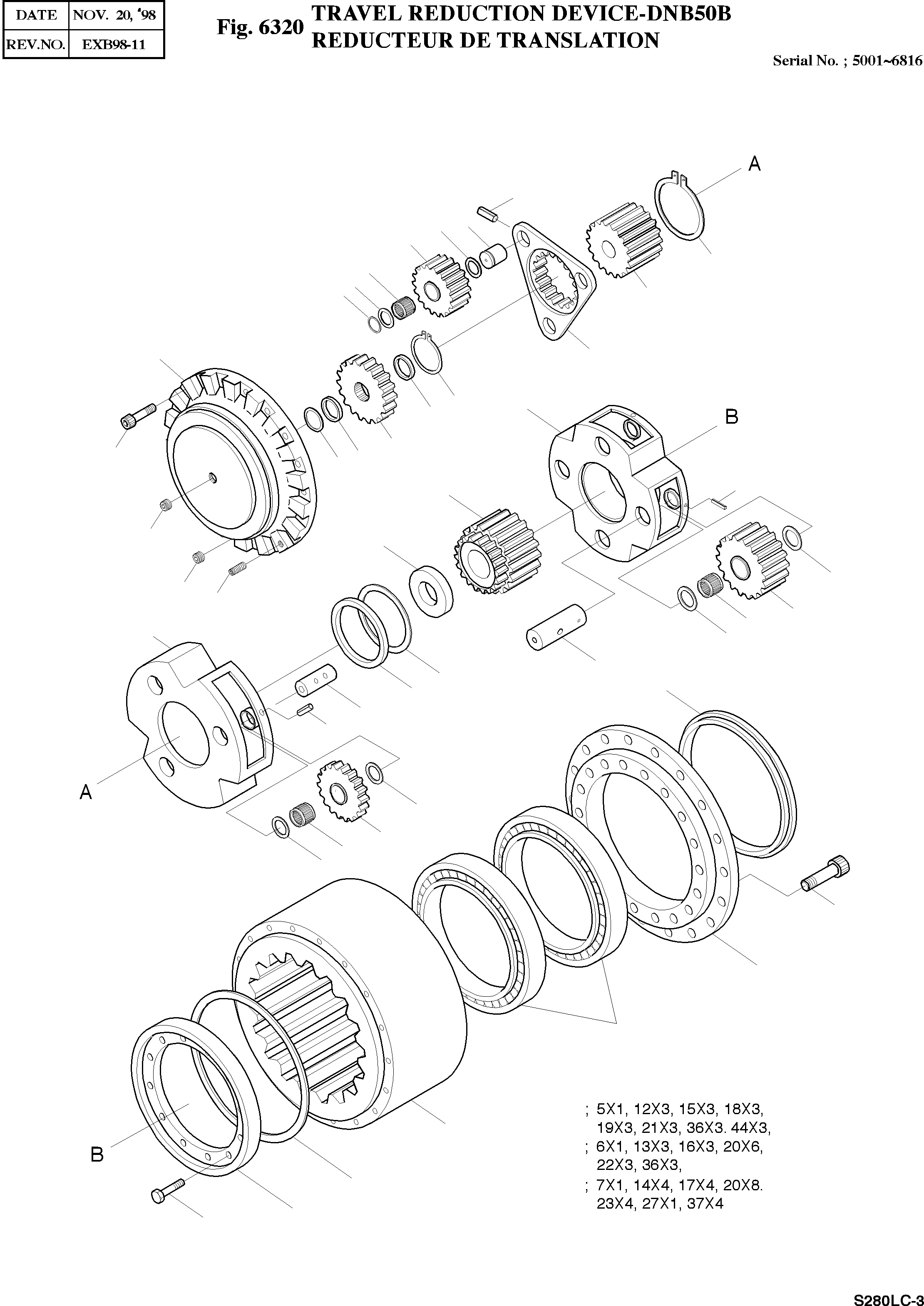

Запчасти Doosan Daewoo TRAVEL REDUCTION DEVICE-DNB50B HYDRAULIC PARTS

-

2401-9140

DEVICE;TRAVEL-DNB50B

SERIAL: 5001-6816

2шт.

-

3350BX067

TRAVEL REDUCTION DEVICE ASS'Y

desc: . MOTEUR DE TRANSLATION

1шт.

1

35050BAA-001

GEAR;RING

desc: .. PIGNON

1шт.

2

33050BAA-002

HOUSING

desc: .. BOITIER

1шт.

4

35050BAA-004

COVER;SIDE

desc: .. COUVERCLE

1шт.

5

35050BAA-005

CARRIER 67(NO.1)

desc: .. SUPPORT

1шт.

6

35050BAA-006

CARRIER (NO.2)

desc: .. SUPPORT

1шт.

7

35050BAA-007A

CARRIER (NO.3)

desc: .. SUPPORT

1шт.

8

35050BAA-008

RETAINER;BEARING

desc: .. ARRETOIR

1шт.

9

35050BAA-009

GEAR;SUN 67(NO.1)

desc: .. PIGNON

1шт.

10

35050BAA-010

GEAR;SUN (NO.2)

desc: .. PIGNON

1шт.

11

35050BAA-011

GEAR;SUN (NO.3)

desc: .. PIGNON

1шт.

12

35050BAA-012

GEAR;PLANETARY 67(NO.1)

desc: .. PIGNON

3шт.

13

35050BAA-013

GEAR;PLANETARY (NO.1)

desc: .. PIGNON

3шт.

14

35050BAA-014

GEAR;PLANETARY (NO.3)

desc: .. PIGNON

4шт.

15

35050BAA-015

PIN (NO.1)

desc: .. GOUJON

3шт.

16

35050BAA-016

PIN 59X61 (NO.2)

desc: .. GOUJON

3шт.

17

35050-00-017

PIN (NO.3)

desc: .. GOUJON

4шт.

18

35050BAA-018

PLATE;SIDE 50A

desc: .. PLAQUE

3шт.

19

35050BAA-019

PLATE;SIDE 50B

desc: .. PLAQUE

3шт.

20

35050BAA-020

PLATE;SIDE 60

desc: .. PLAQUE

14шт.

21

PKT505825E4

CAGE;NEEDLE

desc: .. CAGE

3шт.

22

PKT597132

CAGE;NEEDLE

desc: .. CAGE

3шт.

23

PBN506006

CAGE;NEEDLE

desc: .. CAGE

4шт.

24

35050BAA-024

RING;THRUST 60

desc: .. BAGUE DE BLOCAGE

2шт.

25

63050-AA-285

RING;THRUST 104A

desc: .. BAGUE DE BLOCAGE

1шт.

26

63050-AA-289

RING;THRUST 178

desc: .. BAGUE DE BLOCAGE

1шт.

27

3550800193

SHIM 178

desc: .. CALE

1шт.

29

OSBM20100

BOLT;SOCKET M20X2.5X100

desc: .. BOULON A 6 PANS

20шт.

30

OSBM1035

BOLT;SOCKET M10X1.5X35

desc: .. BOULON A 6 PANS

20шт.

31

PWBM1230M

BOLT

desc: .. BOULON A 6 PANS

12шт.

32

OBP12

PLUG

REP_PNO: 208287

3шт.

33

35050BAA-033

BEARING;ANGULAR

desc: .. ROULEMENT A AIGUILLES

2шт.

34

P297

SEAL;FLOATING

desc: .. JOINT

1шт.

35

35050-00-035

SHIM

desc: .. CALE

1шт.

36

OSPV625

PIN;SPRING

desc: .. BROCHE

6шт.

37

OSPV832

PIN;SPRING

desc: .. BROCHE

4шт.

41

OSSM1030

SCREW;SET

desc: .. VIS

2шт.

42

35050BAA-042

SHIM 59

desc: .. CALE

1шт.

44

OSR50

RING;SNAP

desc: .. BAGUE DE BLOCAGE

3шт.

45

PWR110

CLIP

desc: .. CLIP

1шт.

46

PWR130

CLIP W

desc: .. CLIP

1шт.

901

3550BX067-05

SUB-ASS'Y;CARRIER (NO.1)

desc: SUPPORT

1шт.

902

3550BX000-06

SUB-ASS'Y;CARRIER (NO.2)

desc: SUPPORT

1шт.

903

3550BX000-07A

SUB-ASS'Y;CARRIER (NO.3)

desc: SUPPORT

1шт.
