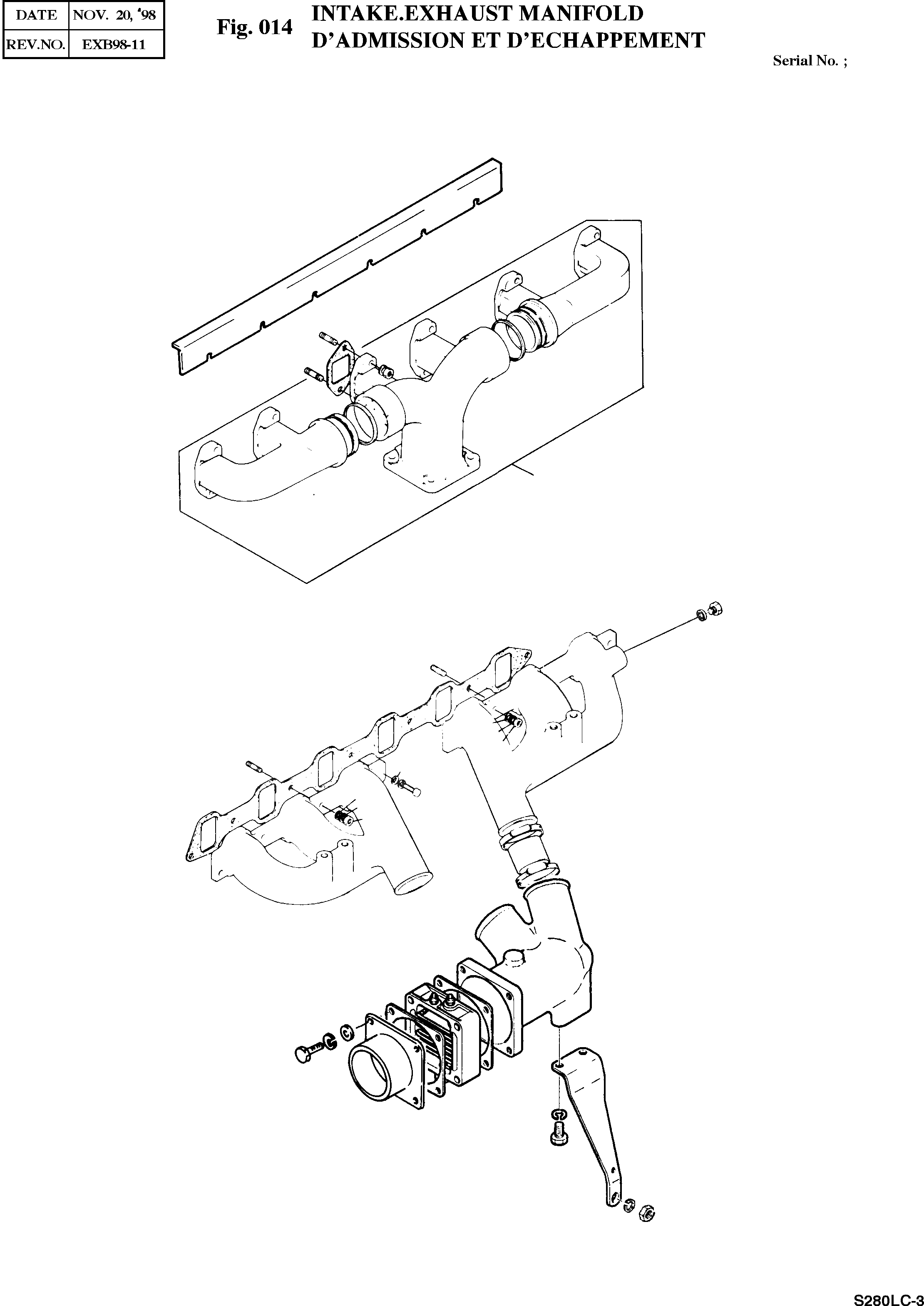

Запчасти Doosan Daewoo INTAKE. EXHAUST MANIFOLD ENGINE PARTS

1

06.06226-0809

BOLT;STUD M10X35

desc: GOUJON

6шт.

1

06.06226-0811

BOLT;STUD M10X35

desc: GOUJON

6шт.

2

65.90201-0049

BOLT;STUD M10X1.5X35

desc: GOUJON

1шт.

2

65.90201-0154

BOLT;STUD M10X1.5X35

desc: GOUJON

2шт.

2

65.90201-0056

BOLT;STUD M10X1.5X35

desc: GOUJON

5шт.

2

65.90201-0056

BOLT;STUD M10X1.5X35

desc: GOUJON

4шт.

3

65.08901-0012

GASKET(EXHAUST MANIFOLD)

desc: JOINT DE COLLECTEUR D'ECHAPPEMENT

6шт.

4

65.08100-6025

EXHAUST MANIFOLD ASS'Y

SERIAL: 400254

1шт.

4

65.08100-6043

EXHAUST MANIFOLD ASS'Y

SERIAL: 400255

1шт.

5

65.08101-0100

MANIFOLD;EXHAUST(L.H)NA

SERIAL: 400254

1шт.

5

65.08101-0177

MANIFOLD;EXHAUST(L.H)NA

SERIAL: 400255

1шт.

6

65.08101-0102

MANIFOLD;EXHAUST(R.H)NA

SERIAL: 400254

1шт.

6

65.08101-0178

MANIFOLD;EXHAUST(R.H)NA

SERIAL: 400255

1шт.

7

65.08101-0101

MANIFOLD;EXHAUST(M)NAJ

SERIAL: 400254

1шт.

7

65.08101-0179

MANIFOLD;EXHAUST(M)NAJ

SERIAL: 400255

1шт.

8

65.96501-0008

RING;SEAL(EXHAUST MANIFOLD)

desc: . BAGUE D'ETANCHEITE

4шт.

10

06.15010-2312

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

12шт.

11

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

6шт.

11

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS M10

24шт.

12

65.08120-5008F

SCREEN;HEAT

desc: ECRAN THERMIQUE

1шт.

14

06.06225-0809

BOLT;STUD M12X1.5

desc: GOUJON

2шт.

15

65.08902B0017

GASKET(INTAKE MANIFOLD)

desc: JOINT(COLLECTEUR ADMISSION)

1шт.

16

65.08201-0036

INTAKE MANIFOLD ASS'Y(FRONT)

desc: ENSEMBLE TUBULURE D'ADMISSION

1шт.

17

65.08201-0037A

INTAKE MANIFOLD ASS'Y(REAR)

desc: ENSEMBLE TUBULURE D'ADMISSION

1шт.

18

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

8шт.

19

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

8шт.

20

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

2шт.

21

06.02090-0513

BOLT;SOCKET HEAD

desc: BOULON 6 PANS CREUX

6шт.

24

06.67020-0112

CLAMP;HOSE NWS5748

desc: COLLIER A DURITE

4шт.

25

65.96301-0179

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

2шт.

26

65.08202-0073

INTAKE STAKE ASS'Y

desc: ENSEMBLE TUBULURE D'ADIMISSION

1шт.

27

65.08240-0009

BRACKET(INTAKE STAKE)

desc: SUPPORT

1шт.

28

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

2шт.

28

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

29

06.01283-7214

BOLT;HEX. M10X22

desc: BOULON A 6 PANS

2шт.

29

06.01923-3214

BOLT;HEX. ASS'Y M10X22

desc: BOULON 6 PANS

2шт.

30

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE

1шт.

31

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU 6 PANS

1шт.

34

06.08092-2408

SCREW;PLUG M26X1.5

desc: BOUCHON FILETE

1шт.

35

06.56190-0728

RING;SEAL A26X32

desc: BAGUE D'ETANCHEITE

1шт.

36

65.08202-0076

STAKE;INTAKE

desc: TUBULURE D'ADIMISSION

1шт.

37

06.01014-9219

BOLT;HEX. M10X70

desc: BOULON A 6 PANS

4шт.

37

06.01924-3225

BOLT;HEX. M10X70

desc: BOULON A 6 PANS

4шт.

38

06.15010-2312

WASHER;PLAIN 10.5

desc: RONDELLE

4шт.

38

06.15010-2312

WASHER;PLAIN 10.5

desc: RONDELLE

39

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

4шт.

39

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

40

65.08902-0010

GASKET

desc: JOINT

2шт.

41

65.26803-7021

HEATER;AIR

desc: RECHAUFFEUR D'AIR

1шт.
