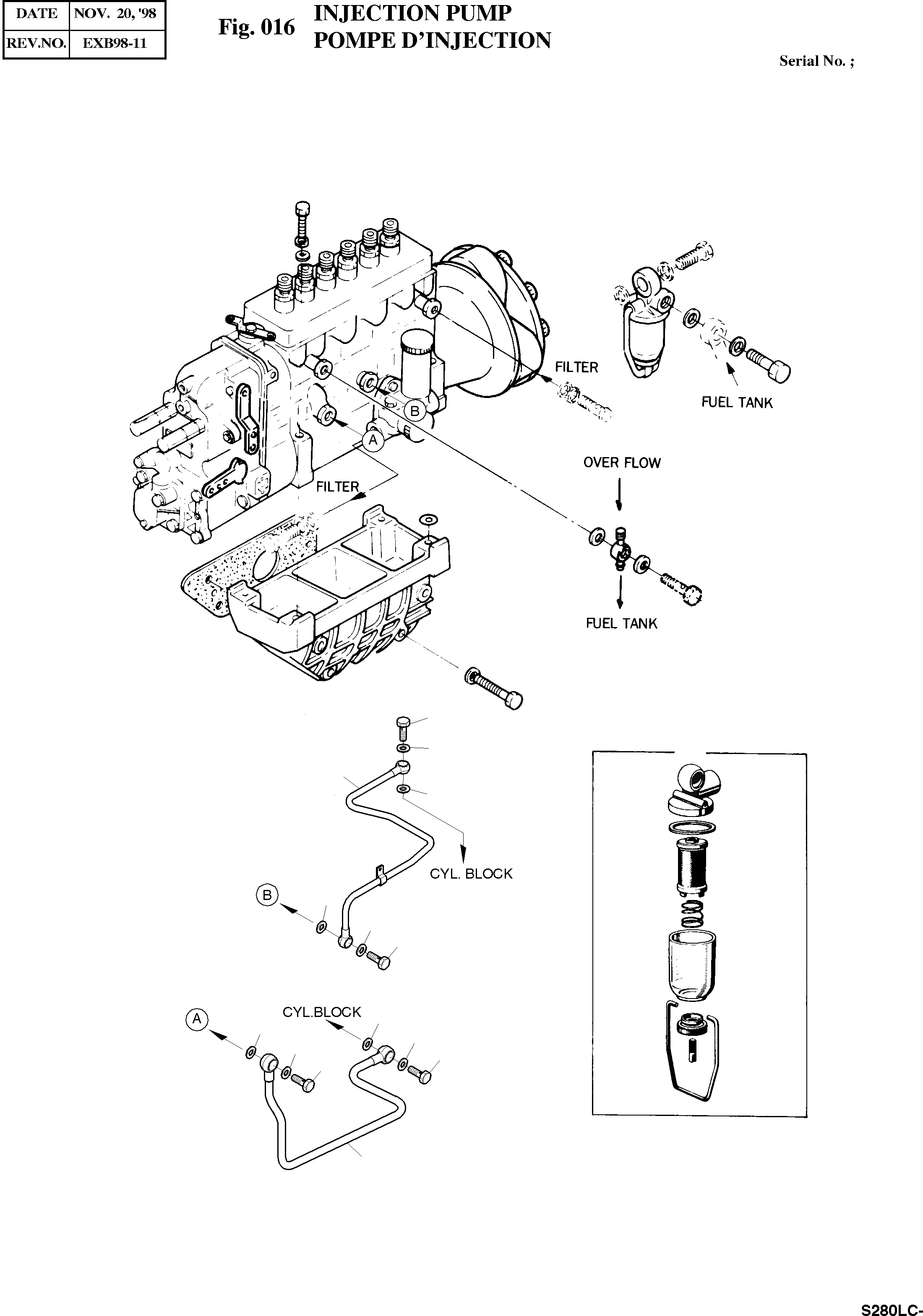

Запчасти Doosan Daewoo INJECTION PUMP ENGINE PARTS

1

65.11101-7245B

PUMP;INJECTION

desc: POMPE D'INJECTION

1шт.

2

65.12501-7019

FUEL STRAINER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

3

81.12903-0001

GASKET

desc: . JOINT

1шт.

4

81.12104-0003

FILTER;STRAINER

desc: . FILTRE

1шт.

5

81.12102-0002

BALL;FILTER(GLASS)

desc: . COUPELLE(VERRE)

1шт.

6

06.78140-2404

SCREW;HOLLW A14X1.5

desc: VIS CREUSE

1шт.

7

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

8

65.98101-0008

DOUBLE BANJO UNION ASS'Y

desc: ENSEMBLE RACCORD BANJO DOUBLE

1шт.

11

06.11405-0005

SHIM 0.1§®(R.H.. L.H.)

desc: CALE

1шт.

11

06.11405-0006

SHIM 0.15§®(R.H.. L.H.)

desc: CALE

1шт.

11

06.11405-0007

SHIM 0.2§®(R.H.. L.H.)

desc: CALE

1шт.

11

06.11405-0008

SHIM 0.5§®(R.H.. L.H.)

desc: CALE

1шт.

12

65.11401-0029

BRACKET;FUEL INJECTION PUMP

desc: SUPPORT

1шт.

12

65.11401-0033

BRACKET;FUEL INJECTION PUMP

desc: SUPPORT

1шт.

13

06.01493-4311

BOLT;HEX. M12X1.5X60

desc: BOULON A 6 PANS

2шт.

13

06.01493-4312

BOLT;HEX. M12X1.5X65

desc: BOULON A 6 PANS

2шт.

13

06.01493-4315

BOLT;HEX. M12X1.5X80

desc: BOULON A 6 PANS

2шт.

13

06.01493-4320

BOLT;HEX. M12X1.5X110

desc: BOULON A 6 PANS

2шт.

14

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

8шт.

14

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

4шт.

17

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

4шт.

17

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

18

06.01283-7228

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

4шт.

18

06.01923-3228

BOLT;HEX. ASS'Y M10X85

desc: BOULON 6 PANS

4шт.

19

65.11405-0009

SHIM 0.1§®

desc: CALE 0.1mm

4шт.

19

65.11405-0010

SHIM 0.3§®

desc: CALE 0.3mm

4шт.

19

65.11405-0013

SHIM 0.2§®

desc: CALE 0.2mm

1шт.

20

65.05701-5332

PIPE;OIL(BLOCK-I/P)

desc: TUYAU D'HUILE

1шт.

21

65.98150-0028

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

21

65.98150-0052

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

22

06.56180-0714

RING;SEAL A10X16

desc: BAGUE D'ETANCHEITE

3шт.

23

65.05701-5188

PIPE;OIL(I/P-BLOCK)

desc: TUYAU D'HUILE

1шт.

24

06.78140-2404

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

25

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

4шт.
