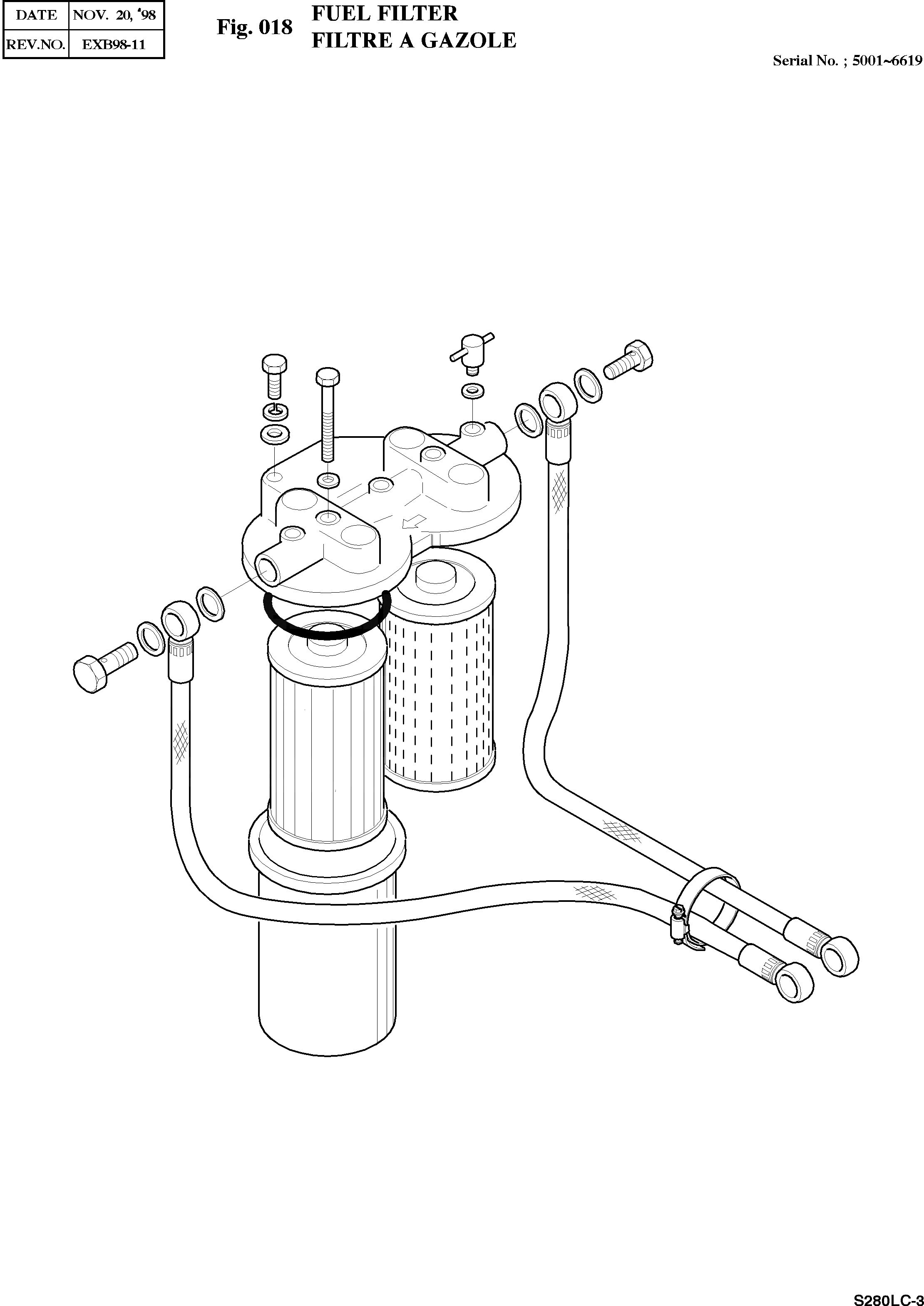

Запчасти Doosan Daewoo FUEL FILTER ENGINE PARTS

-

65.12501-7003

FUEL FILTER ASS'Y

SERIAL: 5001-6619

1шт.

1

65.12504-5002

COVER;FUEL FILTER

desc: . COUVERCLE

1шт.

2

65.96507-0003

RING;SEAL

desc: . BAGUE D'ETANCHEITE

2шт.

3

65.12509-5002

SCREW;BREATHER M8

desc: . VIS

2шт.

4

06.56180-0811

RING;SEAL A8X12

desc: . BAGUE D'ETANCHEITE

2шт.

5

06.01014-9120

BOLT;HEX. M8X75

desc: . BOULON A 6 PANS

2шт.

5

06.01013-7122

BOLT;HEX. M8X85

desc: . BOULON A 6 PANS

2шт.

6

65.12506-0006

PACKING

desc: . JOINT

2шт.

7

65.12503-5002

ELEMENT;FUEL FILTER MICRO

SERIAL: 5001-6619

1шт.

8

65.12503-5004

ELEMENT;FUEL FILTER MICRO

SERIAL: 5001-6619

1шт.

9

65.12502-5002

HOUSING;FILTER

desc: . BOITIER DE FILTRE A GAZOLE

2шт.

10

06.01493-4306

BOLT;HEX. M12X1.5X35

desc: BOULON A 6 PANS

2шт.

10

06.01953-3318

BOLT;HEX. M12X1.5X35

desc: BOULON 6 PANS

2шт.

11

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

2шт.

11

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

12

06.15010-2313

WASHER 12

desc: RONDELLE PLATE 12

2шт.

12

06.15010-2313

WASHER 12

desc: RONDELLE PLATE 12

13

65.96341-0101

HOSE;FUEL(FILTER IN)

desc: TUYAU A GAZOLE

1шт.

14

65.96341-0097

HOSE;FUEL(FILTER OUT)

desc: TUYAU A GAZOLE

1шт.

14

65.96341-0102

HOSE;FUEL(FILTER OUT)

desc: TUYAU A GAZOLE

1шт.

15

65.90420-0004

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

16

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

4шт.

17

65.97460-0001

BAND;TENSION

desc: COLLIER

1шт.
