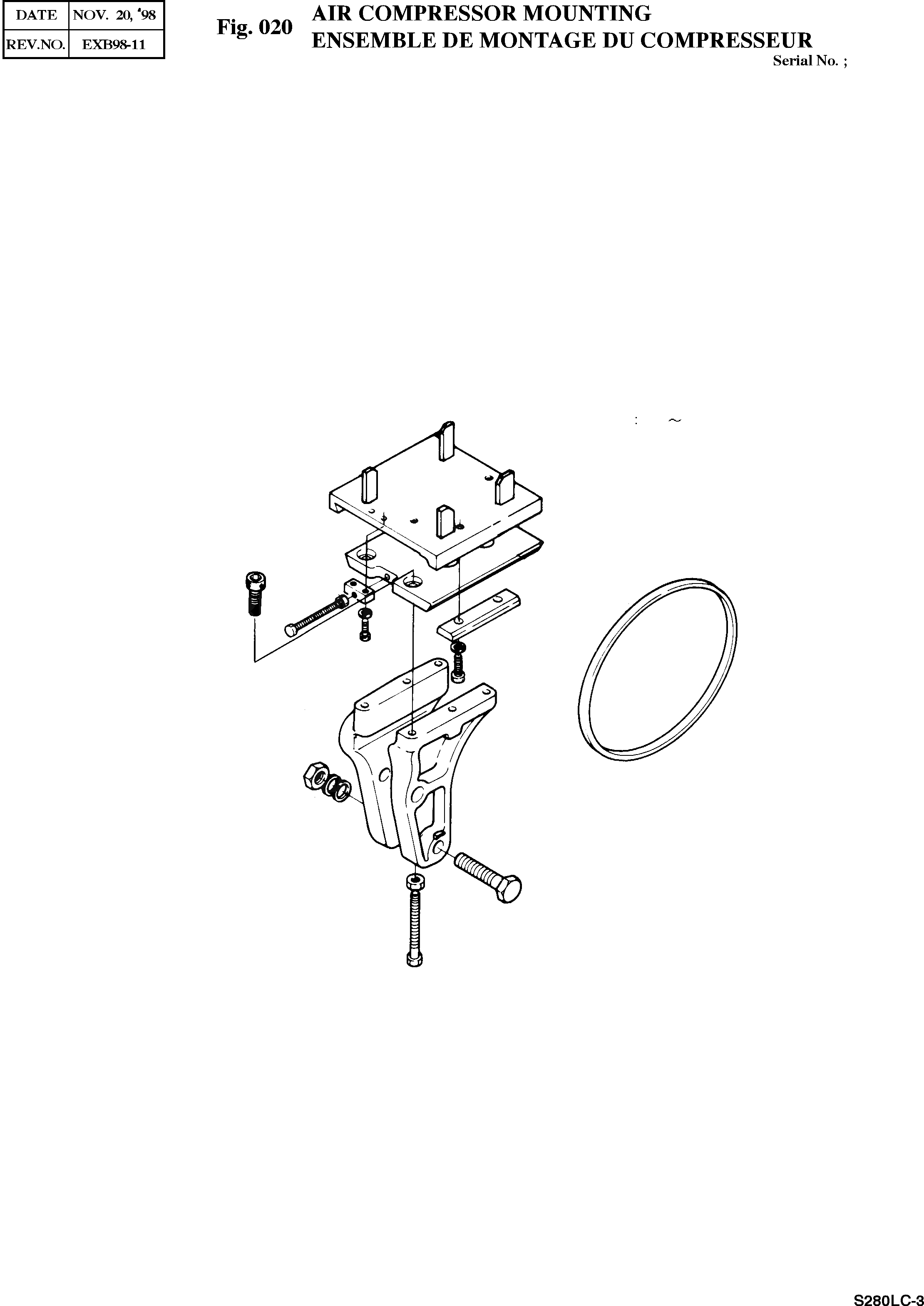

Запчасти Doosan Daewoo AIR COMPRESSOR MOUNTING ENGINE PARTS

1

65.54301-0002

MOUNTING BRACKET ASS'Y(FRONT)

desc: ENSEMBLE SUPPORT DE MONTAGE

1шт.

2

65.54301-0003

MOUNTING BRACKET ASS'Y(REAL)

desc: ENSEMBLE SUPPORT DE MONTAGE

1шт.

3

06.01493-4522

BOLT;HEX. M16X1.5X130

desc: BOULON A 6 PANS

2шт.

4

06.15010-2316

WASHER 17

desc: RONDELLE PLATE 17

2шт.

5

06.16731-2111

WASHER;SPRING A16

desc: RONDELLE ELASTIQUE A16

2шт.

6

06.11063-9218

NUT;HEX. M16X1.5

desc: ECROU 6 PANS

2шт.

7

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

1шт.

7

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

1шт.

8

06.01283-7228

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

1шт.

8

06.01283-7222

BOLT;HEX. M10X55

desc: BOULON A 6 PANS

1шт.

9

65.96801-0059

V-BELT 2X13.0X1600

SERIAL: 5299

1шт.

9

65.96801-0120

V-BELT 1X13.0X1400

SERIAL: 5300

1шт.

10

06.01283-7112

BOLT;HEX. M8X18

desc: BOULON A 6 PANS

6шт.

11

65.54300-6003

MOUNTING PLATE ASS'Y

desc: ENSEMBLE PLAQUE DE MONTAGE

1шт.

11

65.54300-6007

MOUNTING PLATE ASS'Y

SERIAL: 400075

1шт.

12

65.54302-5006

PLATE;MOUNTING

desc: . PLAQUE

1шт.

13

65.54302-0004

PLATE;SLIDING

desc: . PLAQUE

1шт.

13

65.54302-0007

PLATE;SLIDING

desc: . PLAQUE

1шт.

14

65.54306-0006

PLATE;CLAMPING

desc: . PLAQUE

1шт.

15

06.01284-7512

BOLT;HEX. M10X25

desc: . BOULON A 6 PANS

2шт.

16

06.16731-2108

WASHER;SPRING A10

desc: . RONDELLE ELASTIQUE

2шт.

17

65.97480-0100

BRACKET;TENSION

desc: . SUPPORT

1шт.

17

65.97480-0148

BRACKET;TENSION

desc: . SUPPORT

1шт.

18

06.01283-6914

BOLT;HEX. M6X22

desc: . BOULON A 6 PANS

2шт.

18

06.01283-6916

BOLT;HEX. M6X22

desc: . BOULON A 6 PANS

2шт.

19

06.16731-2105

WASHER;SPRING A6

desc: . RONDELLE ELASTIQUE

2шт.

19

06.16731-2105

WASHER;SPRING A6

desc: . RONDELLE ELASTIQUE

20

65.90441-0034

BOLT;TENSION

desc: . BOULON 6 PANS

1шт.

20

65.90441-0034

BOLT;TENSION

desc: . BOULON 6 PANS

1шт.

21

06.11063-8214

NUT;HEX M8

desc: . ECROU

1шт.
