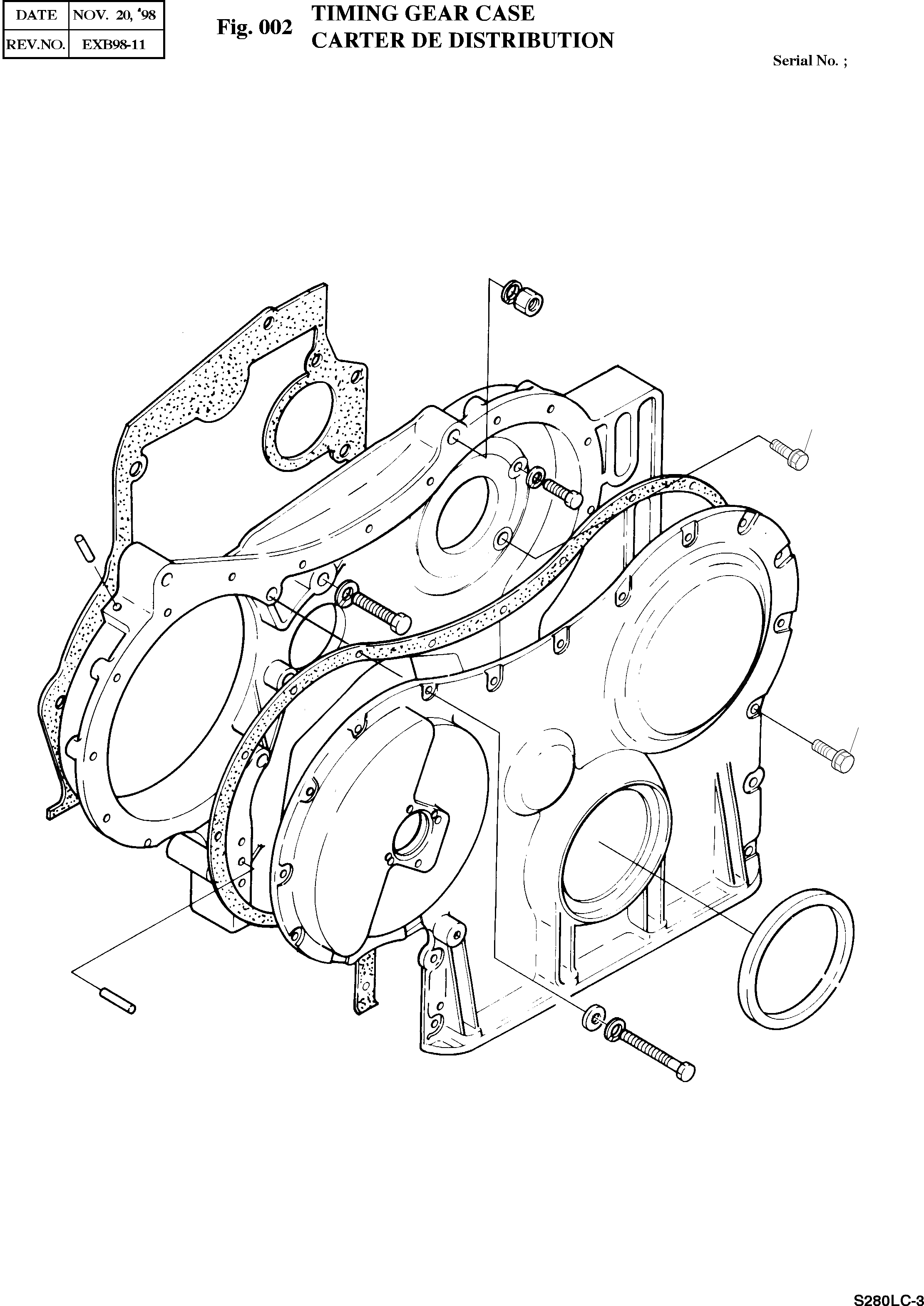

Запчасти Doosan Daewoo TIMING GEAR CASE ENGINE PARTS

1

65.01903A0027

GASKET;TIMING GEAR CASE

desc: JOINT

1шт.

2

65.01304-0004

CASE;TIMING REAR

SERIAL: 500189

1шт.

2

65.01304-0004G

CASE;TIMING REAR

SERIAL: 500190

1шт.

3

06.01283-7215

BOLT;HEX. M10X25

ICA: I

2шт.

3

06.01913-3215

BOLT;HEX. M10X25

SERIAL: 940222

2шт.

3

06.01914-3215

BOLT;HEX. M10X25

SERIAL: 940223

2шт.

4

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

2шт.

4

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

5

06.01733-4311

BOLT;HEX. M12X1.5X30

SERIAL: 940223

6шт.

5

06.01943-3317

BOLT;HEX. ASS'Y M12X1.5X30

SERIAL: 940223

6шт.

6

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

6шт.

6

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

7

06.01493-4309

BOLT;HEX. M12X1.5X50

desc: BOULON A 6 PANS

2шт.

8

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

2шт.

9

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU 6 PANS

1шт.

10

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

1шт.

11

06.22022-0712

PIN;DOWEL

desc: GOUPILLE D'AJUSTAGE

1шт.

12

65.90720-0003

WASHER

desc: RONDELLE

2шт.

12-1

06.16731-2105

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE

2шт.

13

06.01283-6917

BOLT;HEX. M6X30

desc: BOULON A 6 PANS

2шт.

14

65.01903D0176

GASKET;TIMING GEAR CASE COVER

desc: JOINT

1шт.

15

65.01305-5029C

TIMING GEAR CASE COVER ASS'Y

desc: ENSEMBLE COUVERCLE DE CARTER DE

1шт.

16

06.22022-0908

PIN;DOWEL 6m6X12

SERIAL: 950831

2шт.

16

06.22022-0907

PIN;DOWEL 6m6X10

SERIAL: 950901

2шт.

19

65.01283-6914

BOLT;HEX. M6X22

SERIAL: 940222

17шт.

19

06.01923-2914

HEX. BOLT ASS'Y M6X22

SERIAL: 940223

17шт.

20

65.01510-0018

SEAL;CRANK SHAFT(FRONT)

SERIAL: 309999

1шт.

20

65.01510-0026

SEAL;CRANK SHAFT(FRONT)

SERIAL: 400001

1шт.
