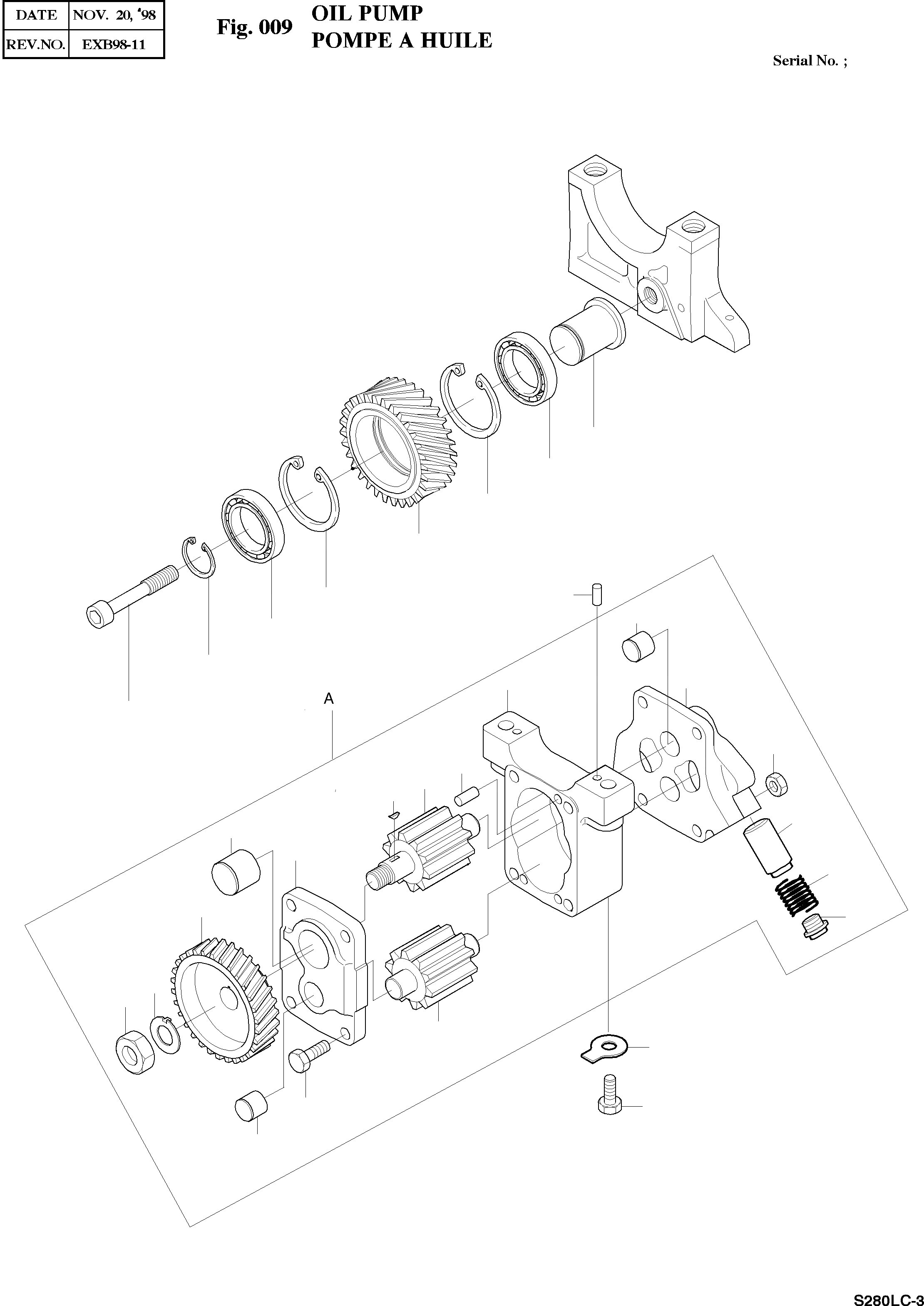

Запчасти Doosan Daewoo OIL PUMP ENGINE PARTS

1

65.05204-0036

GEAR;IDLE

desc: PIGNON FOU

1шт.

2

06.31420-0314

BEARING;BALL #6006

desc: ROULEMENT A BILLES #6006

2шт.

3

06.29020-0132

RING;SNAP 55X2

desc: CIRCLIP

2шт.

4

65.05205-0018

PIN;IDLE GEAR

desc: GOUPILLE DE PIGNON FOU

1шт.

6

06.29010-0125

RING;SNAP 30X2

desc: CIRCLIP

1шт.

7

65.90030-0009

BOLT;HES.SOCKET HEAD

desc: BOULON A 6 PANS

1шт.

A

65.05100-6023

OIL PUMP ASS'Y

desc: POMPE A HUILE

1шт.

8

65.05201-0034

GEAR;OIL PUMP DRIVE

desc: . NESEMBLE POMPE A HUILE

1шт.

9

65.05102-0015

HOUSING;OIL PUMP

desc: . BOITIER DE POMPE A HUILE

1шт.

10

65.05104-5003

GEAR;PUMP

desc: . PIGNON DE POMPE

1шт.

11

65.05104-5004

GEAR;PUMP

desc: . PIGNON DE POMPE

1шт.

12

65.05103-5012

OIL PUMP COVER ASS'Y

desc: . ENSEMBLE COUVERCLE POMPE A HUILE

1шт.

12-1

65.93020-0007

BUSH

SC: D

1шт.

13

65.05103-5015

OIL PUMP COVER ASS'Y

desc: . ENSEMBLE COUVERCLE POMPE A HUILE

1шт.

13-1

65.93020-0007

BUSH

SC: D

1шт.

13-2

65.93020-0006

BUSH

SC: D

1шт.

14

06.22022-0909

PIN;DOWEL 6m6X14

desc: . GOUJON D'ASSEMBLAGE

4шт.

15

65.01013-9118

BOLT;HEX

desc: . BOULON 6 PANS

4шт.

16

65.90510-0012

NUT;LOCK

desc: . ECROU DE BLOCAGE

4шт.

17

06.29141-0207

KEY;WOODRUFF

desc: . CLAVETTE WOODRUFF

1шт.

18

06.16050-0311

WASHER;LOCK

desc: . RONDELLE DE BLOCAGE

1шт.

19

06.11053-9217

NUT;HEX

desc: . ECROU 6 PANS

1шт.

20

65.05410-0025

PLUNGER;VALVE

desc: . PLONGEUR

1шт.

21

65.97601-0110

SPRING;COMPRESSION

desc: . RESSORT

1шт.

22

65.90310-0104

SCREW;PLUG

desc: . VIS

1шт.

23

06.22022-0907

PIN;DOWEL 6m6X10

desc: GOUPILLE D'AJUSTAGE

2шт.

24

06.90801-0038

WASHER;LOCK

desc: RONDELLE FREIN

2шт.

25

06.01013-9215

BOLT;HEX. M10X50

desc: BOULON A 6 PANS

2шт.
