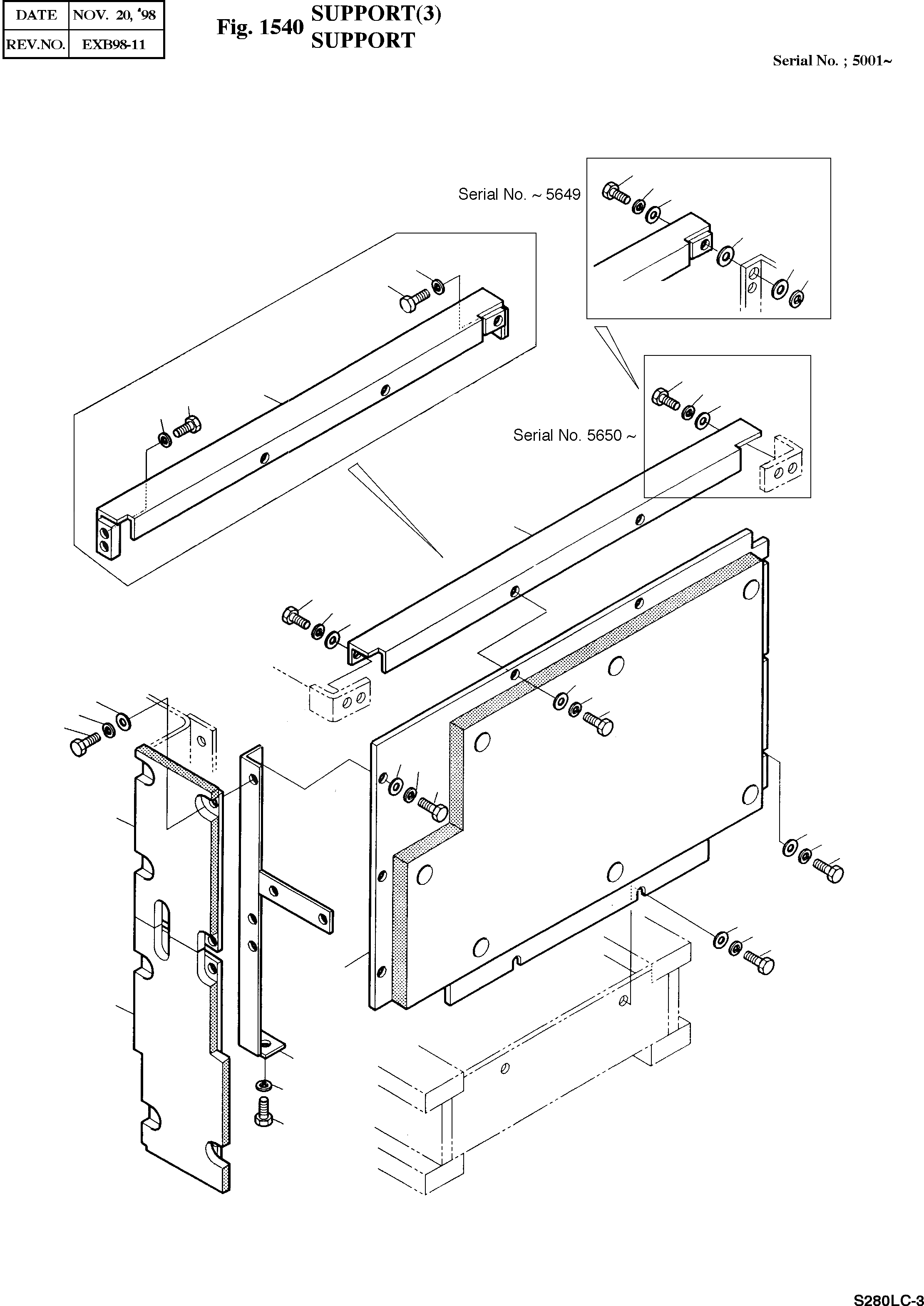

Запчасти Doosan Daewoo SUPPORT(3) BODY PARTS

-

2195-3864

SUPPORT

desc: SUPPORT

1шт.

2

2195-3592A

SUPPORT

desc: SUPPORT

1шт.

14

2195-3863A

SUPPORT

SERIAL: 5001-5649

1шт.

14

2195-3863B

SUPPORT

SERIAL: 5650

1шт.

16

2621-2578A

COVER

ICA: Y

1шт.

16

2621-2578B

COVER

desc: COUVERCLE

1шт.

17

2621-2579

COVER

ICA: Y

1шт.

17

2621-2579A

COVER

desc: COUVERCLE

1шт.

21

2621-2434C

COVER

SERIAL: 5001-5484

1шт.

21

2621-2434E

COVER

SERIAL: 5485

1шт.

25

S5102703

WASHER;SPRING M12

SERIAL: 5001-5649

5шт.

25

S5102703

WASHER;SPRING M12

SERIAL: 5650

7шт.

26

S0521351

BOLT M16X2.0X35

desc: BOULON A 6 PANS M16X2X35

1шт.

27

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE M16

1шт.

29

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

18шт.

29

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

17шт.

30

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

18шт.

30

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

17шт.

32

2114-1058D29

WASHER

desc: RONDELLE

18шт.

32

2114-1058D29

WASHER

desc: RONDELLE

17шт.

33

S0515353

BOLT M12X1.75X35

SERIAL: 5001-5649

5шт.

33

S0515353

BOLT M12X1.75X35

SERIAL: 5650

7шт.

34

2114-1058D46

WASHER

SERIAL: 5001-5649

1шт.

35

2114-1059D57

SHIM

SERIAL: 5001-5649

5шт.

36

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

4шт.
