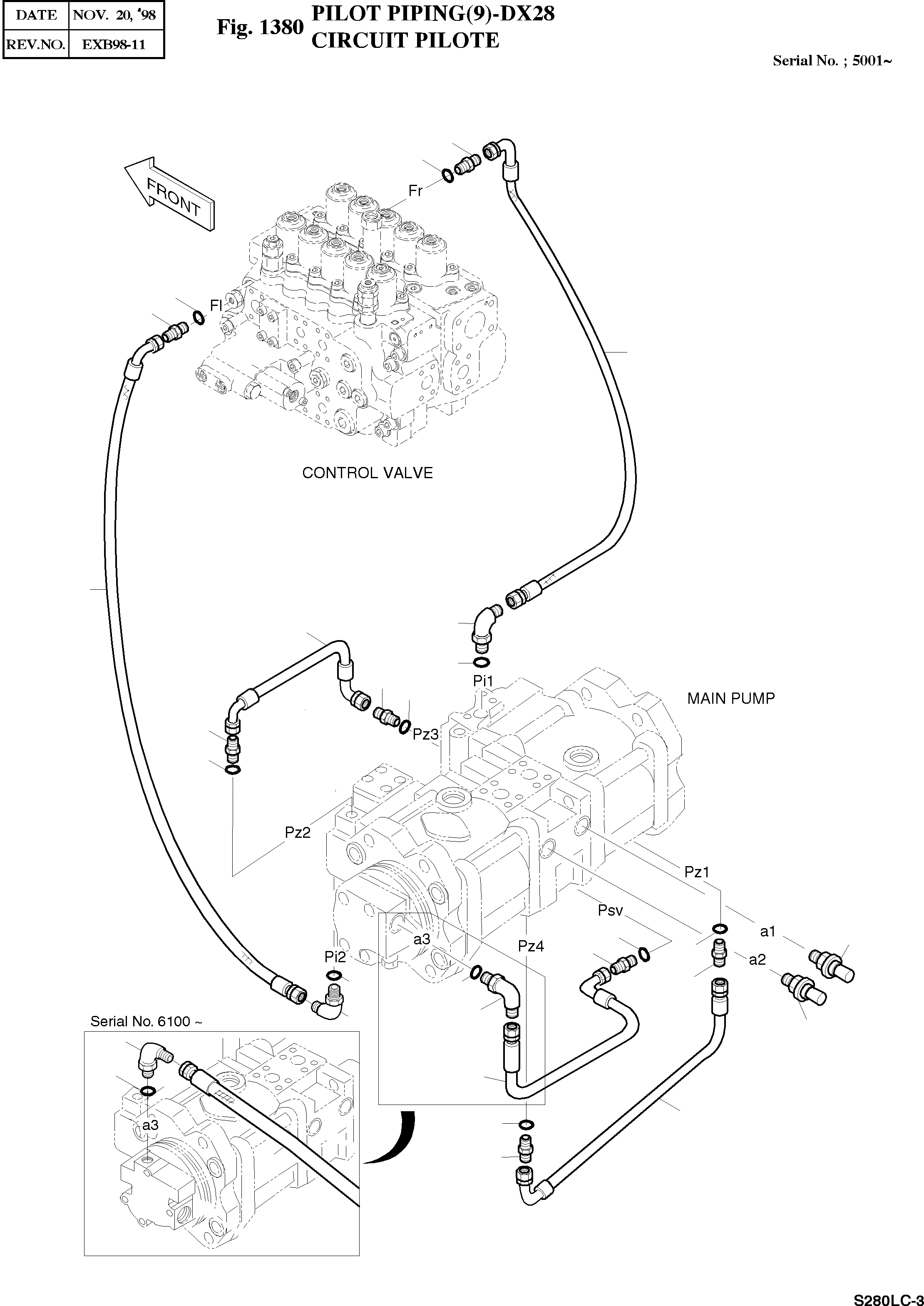

Запчасти Doosan Daewoo PILOT PIPING(9)-DX28 BODY PARTS

-

2400-1611

PILOT PIPING

SERIAL: 5001-6449

-2шт.

-

2400-1884

PILOT PIPING

SERIAL: 6450

-2шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

10шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD ADAPTATEUR

7шт.

40

2547-9036

SENSOR;PRESSURE

SERIAL: 5001-6674

2шт.

40

REP_PNO: 2530-1592

-1шт.

40

2547-9045

SENSOR;PRESSURE

SERIAL: 6675

2шт.

47

2181-1702D4

ELBOW PF1/4(O)XPF1/4

desc: COUDE

3шт.

52

2184-1046D126

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1046D132

HOSE PF1/4-590L

SERIAL: 5001-6099

1шт.

57

2184-1046D162

HOSE PF1/4-920L

SERIAL: 6100

1шт.

64

2184-1046D79

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D149

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1061D185

HOSE PF1/4-480L

desc: TUYAU FLEXIBLE

1шт.
