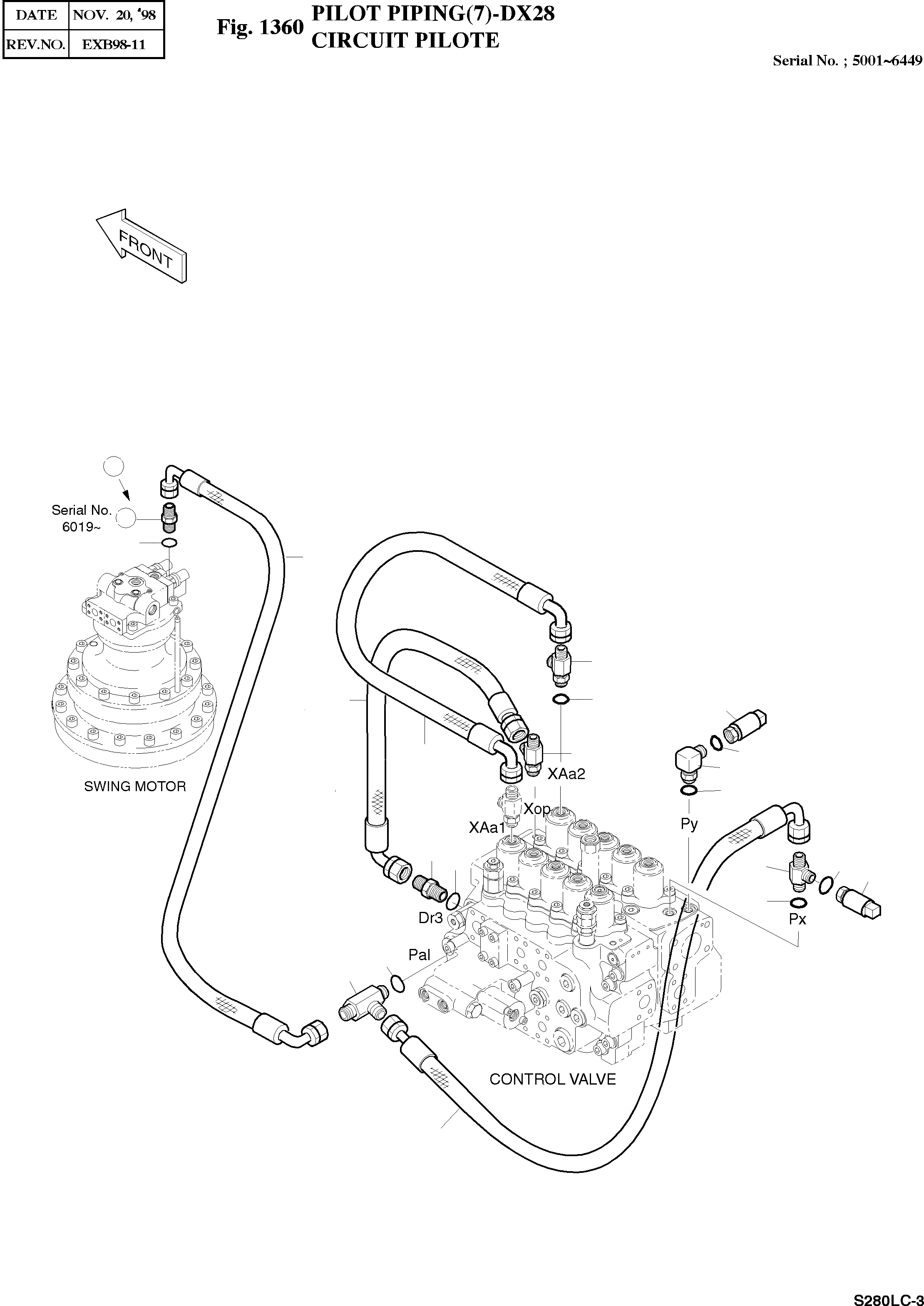

Запчасти Doosan Daewoo PILOT PIPING(7)-DX28 BODY PARTS

-

2400-1611

PILOT PIPING

SERIAL: 5001-6449

-2шт.

32

S8000111

O-RIN P11

SERIAL: 5001-5660

7шт.

32

S8000111

O-RIN P11

SERIAL: 5661

9шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 5001-5660

3шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

SERIAL: 5661

2шт.

35

S8180221

PACKING

SERIAL: 5001-5660

2шт.

36

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

2шт.

41

2549-1135D1

SWITCH;PRESSURE

SERIAL: 5001-5660

2шт.

41

2549-9112

SWITCH;PRESSURE

SERIAL: 5661

2шт.

46

2181-1126D75

ADAPTER;S PFO1/4-PF1/4

SERIAL: 6019

1шт.

50

2181-2296

ELBOW PF1/4(O)XPF1

SERIAL: 5001-5660

1шт.

50

2181-2295D4

ELBOW PF1/4(O)XPF1/4

SERIAL: 5661

1шт.

55

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.

60

2181-2263A

ADAPTER PF1/4(O)XPF1/4

SERIAL: 5001-5660

1шт.

60

2181-2635

ADAPTER PF1/4(O)XPF1/4

SERIAL: 5661

1шт.

67

2184-1061D176

HOSE (90-90)PF1/4-250L

desc: TUYAU FLEXIBLE

1шт.

100

2184-1046D198

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1061D71

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.
