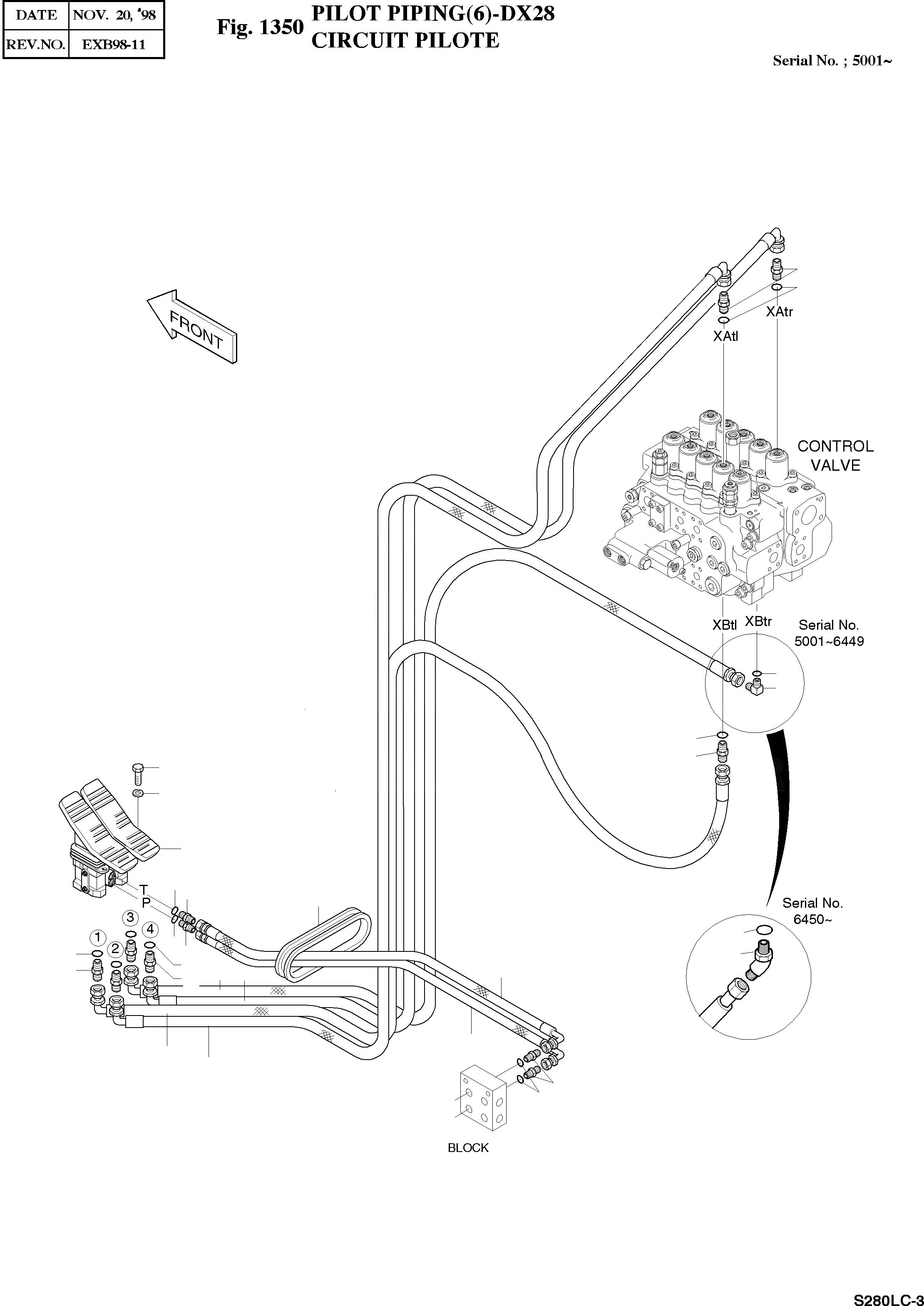

Запчасти Doosan Daewoo PILOT PIPING(6)-DX28 BODY PARTS

-

2400-1611

PILOT PIPING

SERIAL: 5001-6449

-2шт.

-

2400-1884

PILOT PIPING

SERIAL: 6450

-2шт.

5

2420-9096A

VALVE;PEDAL

ICA: Y

1шт.

5

2420-9292

VALVE;PEDAL

desc: VANNE

1шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

4шт.

11

2160-1201D1

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

12шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD ADAPTATEUR

11шт.

43

2181-2419D1

ELBOW

SERIAL: 6450

1шт.

44

2471-1133

FILTER;ADAPTER

desc: FILTRE

1шт.

47

2181-1702D4

ELBOW PFO1/4XPF1/4

SERIAL: 5001-6449

1шт.

53

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1046D216

HOSE PF1/4-3000L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1061D123

HOSE PF1/4-3400L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1061D125

HOSE PF1/4-3600L

desc: TUYAU FLEXIBLE

1шт.
