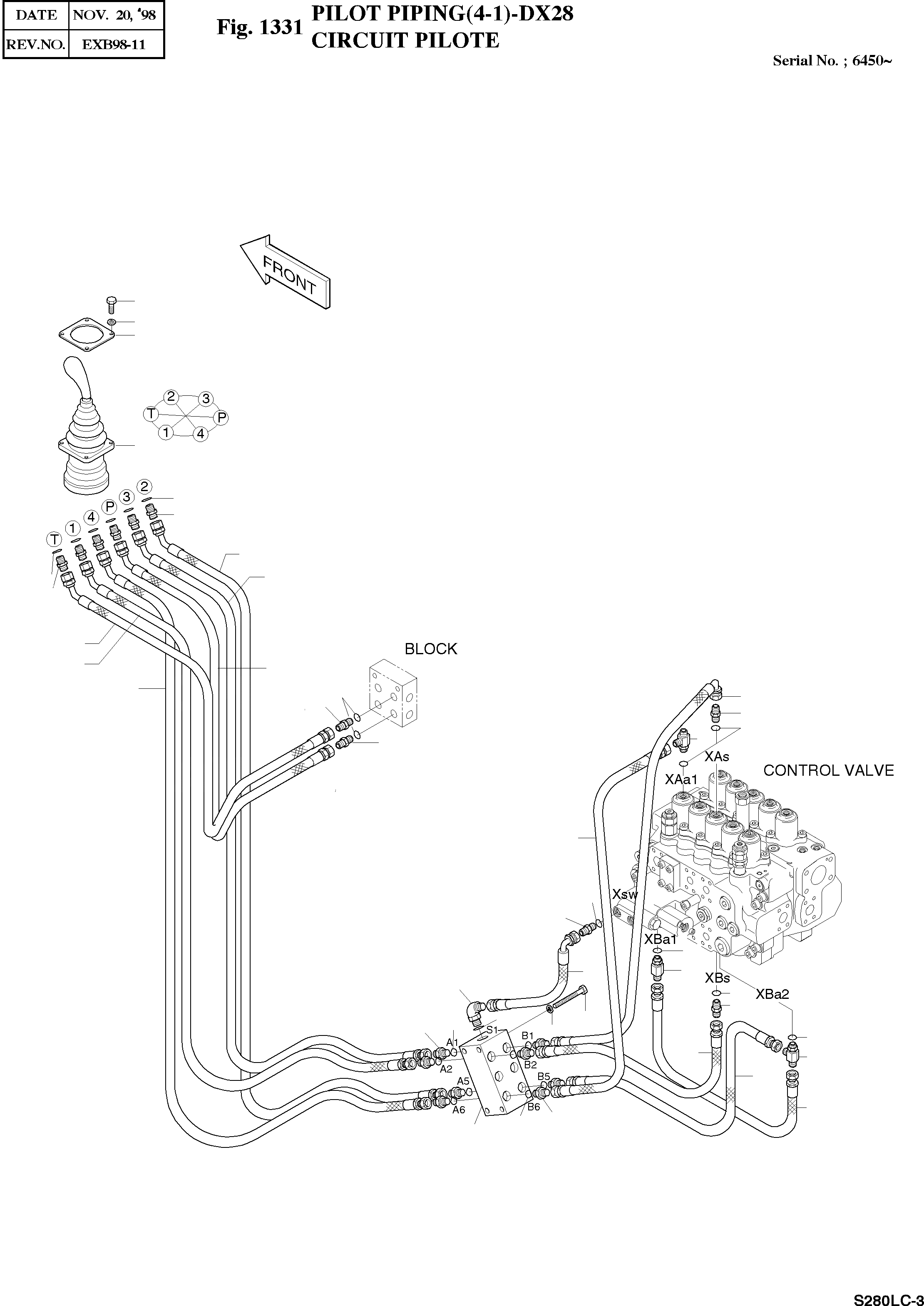

Запчасти Doosan Daewoo PILOT PIPING(4-1)-DX28 BODY PARTS

-

2400-1884

PILOT PIPING

SERIAL: 6450

-2шт.

1

2420-9416

VALVE;REMOCON(L.H)

SERIAL: 6450-6699

1шт.

1

2420-9543

VALVE;REMOCON(L.H)

SERIAL: 6700

1шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

14

2621-2752

PLATE

desc: PLAQUE

1шт.

20

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

24шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD ADAPTATEUR

16шт.

36

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

2шт.

44

2471-1133

FILTER;ADAPTER

desc: FILTRE

1шт.

47

2181-1702D4

ELBOW PF1/4(O)XPF1/4

desc: COUDE

2шт.

68

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1046D68

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1045D61

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

82

2184-1249D2

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

83

2184-1249D2

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1249D21

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1249D21

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1249D21

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

87

2184-1249D21

HOSE PF1/4-3900L

desc: TUYAU FLEXIBLE

1шт.

111

2420-9378A

VALVE;SHOCKLESS PF1/4(O)XPF1/4

desc: VANNE

1шт.

119

2184-1045D64

HOSE PF1/4-920L

desc: TUYAU FLEXIBLE

1шт.

120

2184-1045D64

HOSE PF1/4-920L

desc: TUYAU FLEXIBLE

1шт.

121

S0557353

BOLT M8X1.25X100

desc: BOULON A 6 PANS

4шт.

122

2420-6535

VALVE;SHUTTLE

desc: VANNE

1шт.
