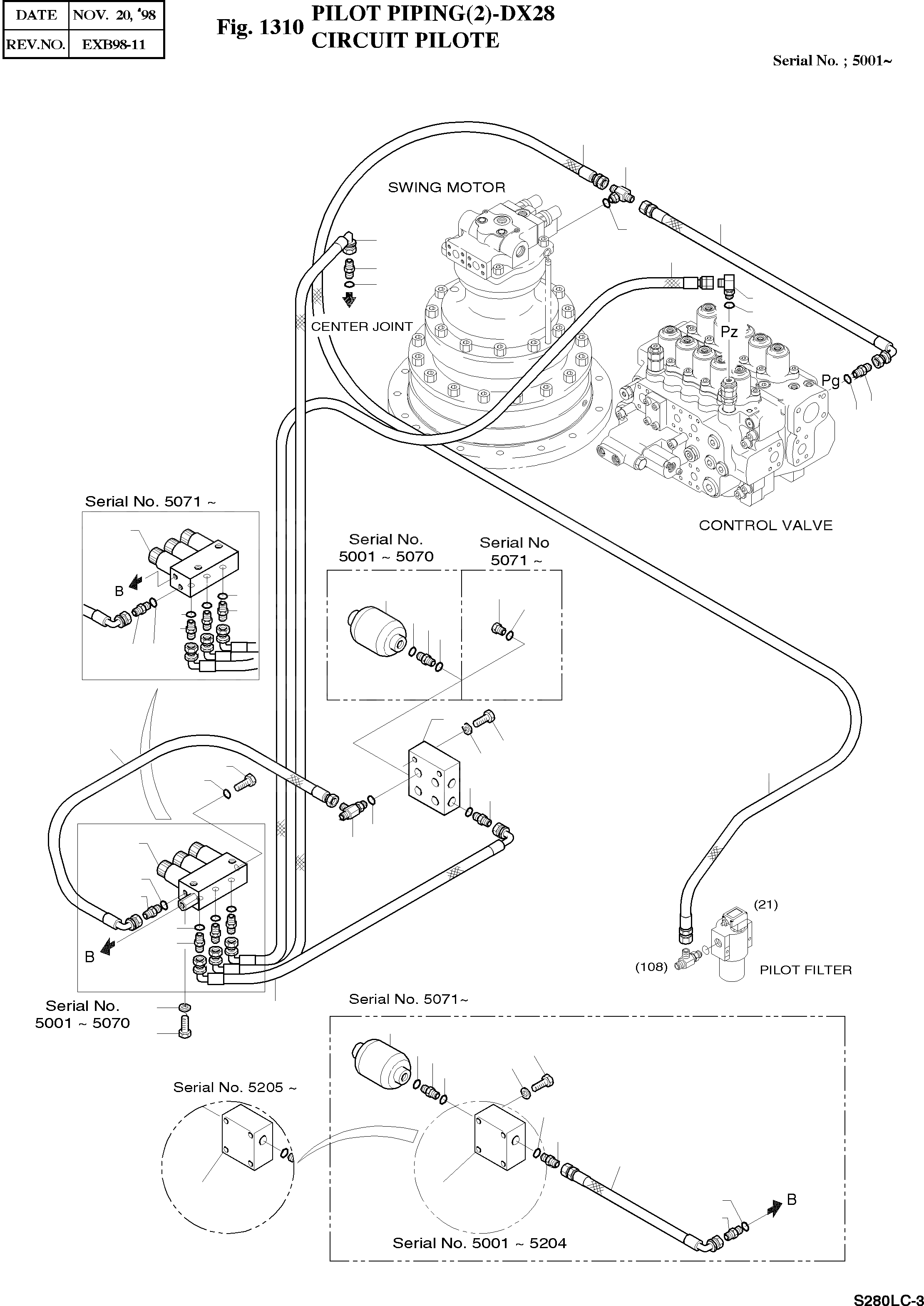

Запчасти Doosan Daewoo PILOT PIPING(2)-DX28 BODY PARTS

-

2400-1611

PILOT PIPING

SERIAL: 5001-6449

-2шт.

-

2400-1884

PILOT PIPING

SERIAL: 6450

-2шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

10

S5102503

WASHER;SPRING M8

SERIAL: 5001-5070

2шт.

10

S5102503

WASHER;SPRING M8

SERIAL: 5071

4шт.

13

2420-9323B

VALVE;SOLENOID

SERIAL: 5001-5071

1шт.

13

2420-9323C

VALVE;SOLENOID

SERIAL: 5072-6784

1шт.

13

2420-9323E

VALVE;SOLENOID

SERIAL: 6785

1шт.

16

S0556653

BOLT M8X1.25X60

desc: BOULON A 6 PANS

2шт.

17

2423-1316

BLOCK

desc: BLOC

1шт.

18

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

19

S0556553

BOLT M8X1.25X60

SERIAL: 5071

2шт.

24

2181-2281D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

1шт.

25

2460-9010

ACCMULATOR

ICA: Y

1шт.

25

2460-9033

ACCMULATOR

desc: RESERVOIR

1шт.

26

2181-2256A

ADAPTER PF1/2(O)XPF1/2

desc: RACCORD ADAPTATEUR

1шт.

27

S8180321

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.

28

2181-1126D6

ADAPTER PF1/2XPF1/2

SERIAL: 5071

1шт.

29

S8000181

O-RING P18

SERIAL: 5001-5070

2шт.

29

S8000181

O-RING P18

SERIAL: 5071

5шт.

30

2181-1126D20

ADAPTER PF3/8XPF1/2

SERIAL: 5071

1шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

9шт.

33

2181-1126D14

ADAPTER PF1/4(O)XPF1/4

desc: RACCORD ADAPTATEUR

5шт.

34

2181-1126D23

ADAPTER PF1/2(O)XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

36

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

desc: TE

1шт.

37

2181-1126D7

ADAPTER PF3/8(O)XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

38

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

39

2181-1950D3

PLUG PF1/2

SERIAL: 5071

1шт.

47

2181-1702D4

ELBOW PF1/4(O)XPF1/4

desc: COUDE

1шт.

48

2420-9356

BLOCK

SERIAL: 5071

1шт.

61

2184-1061D81

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1036D191

HOSE PF1/2-1000

SERIAL: 5071

1шт.

69

2184-1046D216

HOSE PF1/4-3000

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D52

HOSE PF1/4-1100

desc: TUYAU FLEXIBLE

1шт.

89

2184-1045D135

HOSE PF1/4-2750

desc: TUYAU FLEXIBLE

1шт.

99

2184-1046D162

HOSE PF1/4-920

desc: TUYAU FLEXIBLE

1шт.

101

2184-1061D90

HOSE PF3/8-600

desc: TUYAU FLEXIBLE

1шт.

107

2181-1950D1

PLUG PF1/4

SERIAL: 5071

1шт.

110

2423-1447

BLOCK

SERIAL: 5205

1шт.
