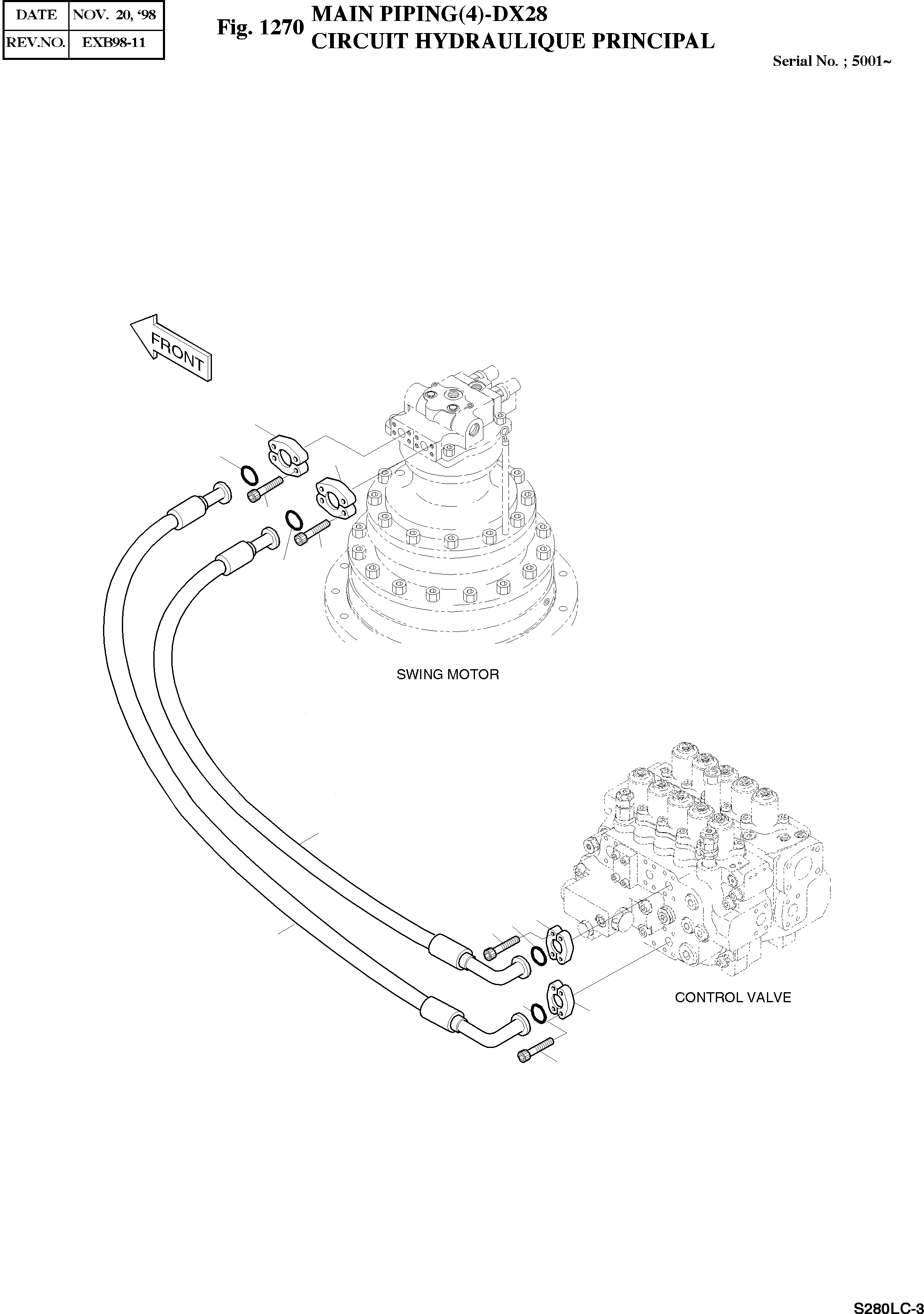

Запчасти Doosan Daewoo MAIN PIPING(4)-DX28 BODY PARTS

-

2400-1541

MAIN PIPING

SERIAL: 5001-5674

-2шт.

-

2400-1541A

MAIN PIPING

SERIAL: 5675

-2шт.

21

2184-1100D39

HOSE 3/4"-620L

desc: TUYAU FLEXIBLE

1шт.

22

2184-1100D40

HOSE 3/4"-650L

desc: TUYAU FLEXIBLE

1шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

30

2180-1026D2

O-RING SAE3/4"

desc: JOINT TORIQUE

4шт.

31

2181-9079

FLANGE;SPLIT 3/4"

desc: FLASQUE EN DEUX PARTIES

8шт.
