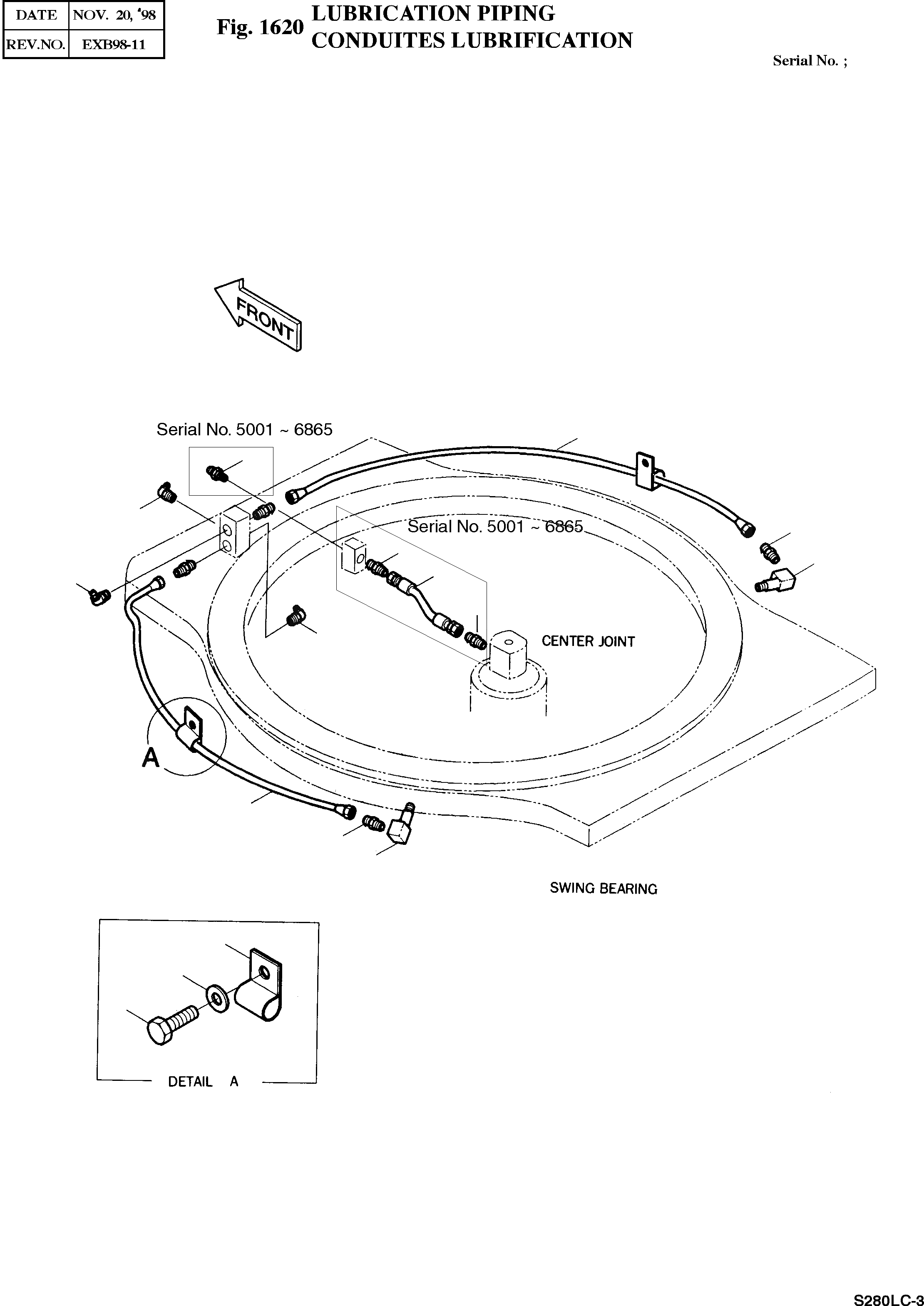

Запчасти Doosan Daewoo LUBRICATION PIPING BODY PARTS

-

2400-1452

LUBRICATION PIPING

SC: D

-2шт.

1

2182-1365

PIPE

desc: CONDUITE

1шт.

2

2182-1366

PIPE

desc: CONDUITE

1шт.

3

2184-1026D59

HOSE PF1/4X430L

SERIAL: 5001-6674

1шт.

3

2184-1026D288

HOSE PF1/4X400L

SERIAL: 6675-6865

1шт.

4

2181-1528A

ELBOW PF1/8XPT1/8

desc: COUDE

2шт.

5

2181-1544

ADAPTER M14XPT1/8

desc: RACCORD ADAPTATEUR

4шт.

6

2124-1027D2

CLAMP;PIPE

desc: CLIP DE FIXATION

2шт.

7

2181-4112

ADAPTER PT1/8XPF1/4

SERIAL: 5001-6865

2шт.

8

S0504403

BOLT M6X1.0X12

desc: BOULON A 6 PANS

2шт.

9

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

10

S6710042

FITTING;GREASE PT1/8

SERIAL: 5001-6865

1шт.

11

S6710102

FITTING;GREASE PT1/8

desc: GRAISSEUR

1шт.

12

S6710152

FITTING;GREASE PT1/8

desc: GRAISSEUR

2шт.
