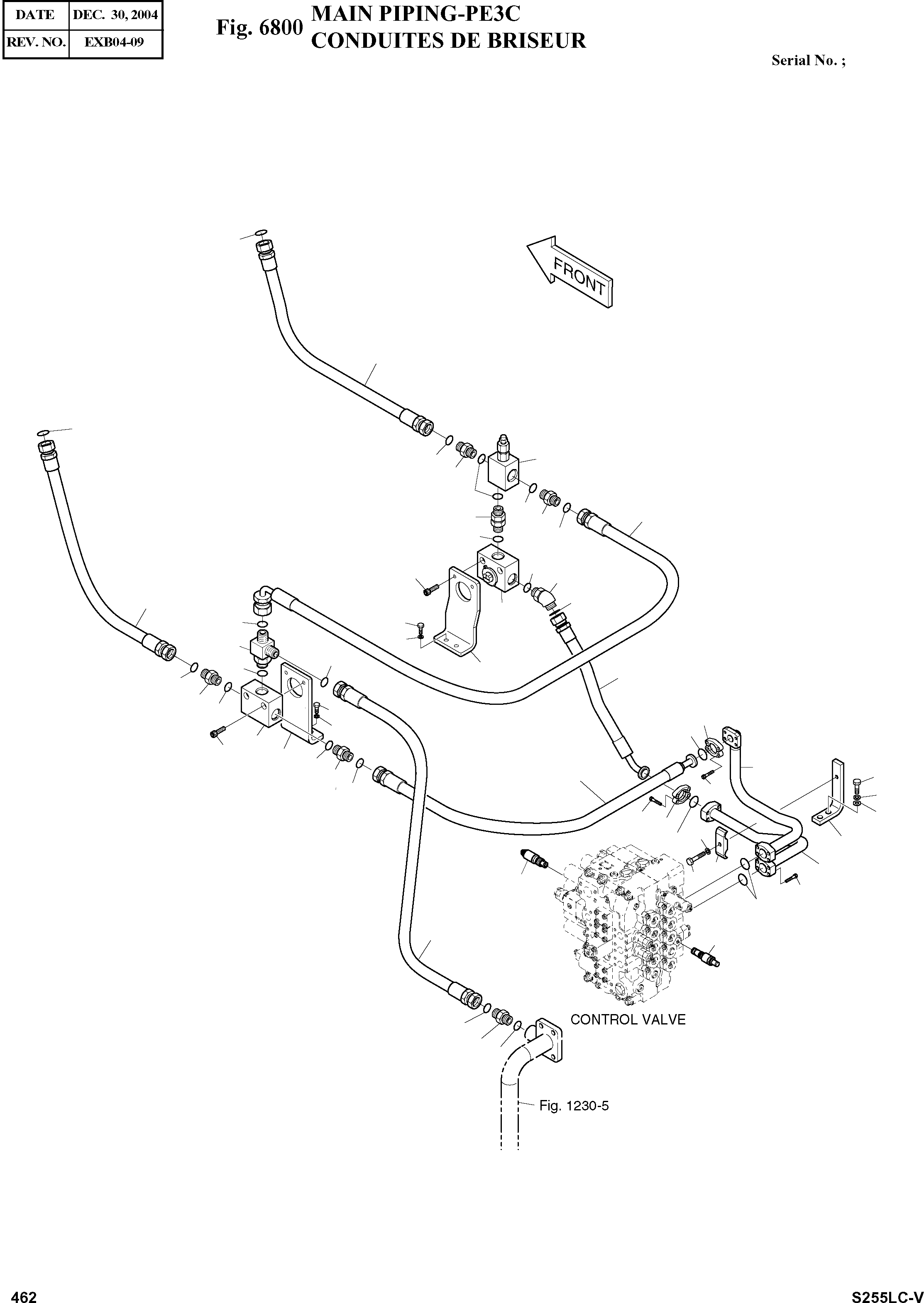

Запчасти Doosan Daewoo MAIN PIPING-PE3C OPTION PARTS

-

K1002715F1

MAIN PIPING-PE3C

SC: D

-2шт.

1

140-01231A

PIPE

desc: TUYAU

1шт.

2

140-01252A

PIPE

desc: TUYAU

1шт.

3

2420-9627B

VALVE;RELIEF

desc: VANNE

1шт.

4

K1002695

VALVE;SWITCH

desc: VANNE

2шт.

5

DS2017040

HOSE 590L

desc: TUYAU FLEXIBLE

1шт.

6

DS2011328

HOSE 1250L

desc: TUYAU FLEXIBLE

1шт.

7

DS2016015

HOSE 1000L

desc: TUYAU FLEXIBLE

1шт.

8

DS2011329

HOSE 1200L

desc: TUYAU FLEXIBLE

1шт.

9

DS2011398

HOSE 1030L

desc: TUYAU FLEXIBLE

1шт.

10

2180-1026D19

O-RING

desc: JONT TORIQUE

4шт.

11

S2212466

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6PANS

8шт.

12

2181-9078

FLANGE;SPLIT

desc: BRIDE

4шт.

13

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6PANS

8шт.

14

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

5шт.

15

195-02060

BRACKET

desc: SUPPORT

1шт.

16

2124-1025D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

17

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

18

S0561053

BOLT M12X1.75X65

desc: BOULON A 6PANS

1шт.

19

K1002696

BRACKET

desc: SUPPORT

1шт.

20

K1002697

BRACKET

desc: SUPPORT

1шт.

21

S0512253

BOLT M10X1.5X30

desc: BOULON A 6PANS

4шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

23

S8030161

O-RING

desc: JONT TORIQUE

10шт.

24

S8000291

O-RING

desc: JONT TORIQUE

9шт.

25

S0515453

BOLT M12X1.75X40

desc: BOULON A 6PANS

2шт.

26

S5010713

WASHER;PLAIN M12

desc: RONDELLE

2шт.

27

S2215763

BOLT M12X1.75X55

SERIAL: 1001-1275

4шт.

27

S2215766

BOLT M12X1.75X55

SERIAL: 1276

4шт.

28

DS2013544

HOSE 1300L

desc: TUYAU FLEXIBLE

1шт.

29

2181-2293D4

TEE

desc: TE

1шт.

30

2181-2816D2

ELBOW

desc: ECROU

1шт.

31

2181-2818

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

32

21113-40051

VALVE;OVERLOAD RELIEF

SERIAL: 1001-1275

2шт.

32

420-00258

VALVE;OVERLOAD RELIEF

SERIAL: 1276

2шт.
