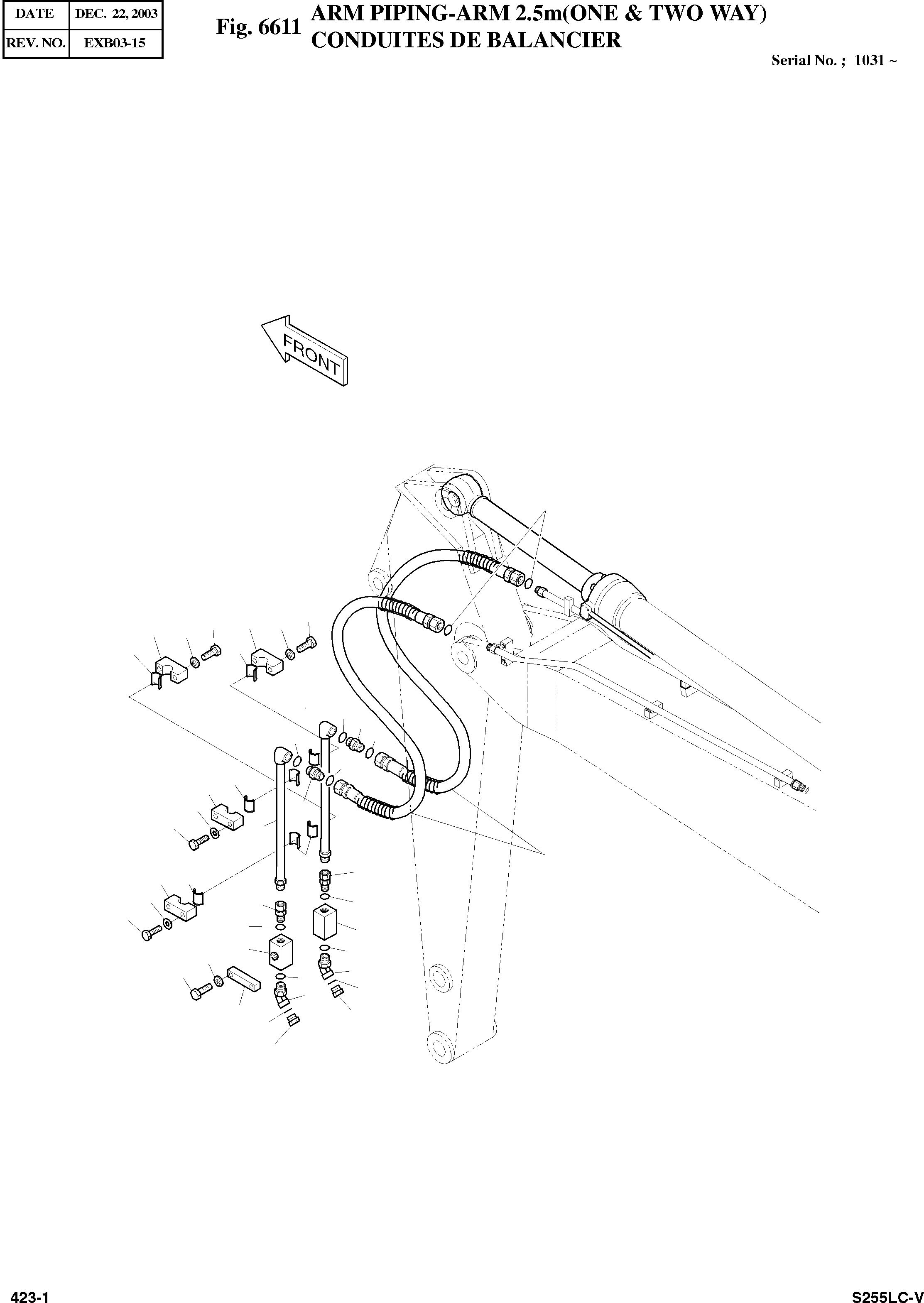

Запчасти Doosan Daewoo ARM PIPING-ARM 2.5M(ONE & TWO WAY) OPTION PARTS

-

400-00407

ARM PIPING;ONE & TWO WAY

SERIAL: 1031

-2шт.

1

140-00567A

PIPE

desc: CONDUITE

2шт.

2

2184-1196D90

HOSE

desc: TUYAU FLEXIBLE

2шт.

3

S8000381

O-RING

desc: JOINT TORIQUE

6шт.

4

2180-1026D37

O-RING

desc: JOINT TORIQUE

8шт.

5

2420-9631A

VALVE;STOP

desc: VANNE

2шт.

6

124-00170

CLAMP

desc: COLLIER

2шт.

7

2124-1693

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.

8

2161-2505

RUBBER

desc: CAOUTCHOUC

8шт.

9

2181-2566D9

ADAPTER

desc: RACCORD ADAPTEUR

2шт.

10

2181-4133D35

ADAPTER

desc: RACCORD ADAPTEUR

2шт.

11

2181-2816D3

ELBOW

desc: COUDE

2шт.

12

2181-2817D3

CAP

desc: CHAPEAU

2шт.

13

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

8шт.

14

S0566053

BOLT M12X2.0X90

desc: BOULON A 6 PANS

4шт.

15

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

16

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.
