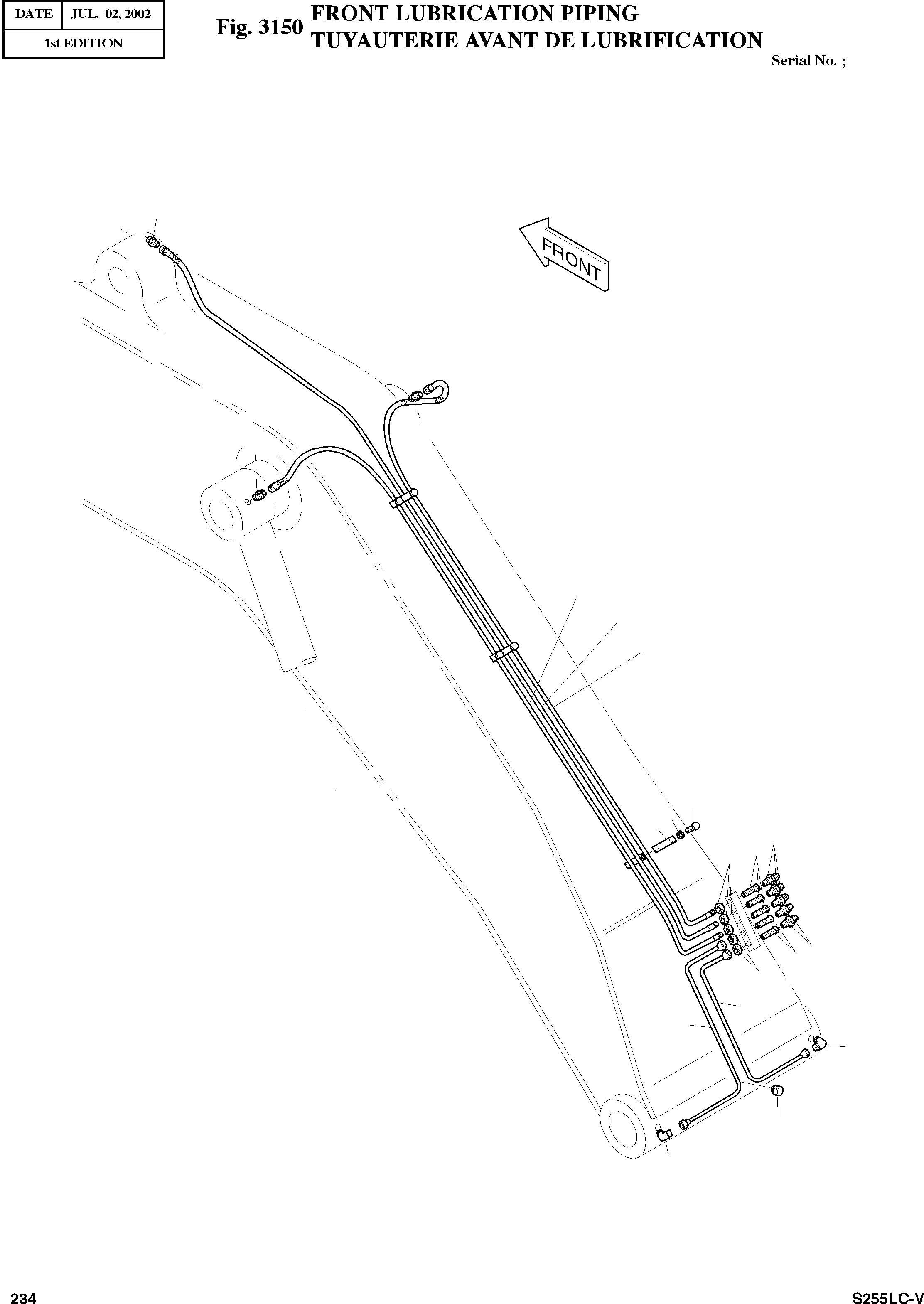

Запчасти Doosan Daewoo FRONT LUBRICATION PIPING FRONT PARTS

-

400-00085A

LUBRICATION PIPING

SC: D

-2шт.

1

2181-1925

ELBOW PT1/8-M14X1.5

desc: COUDE

2шт.

2

S6710041

NIPPLE;GREASE

desc: GRAISSEUR

5шт.

3

181-00103

REDUCER

desc: REDUCTEUR

3шт.

4

121-00006

NUT

desc: ECROU

3шт.

5

2184-1045D131

HOSE PF1/4-2700L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1045D126

HOSE PF1/4-2950L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1045D127

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

8

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

6шт.

9

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

10

124-00014

CLAMP;PIPE

desc: ATTACHE DE TUYAU

3шт.

11

2181-1110D30

ADAPTER

desc: RACCORD

3шт.

12

S3524403

SCREW;SET

desc: VIS

1шт.

13

181-00525

REDUCER PT1/8-M14X1.5

desc: REDUCTEUR

2шт.

14

S4032833

NUT M14X1.5

desc: ECROU

2шт.

15

140-00766

PIPE

desc: TUYAU

1шт.

16

140-00767

PIPE

desc: TUYAU

1шт.
