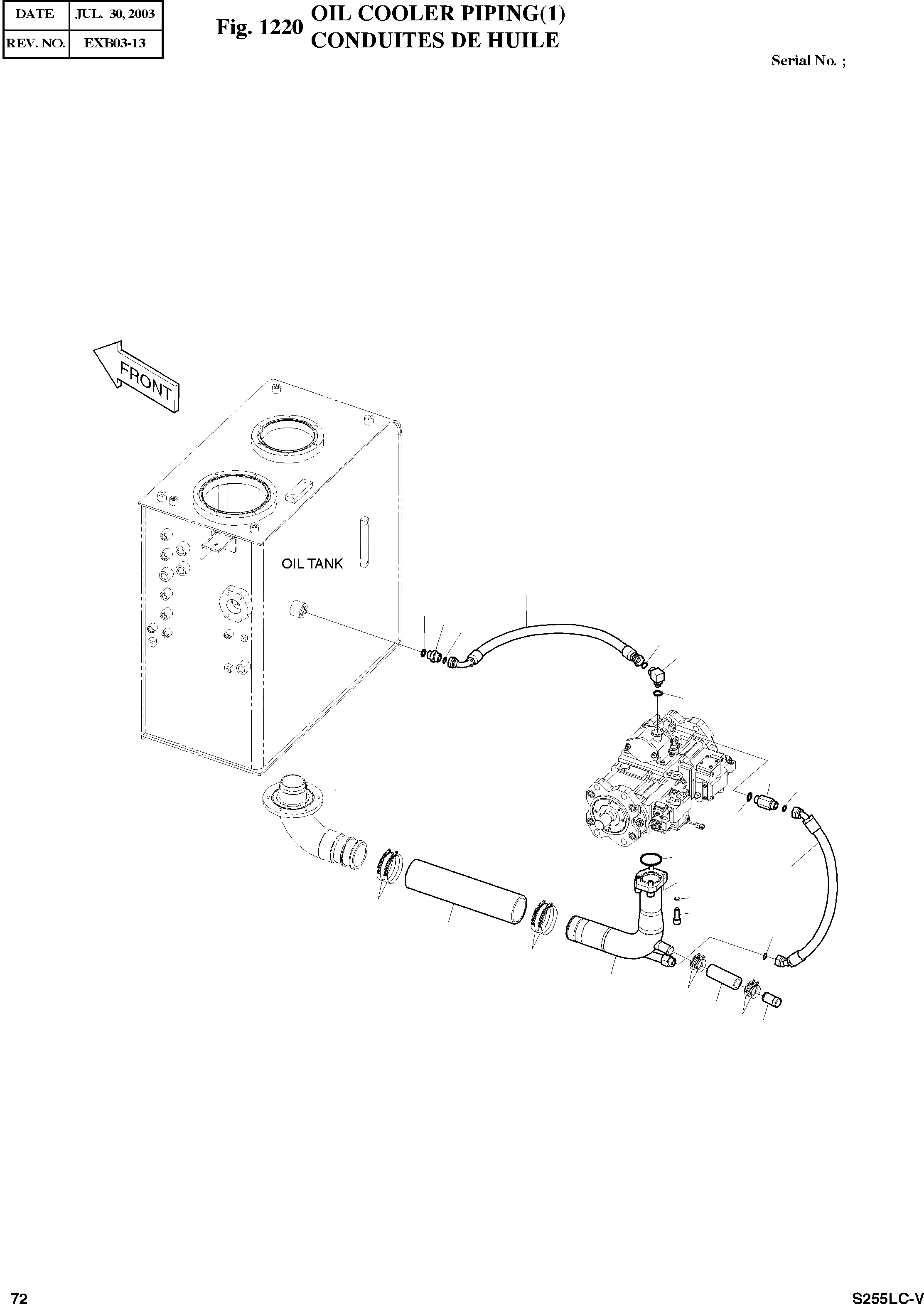

Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

-

400-00927A

OIL COOLER PIPING

SC: D

-2шт.

1

140-01168B

PIPE;SUCTION

desc: CONDUITE

1шт.

6

2185-1002D139

HOSE

SERIAL: 1001-1040

1шт.

6

2185-1737D9

HOSE

SERIAL: 1041

1шт.

7

S8470112

CLAMP

desc: COLLIER

4шт.

13

DS2020015

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

2184-1197D34

HOSE

desc: TUYAU FLEXIBLE

1шт.

20

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

22

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

26

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

27

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

30

2181-4133D13

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

31

2181-2627D1

ADAPTER

desc: RACCORD ADAPTEUR

1шт.

34

2181-2294D2

ELBOW

desc: COUDE

1шт.

39

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

4шт.

41

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

50

S8470044

CLAMP;HOSE

desc: JOINT TORIQUE

4шт.

51

2185-1002D87

HOSE

desc: RACCORD ADAPTEUR

1шт.

52

2182-1815

PIPE

desc: COUDE

1шт.
