Запчасти Doosan Daewoo PILOT PIPING(7) UPPER STRUCTURE

-

400-00956C

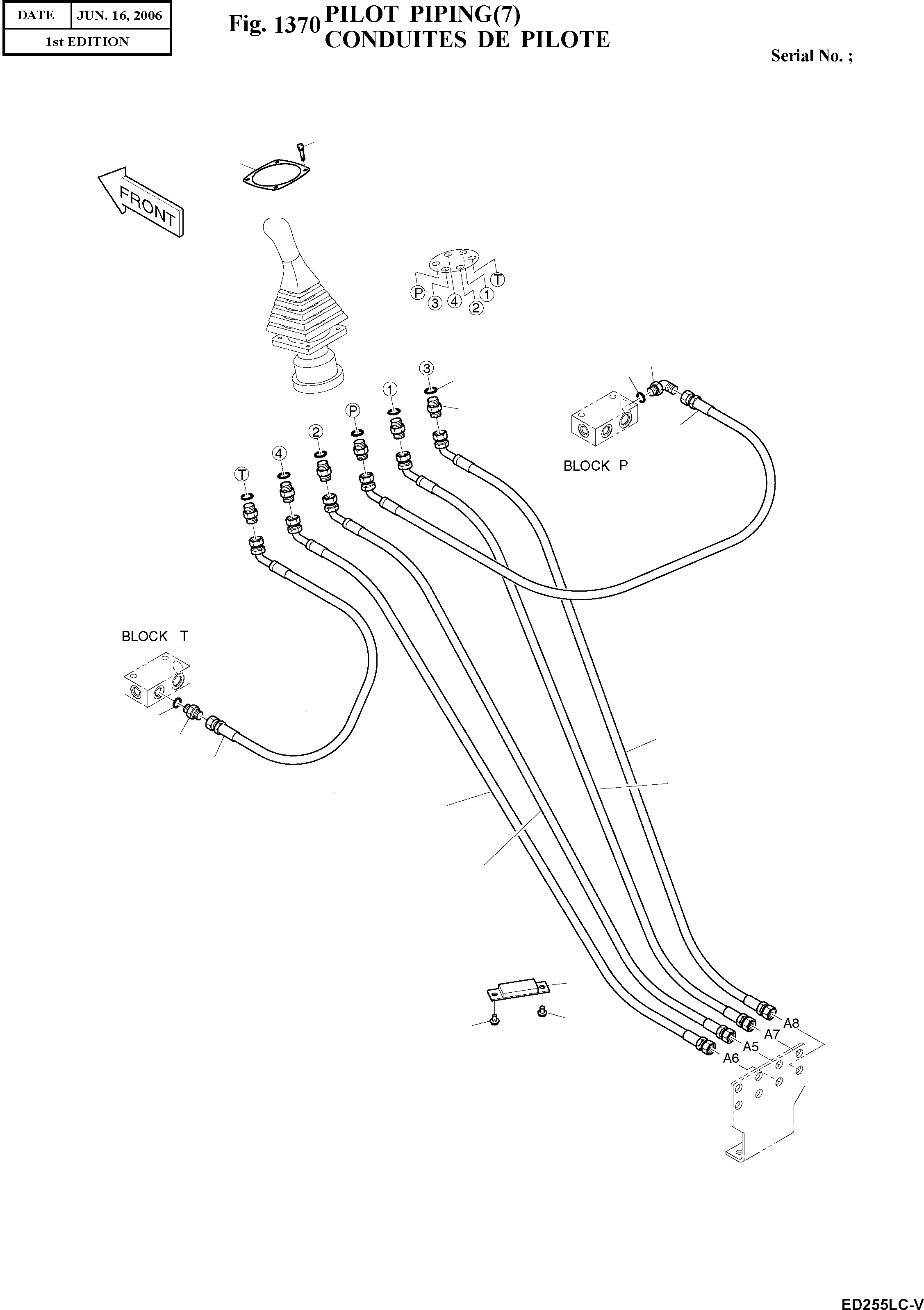

PILOT PIPING(7)

SC: D

-2шт.

3

S2205066

BOLT;SOCKET M6X1X25

desc: BOULON A 6 PANS CREUX

4шт.

11

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

15

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTEUR

1шт.

17

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTEUR

6шт.

21

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

22

2621-2752

PLATE

desc: PLAQUE

1шт.

23

124-00226A

CLAMP;HOSE

desc: COLLIER

1шт.

31

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1060D147

HOSE PF3/8-2200L

desc: TUYAU FLEXIBLE

1шт.

45

120-00276

BOLT;SET M8X1.25X12

desc: BOULON A 6 PANS

2шт.
