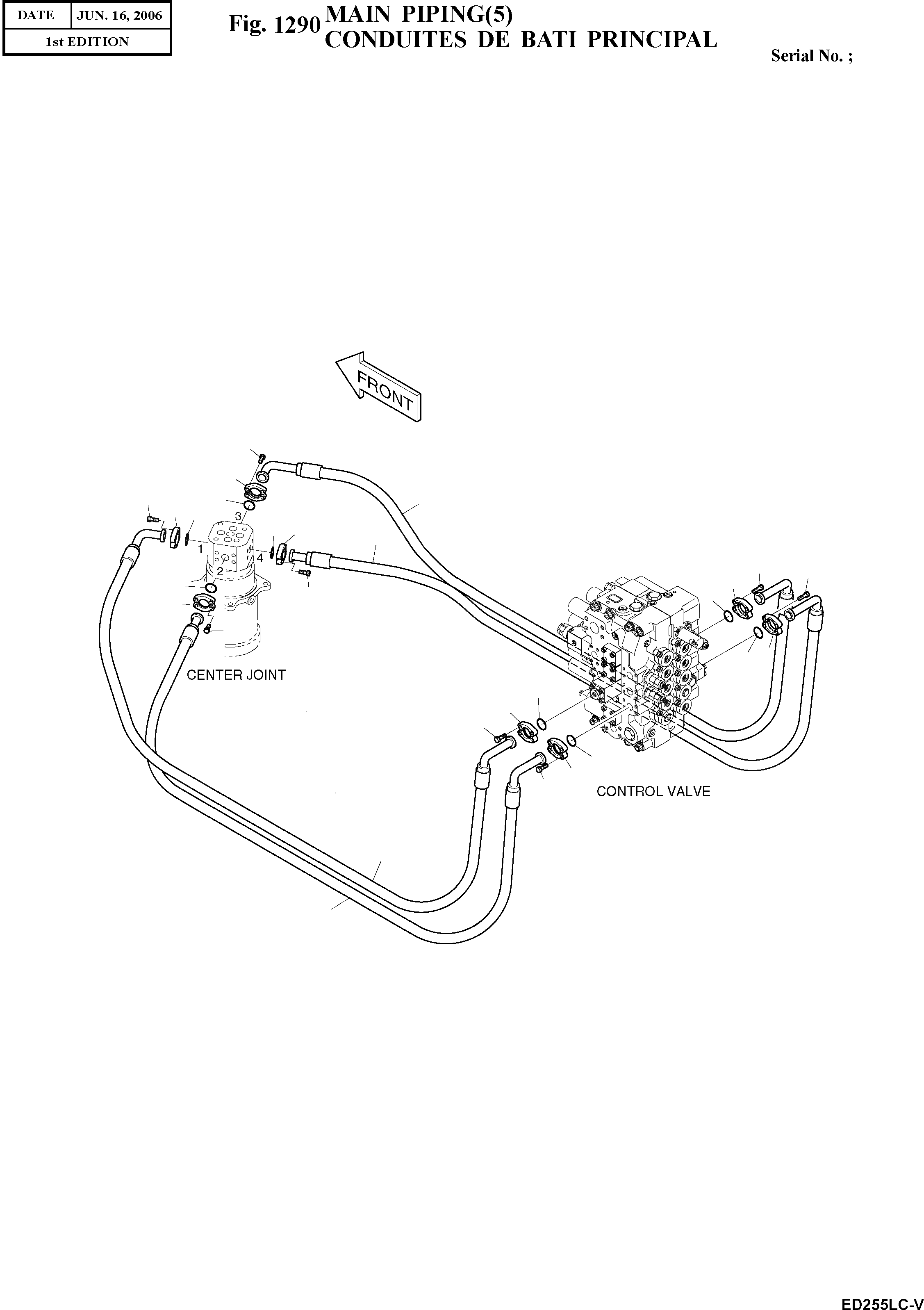

Запчасти Doosan Daewoo MAIN PIPING(5) UPPER STRUCTURE

-

400-00939A

MAIN PIPING

SC: D

-2шт.

12

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

13

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

15

2181-9079

FLANGE;SPLIT

desc: BRIDE

8шт.

17

2181-9078

FLANGE

desc: BRIDE

8шт.

21

S2212066

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

16шт.

22

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

37

DS2045306

HOSE PF3/4-1550L

desc: TUYAU FLEXIBLE

1шт.

38

DS2040339

HOSE PF3/4-1600L

desc: TUYAU FLEXIBLE

1шт.

39

DS2045312

HOSE PF3/4-1450L

desc: TUYAU FLEXIBLE

1шт.

40

DS2040345

HOSE PF3/4-1550L

desc: TUYAU FLEXIBLE

1шт.
