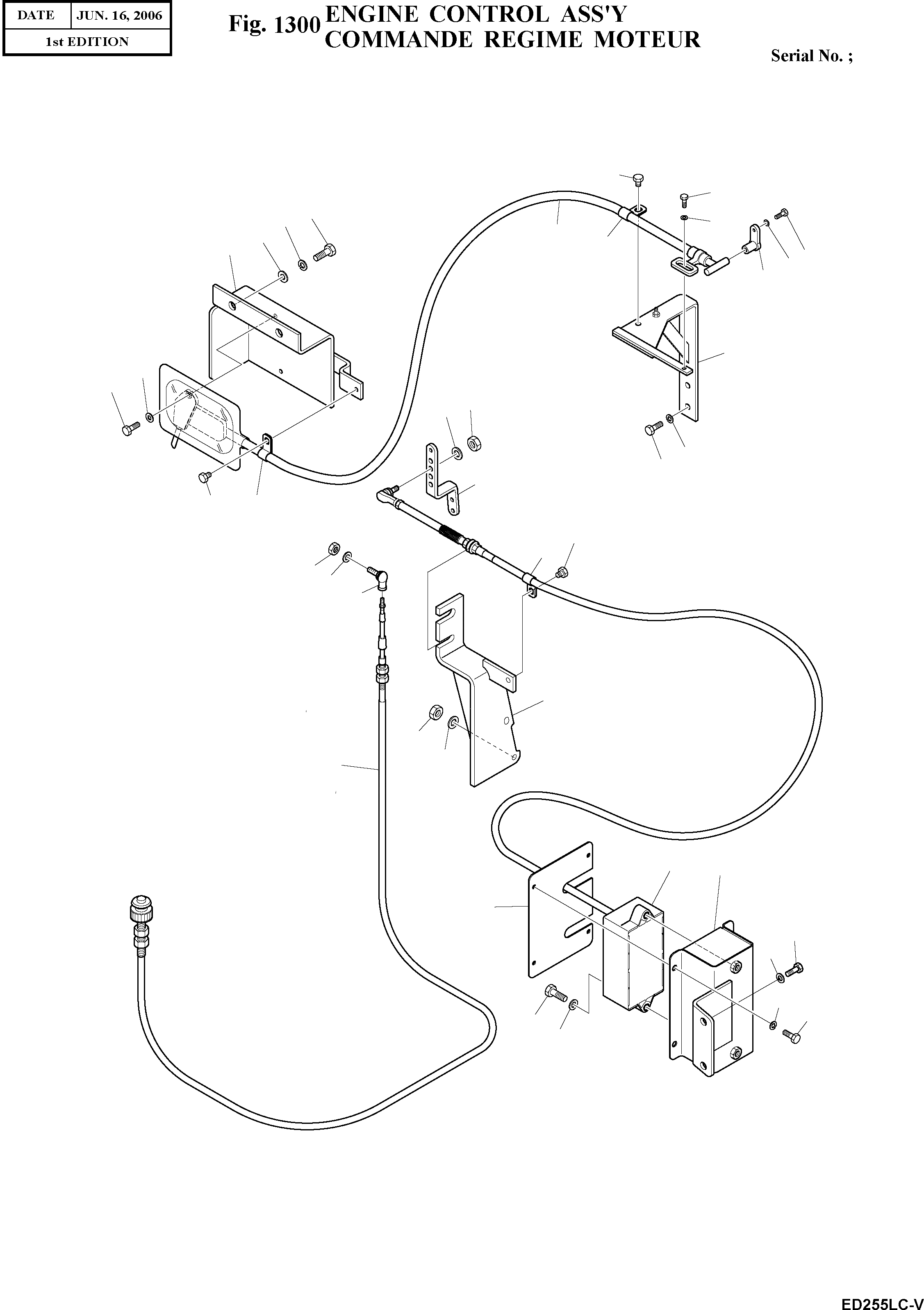

Запчасти Doosan Daewoo ENGINE CONTROL ASSY UPPER STRUCTURE

-

201-00118

ENGINE CONTROL ASSY

SC: D

-2шт.

1

2197-1777A

BRACKET

desc: SUPPORT

1шт.

2

S0711853

BOLT M10X1.25X20

desc: RONDELLE

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

4

S0504553

BOLT M6X1.0X14

desc: BOULON A 6 PANS

3шт.

5

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

6

2150-1122

HOOK;CABLE

desc: CROCHET

1шт.

7

133-00172

LEVER

desc: RONDELLE ELASTIQUE

1шт.

8

S4012533

NUT

desc: ECROU

3шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

9шт.

10

195-02079

BRACKET

desc: SUPPORT

1шт.

11

2138-9006B

JOINT;BALL

desc: JOINT SPHERIQUE

1шт.

12

523-00006

ACTUATOR;E/G CONTROL

desc: SUPPORT

1шт.

13

2523-9016

MOTOR;E/G STOP

desc: BOULON A 6 PANS

1шт.

14

621-01909

PLATE

desc: BOULON A 6 PANS

1шт.

15

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

6шт.

16

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

2шт.

17

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.

18

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

19

195-02087

BRACKET

desc: SUPPORT

1шт.

20

120-00276

BOLT M8X1.25X12

desc: BOULON A 6 PANS

3шт.

21

2124-1509D10

CLIP

desc: ATTACHE

2шт.

24

2139-6055D16

CABLE:CONTROL

desc: CABLE

1шт.

25

2124-1509D1

CLIP

desc: ATTACHE

1шт.

26

S4012233

NUT M5X0.8

desc: ECROU

1шт.

27

S5102203

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

28

195-02090

BRACKET

desc: SUPPORT

1шт.

29

S0509353

BOLT M8X1.25X35

desc: BOULON A 6 PANS

2шт.

30

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

31

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.
