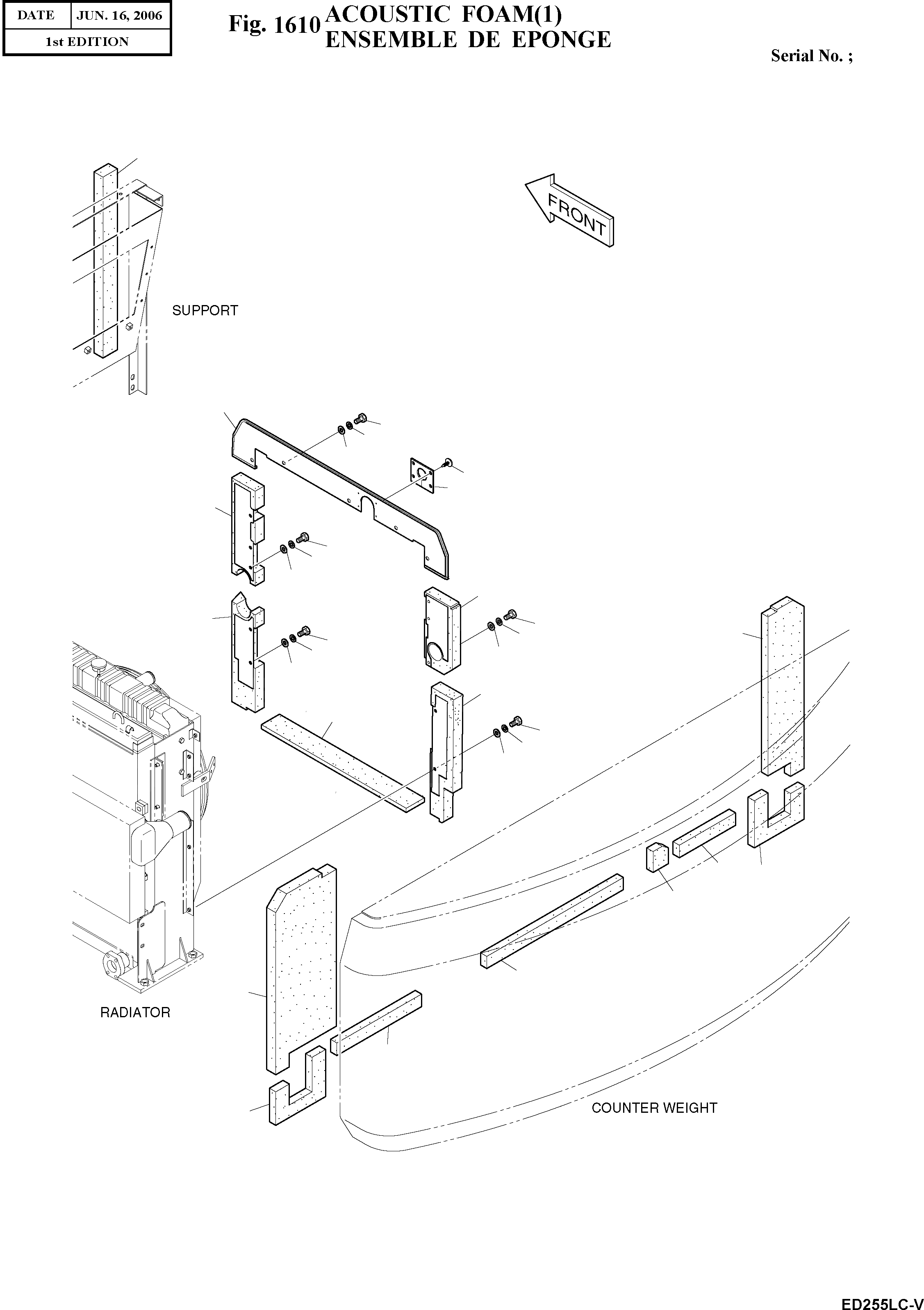

Запчасти Doosan Daewoo ACOUSTIC FOAM(1) UPPER STRUCTURE

-

161-00451A

ACOUSTIC FOAM ASS'Y

SC: D

-2шт.

1

161-00304

FOAM;POLYURETHANE

desc: EPONGE

1шт.

2

161-00305

FOAM;POLYURETHANE

desc: EPONGE

1шт.

3

161-00306

FOAM;POLYURETHANE

desc: EPONGE

1шт.

4

161-00452

FOAM;POLYURETHANE

desc: EPONGE

1шт.

5

621-02099A

COVER

desc: COUVERCLE

1шт.

6

621-02100A

COVER

desc: COUVERCLE

1шт.

7

161-00438

FOAM;POLYURETHANE

desc: EPONGE

1шт.

8

2161-2153A

FOAM;POLYURETHANE

desc: EPONGE

1шт.

9

161-00453A

FOAM;POLYURETHANE

desc: EPONGE

1шт.

10

161-00308A

FOAM;POLYURETHANE

desc: EPONGE

1шт.

11

161-00309

FOAM;POLYURETHANE

desc: EPONGE

1шт.

13

161-00393

FOAM;POLYURETHANE

desc: EPONGE

1шт.

14

621-02101B

COVER

desc: COUVERCLE

1шт.

15

621-02098A

COVER

desc: COUVERCLE

1шт.

16

161-00312B

RUBBER

desc: CAOUTCHOUC

1шт.

17

621-02097A

COVER

desc: CAOUTCHOUC

1шт.

18

124-00070

CLIP;TREE

desc: ATTACHE

4шт.

19

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

15шт.

20

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

15шт.

21

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

10шт.

22

2114-1058D29

WASHER

desc: RONDELLE

5шт.
