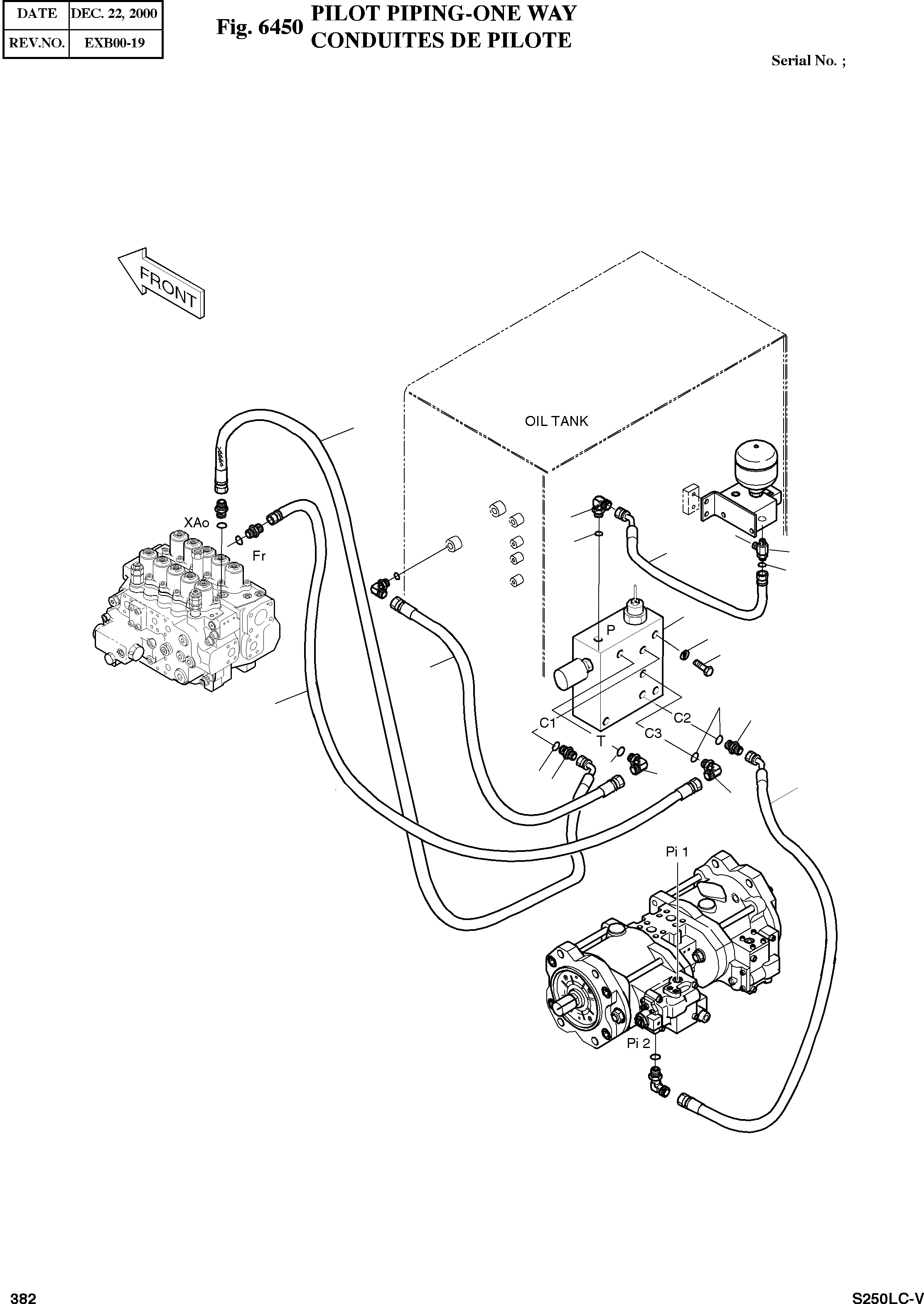

Запчасти Doosan Daewoo PILOT PIPING-ONE WAY OPTION PARTS

-

400-00356

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

2420-9227A

VALVE;BREAKER

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

6

2181-1702D4

ELBOW

desc: COUDE

3шт.

7

2181-2375D5

TEE

desc: TE

1шт.

8

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

9

2184-1060D48

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1045D148

HOSE PF1/4-1800L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D153

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D54

HOSE PF1/4-1010L

desc: TUYAU FLEXIBLE

1шт.
