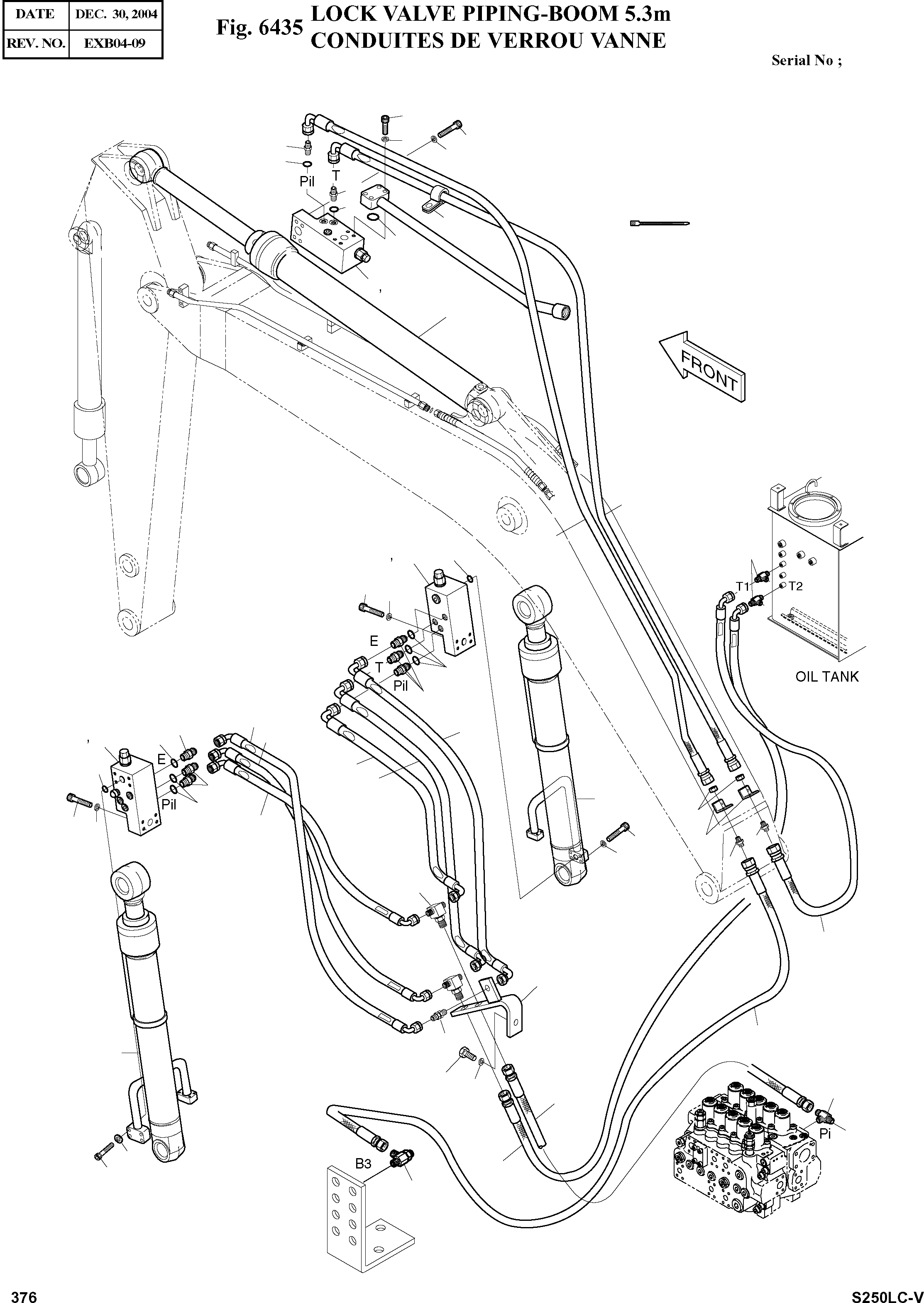

Запчасти Doosan Daewoo LOCK VALVE PIPING-BOOM 5.3M OPTION PARTS

-

400-00421

LOCK VALVE PIPING

SC: D

-2шт.

1

420-00004A

VALVE;LOCK

desc: VANNE

1шт.

1A

K9000999

SEAL KIT

desc: . KIT DE JOINT

1шт.

2

S2215761

BOLT;SOCKET M12X1.75X55

SERIAL: 1001-1284

4шт.

2

S2215766

BOLT;SOCKET M12X1.75X55

SERIAL: 1285

4шт.

3

S5110701

WASHER;SPRING

SERIAL: 1001-1284

8шт.

3

S5110703

WASHER;SPRING

SERIAL: 1285

8шт.

4

2124-1084D2

CLIP;BAND

desc: ATTACHE

25шт.

5

2184-1046D251

HOSE PF1/4-5100L

desc: TUYAU FLEXIBLE

2шт.

6

181-00086D2

TEE;CONECTOR

desc: TE

1шт.

7

2124-1353D19

CLIP

desc: CLIP

1шт.

8

181-00078D5

ADAPTER PF1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

9

197-00021

BRACKET

desc: SUPPORT

2шт.

10

2181-1126D38

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

6шт.

11

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

12

2184-1046D283

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D284

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D284

HOSE PF3/8-1800L

desc: TUYAU FLEXIBLE

1шт.

15

197-00022

SUPPORT

desc: SUPPORT

1шт.

16

181-00020

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

17

181-00008

TEE

desc: TE

2шт.

18

2184-1076D147

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

19

2184-1062D84

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

20

2184-1062D85

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.

21

420-00003A

VALVE;LOCK

SERIAL: 1001-1220

2шт.

21

420-00226

VALVE;LOCK

SERIAL: 1221

2шт.

21A

K9000998

SEAL KIT

desc: . KIT DE JOINT

1шт.

22

S5110611

WASHER;SPRING M10

SERIAL: 1001-1284

16шт.

22

S5110613

WASHER;SPRING M10

SERIAL: 1285

16шт.

23

S2212661

BOLT;SOCKET M10X1.5X50

SERIAL: 1001-1220

16шт.

23

S2212766

BOLT;SOCKET M10X1.5X55

SERIAL: 1221

16шт.

24

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

1шт.

25

2181-2375D6

TEE 2XPF1/4-PF3/8

desc: TE

2шт.

26

2181-2281D21

TEE PFO1/4-PF1/4-PF3/8

desc: TE

1шт.

27

S8000341

O-RING

desc: JOINT TORIQUE

1шт.

28

S8000281

O-RING

desc: JOINT TORIQUE

2шт.

29

440-00186

CYLINDER;BOOM(L.H)

SERIAL: 1001-1155

1шт.

29

440-00186A

CYLINDER;BOOM(L.H)

SERIAL: 1156-1187

1шт.

29

440-00186B

CYLINDER;BOOM(L.H)

SERIAL: 1188-1220

1шт.

29

440-00186C

CYLINDER;BOOM(L.H)

SERIAL: 1221

1шт.

30

440-00187

CYLINDER;BOOM(R.H)

SERIAL: 1001-1148

1шт.

30

440-00187A

CYLINDER;BOOM(R.H)

SERIAL: 1156-1187

1шт.

30

440-00187B

CYLINDER;BOOM(R.H)

SERIAL: 1188-1220

1шт.

30

440-00187C

CYLINDER;BOOM(R.H)

SERIAL: 1221

1шт.

31

440-00188

CYLINDER;ARM

SERIAL: 1001-1141

1шт.

31

440-00188A

CYLINDER;ARM

SERIAL: 1142

1шт.

32

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

1шт.

33

S2215861

BOLT;SOCKET M12X1.75X60

SERIAL: 1001-1284

4шт.

33

S2215866

BOLT;SOCKET M12X1.75X60

SERIAL: 1285

4шт.

34

2181-1126D14

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

35

2184-1045D215

HOSE PF3/8-2100L

desc: TUYAU FLEXIBLE

1шт.

36

121-00010D1

NUT PF3/8

desc: ECROU

2шт.
