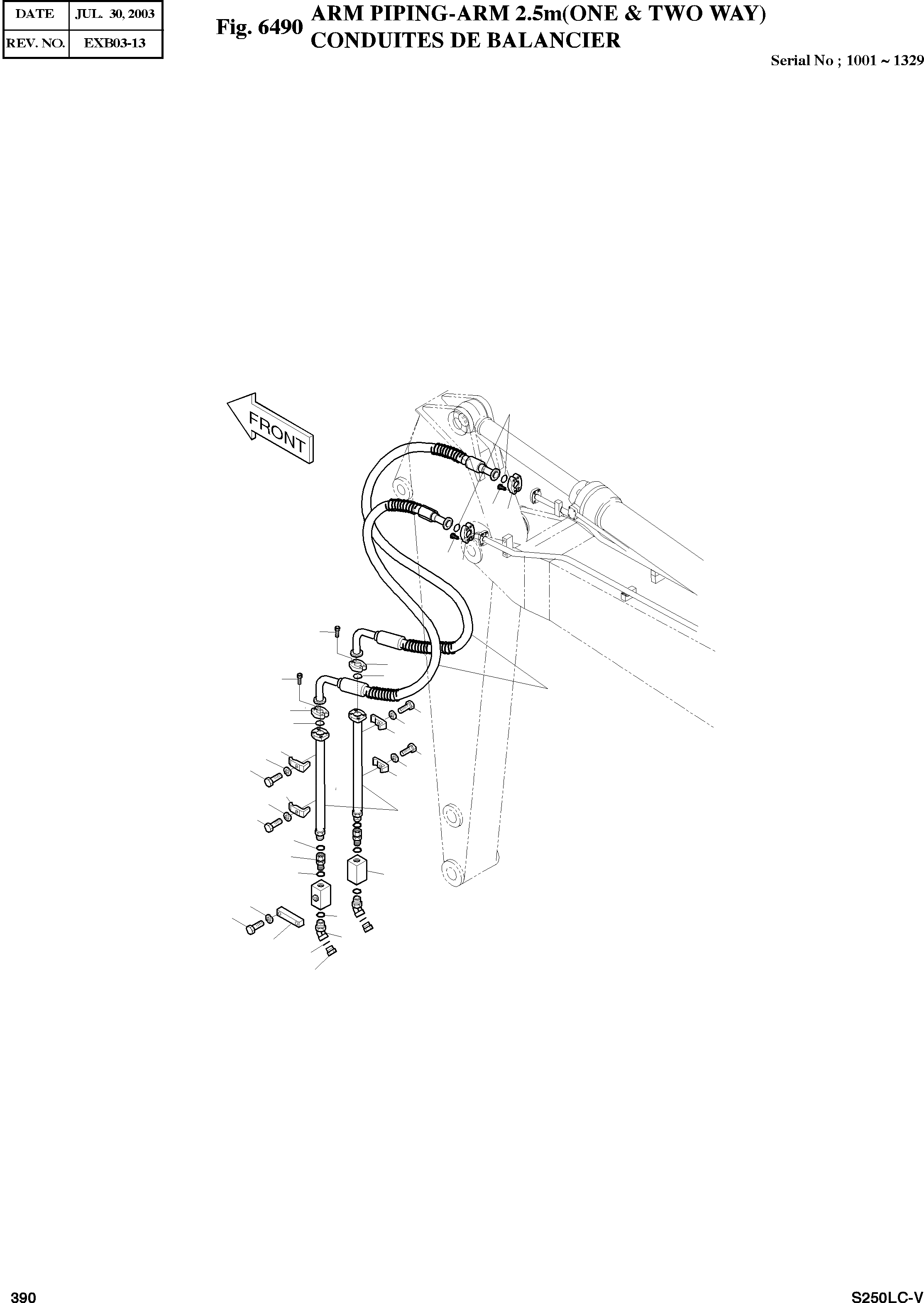

Запчасти Doosan Daewoo ARM PIPING-ARM 2.5M(ONE & TWO WAY) OPTION PARTS

-

400-00407

ARM PIPING;ONE & TWO WAY

SERIAL: 1001-1329

-2шт.

1

140-00567

PIPE

desc: TUYAU

2шт.

2

2184-1100D16

HOSE PF1-1750L

desc: TUYAU FLEXIBLE

2шт.

3

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

4

S8030161

O-RING

desc: JOINT TORIQUE

4шт.

5

2124-1026D3

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

6

S0560953

BOLT M12X1.75X60

desc: BOULON A 6 APNS

4шт.

7

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

8

2420-9628

VALVE;STOP

SERIAL: 1001-1180

2шт.

8

2420-9628A

VALVE;STOP

SERIAL: 1181

2шт.

9

2124-1695

CLAMP;STOP VALVE

desc: ATTACHE DE VANNE

2шт.

10

2181-2566D8

ADAPTER;UNION

desc: RACCORD ADAPTATEUR

2шт.

11

2181-2816D2

ELBOW

desc: ECROU

2шт.

12

2181-2817D2

CAP

desc: CHAPEAU

2шт.

13

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

4шт.

14

2181-9078

FLANGE;SPLIT

desc: BRIDE

8шт.

15

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1284

16шт.

15

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1285

16шт.

16

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.
