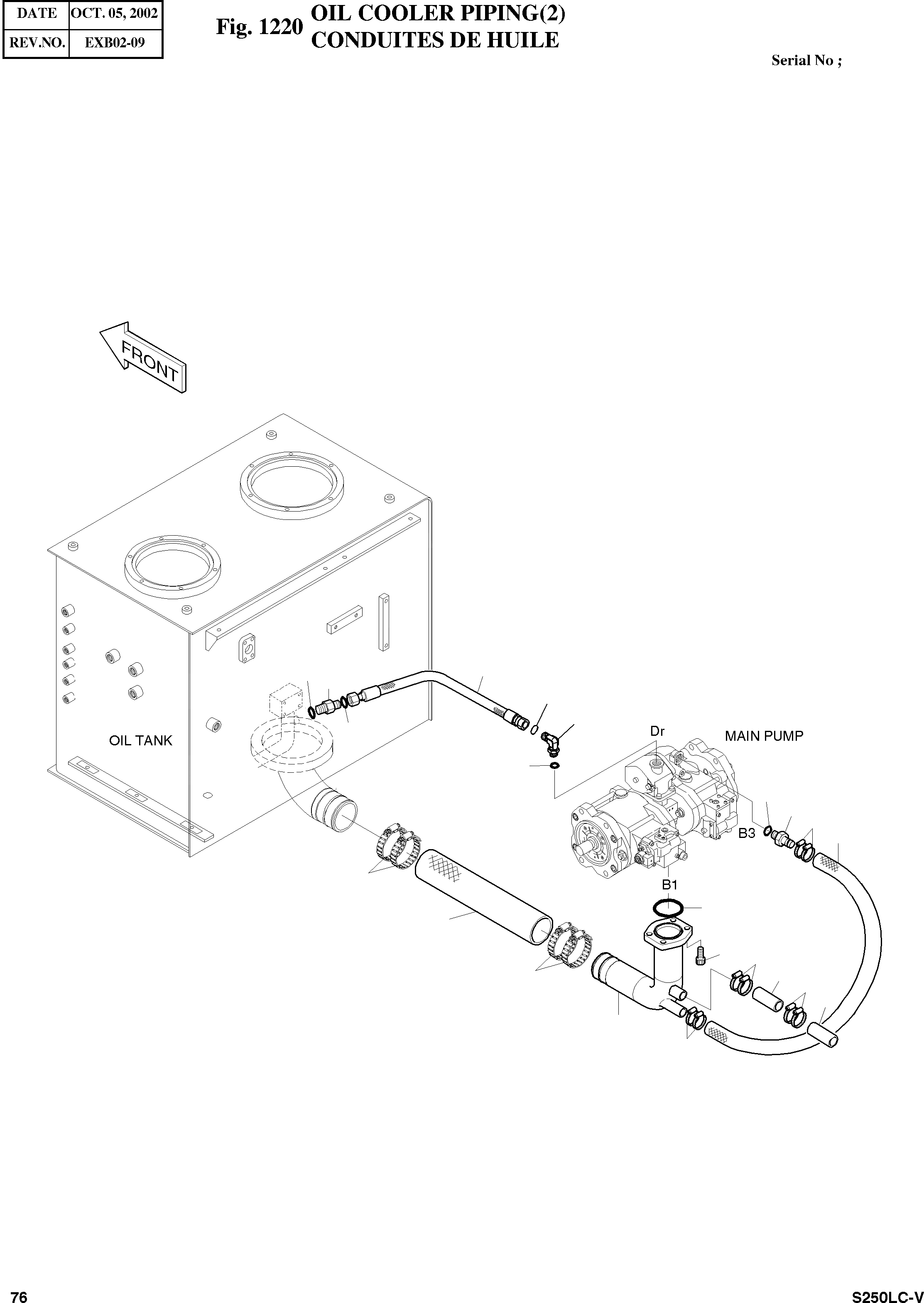

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

400-00067A

OIL COOLER PIPING

SC: D

-2шт.

1

140-00047A

PIPE;SUCTION

SERIAL: 1001-1160

1шт.

1

140-00047B

PIPE;SUCTION

SERIAL: 1161

1шт.

8

2185-1002D139

HOSE;SUCTION 440L

desc: TUYAU FLEXIBLE

1шт.

9

2185-1002D106

HOSE 1000L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1196D137

HOSE 720L

desc: TUYAU FLEXIBLE

1шт.

20

2181-2627D1

ADAPTER;ORFS

desc: RACCORD ADAPTATEUR

1шт.

21

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

22

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

23

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

30

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

31

S2215361

BOLT;SOCKET M12X1.75X35

SERIAL: 1001-1284

4шт.

31

S2215366

BOLT;SOCKET M12X1.75X35

SERIAL: 1285

4шт.

41

S8450082

CLAMP;HOSE

SERIAL: 1001-1313

4шт.

41

S8470112

CLAMP;HOSE

SERIAL: 1314

4шт.

50

2181-2693A

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

51

S8450035

CLAMP;HOSE

desc: COLLIER

8шт.

52

2181-2294D2

ELBOW

desc: COUDE

1шт.

54

2182-1815

PIPE

desc: TUYAU

1шт.

55

2185-1002D87

HOSE 125L

desc: TUYAU FLEXIBLE

1шт.
