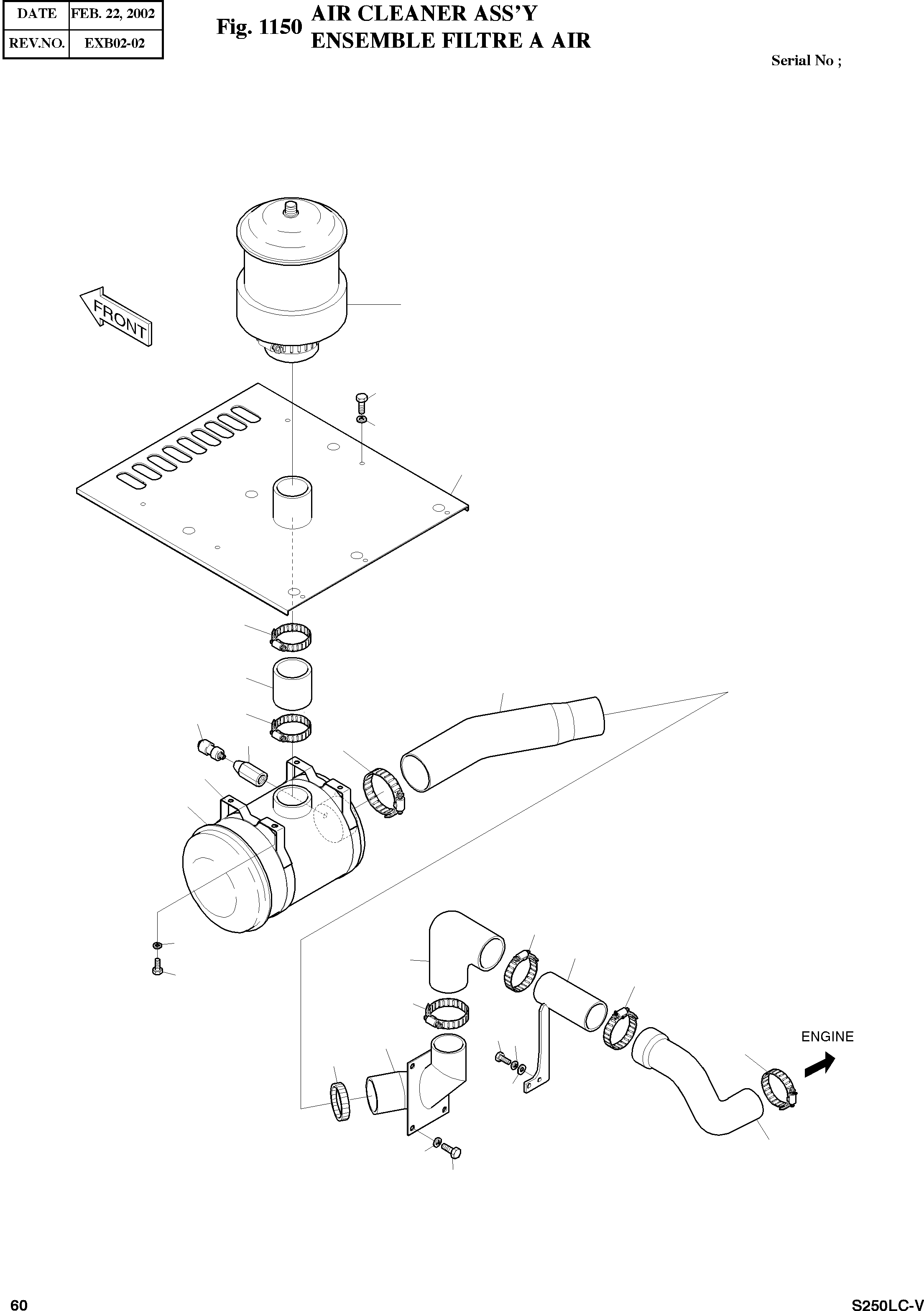

Запчасти Doosan Daewoo AIR CLEANER ASSY BODY PARTS

-

204-00002A

AIR CLEANER ASS'Y

SC: D

-2шт.

1

2204-2012A

AIR CLEANER

desc: FILTRE A AIR

1шт.

2

2124-1552

BAND;AIR CLEANER

SERIAL: 1001-1199

2шт.

2

2124-1552A

BAND;AIR CLEANER

SERIAL: 1200

2шт.

3

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

16шт.

4

S5010613

WASHER;PLAIN

desc: RONDELLE

6шт.

5

2185-1792A

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

6

185-00006A

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

7

185-00012A

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

8

2185-1658

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

9

2193-1385B

PIPE;AIR

desc: CONDUITE

1шт.

10

2193-1386A

PIPE;AIR

desc: CONDUITE

1шт.

11

S8450066

CLAMP;HOSE

desc: COLLIER

1шт.

12

621-00130A

COVER

desc: COUVERCLE

1шт.

13

2114-1058D10

WASHER;PLAIN

desc: RONDELLE PLATE

10шт.

14

S8450127

CLAMP;HOSE

desc: COLLIER

5шт.

15

2170-9005

INDICATOR;AIR CLEANER

desc: INDICATEUR

1шт.

16

2204-9032A

PRE-CLEANER

desc: PRE-CLEANER

1шт.

17

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

18

2181-2690

ADAPTER;FILTER

desc: ADAPTEUR

1шт.

19

S8450140

CLAMP;HOSE

desc: COLLIER

2шт.
